Powertrain Control Module (PCM) C175b

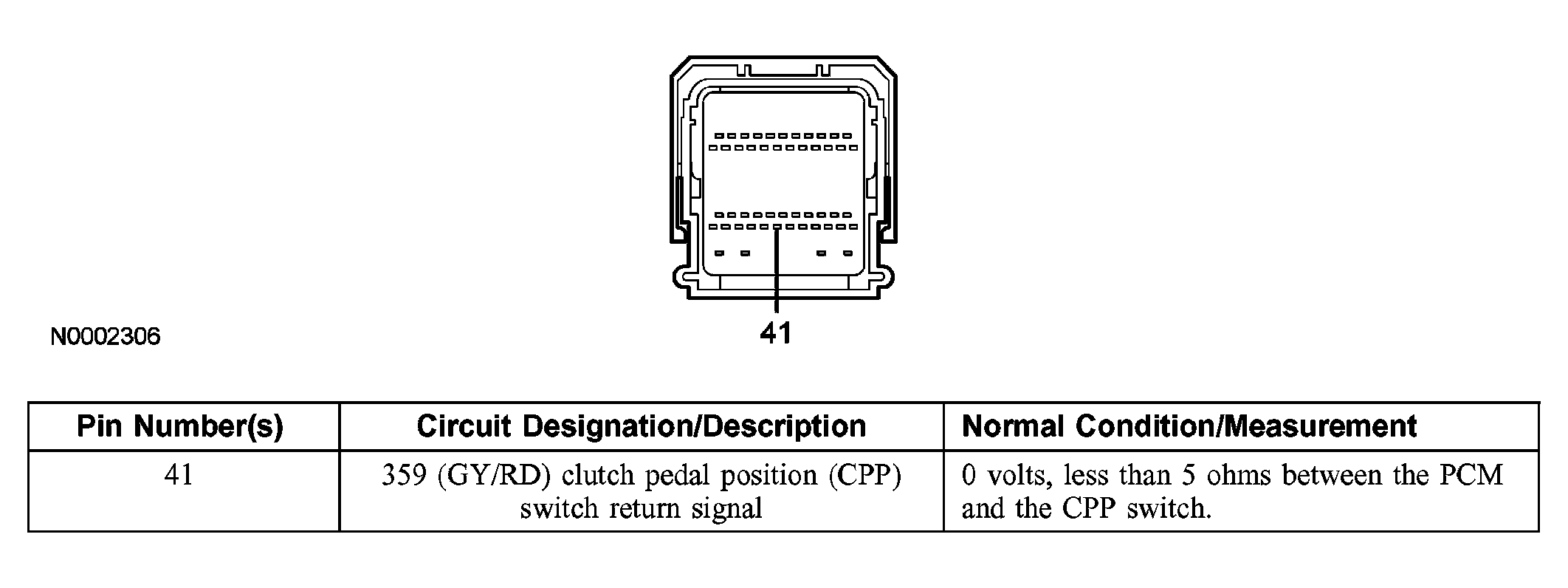

Fig 1: Connector Circuit Reference - Powertrain Control Module (PCM) C175b
Courtesy of FORD MOTOR CO.
