Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

  1. Inspect the new synchronizer shift ring and hub assembly for damage. Make sure they move freely.

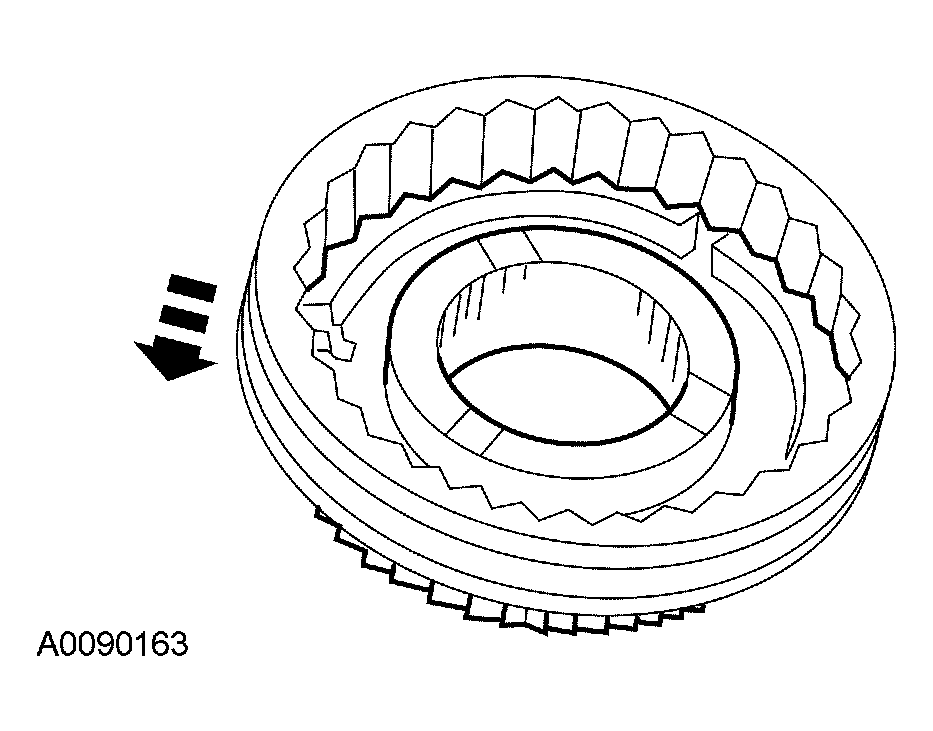

    Fig 1: Inspecting New Synchronizer Shift Ring And Hub Assembly
    G03901827Courtesy of FORD MOTOR CO.
  2. Install the 3 synchronizer keys.
    3. CAUTION: When assembling the synchronizer springs make sure the springs are offset from one another.
    Fig 2: Installing Synchronizer Springs
    G03901828Courtesy of FORD MOTOR CO.
  3. Install the synchronizer springs.
