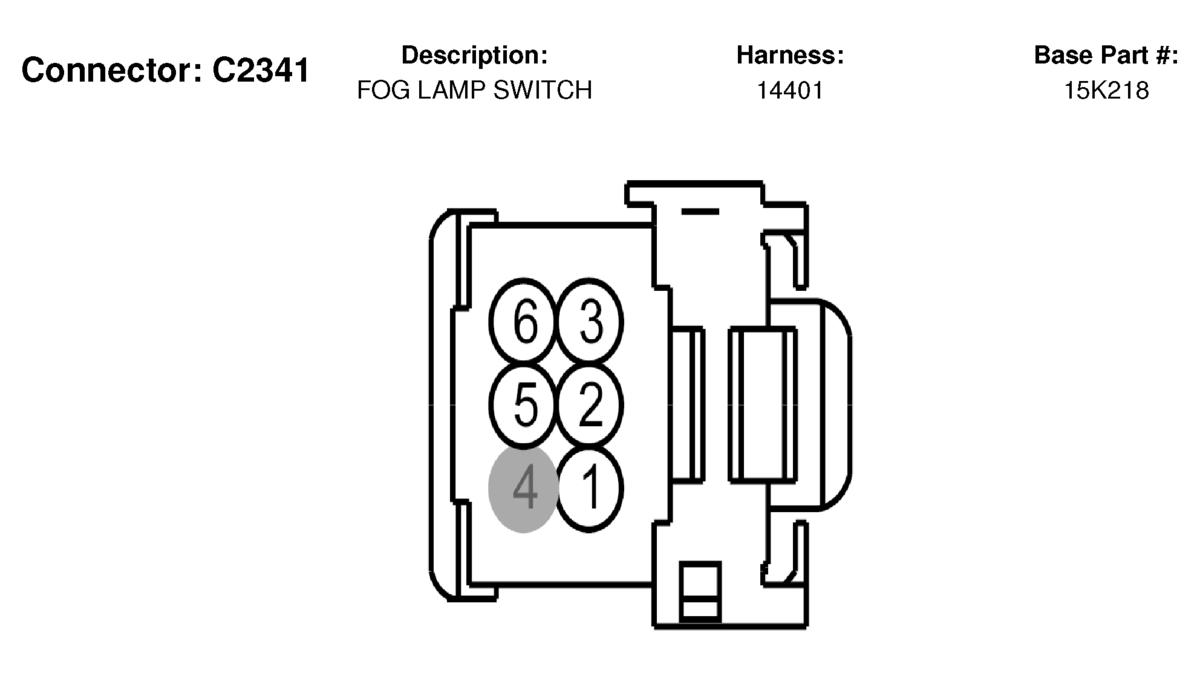

Fog Lamp Switch Connector End View (C2341)
Courtesy of FORD MOTOR CO. C2341 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
478 (TN-OG) |
18 |
Fog lamp relay output |
|
| 2 |
570 (BK-WH) |
20 |
Ground |
|
| 3 |
19 (LB-RD) |
20 |
Instrument illumination feed |
|
| 4 |
* |
* |
not used |
|
| 5 |
57 (BK) |
20 |
Ground |
|
| 6 |
1347 (DB-WH) |
22 |
Fog lamp switch signal |
|
