Gearshift Lever: Notes

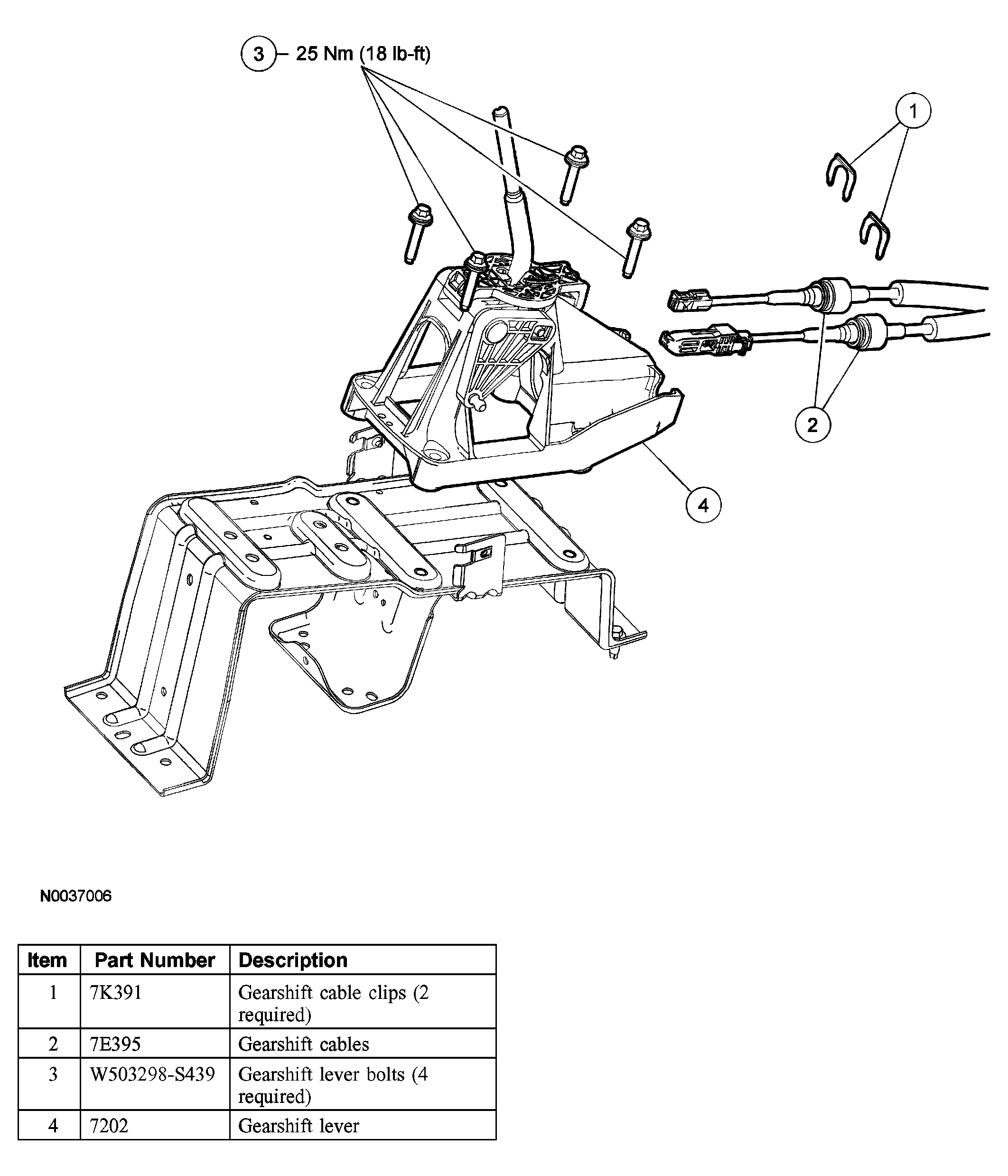

Fig 1: Exploded View Of Gearshift Lever With Torque Specifications

G03901885

Courtesy of FORD MOTOR CO.
