Tests DM: Manifold Absolute Pressure (MAP) Sensor



PINPOINT TEST DM: MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR

DM Introduction:





DM Introduction:





DM Introduction:





DM Introduction:





DM Introduction:

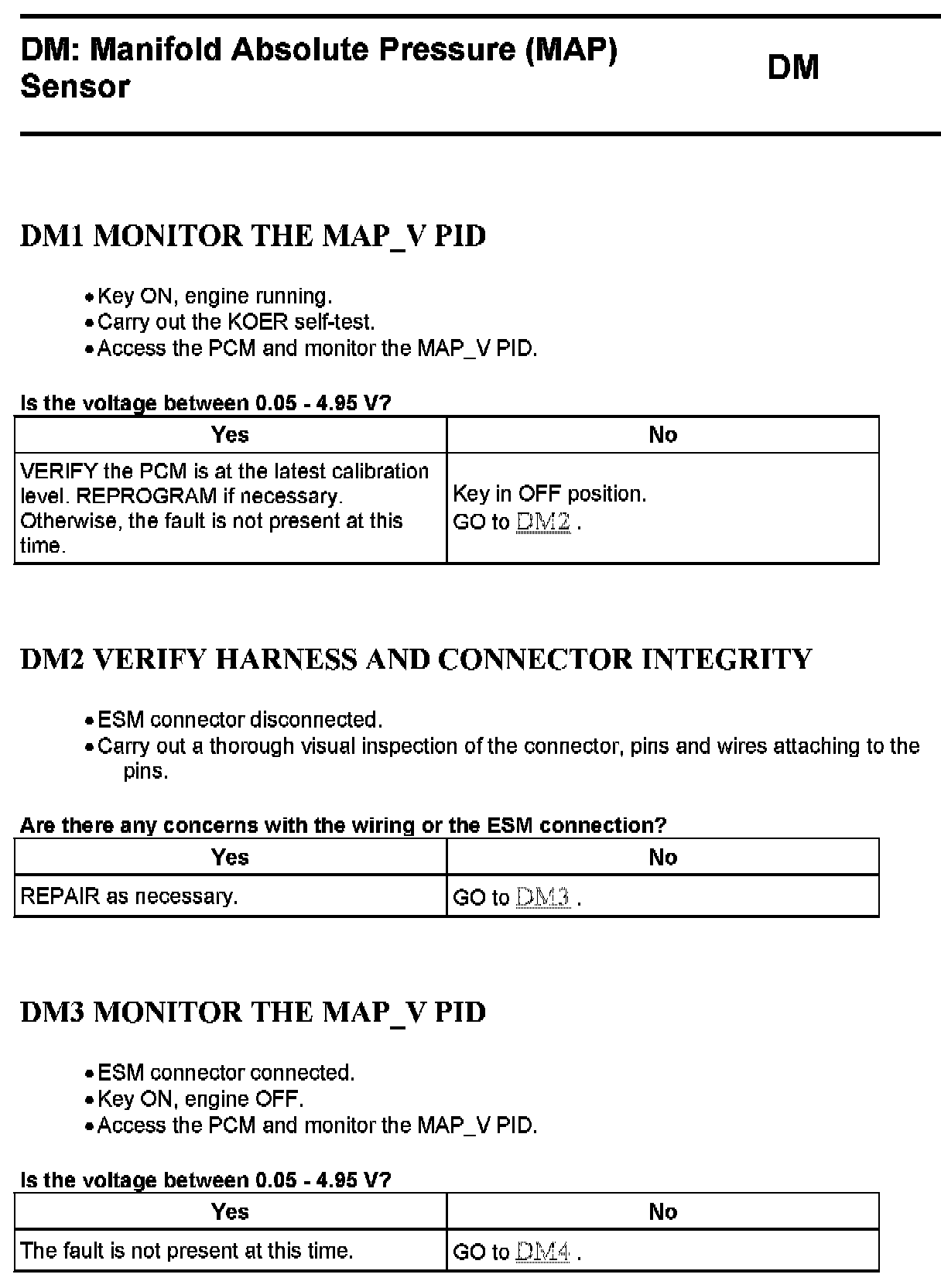

DM1 - DM3:

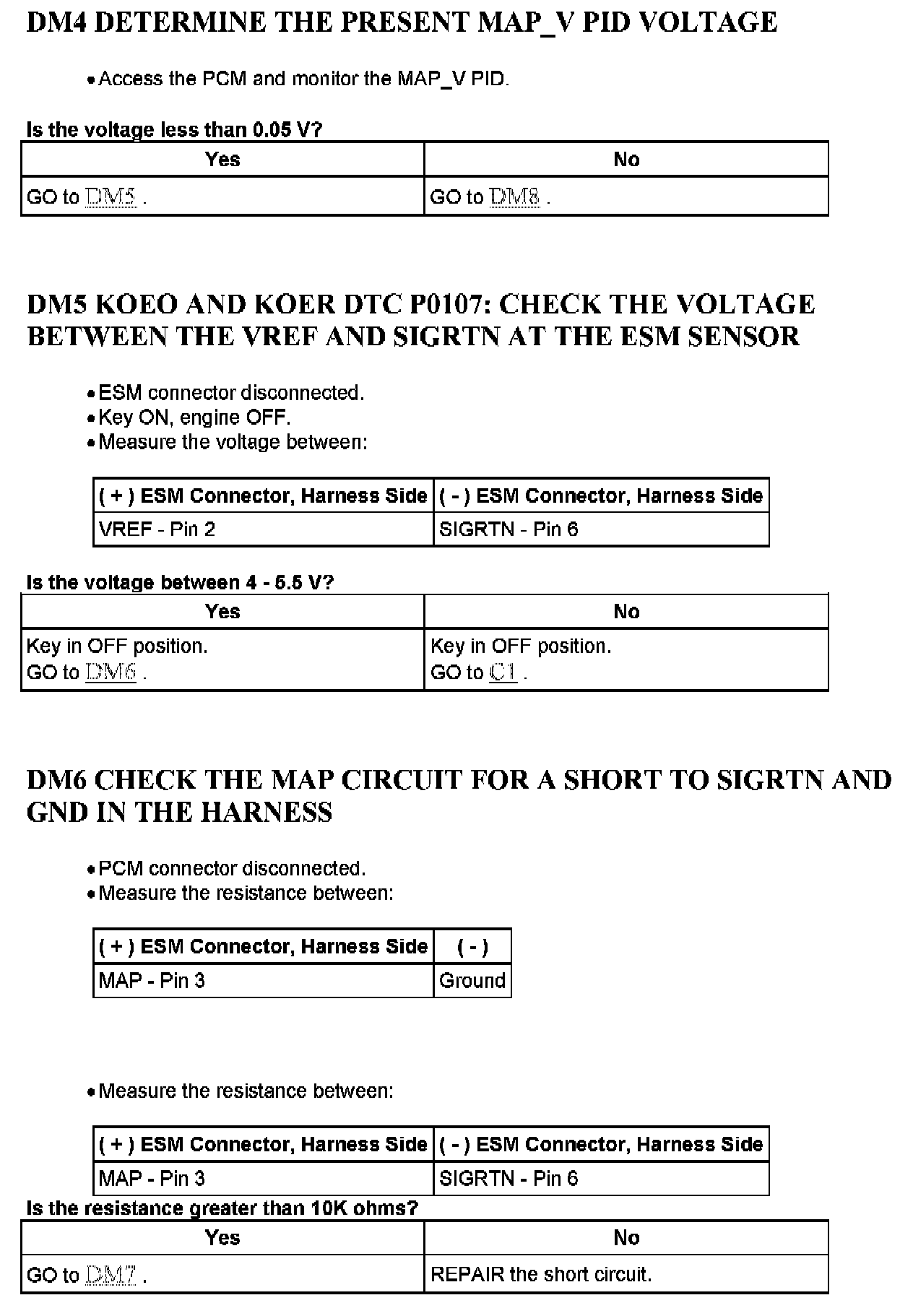

DM4 - DM6:

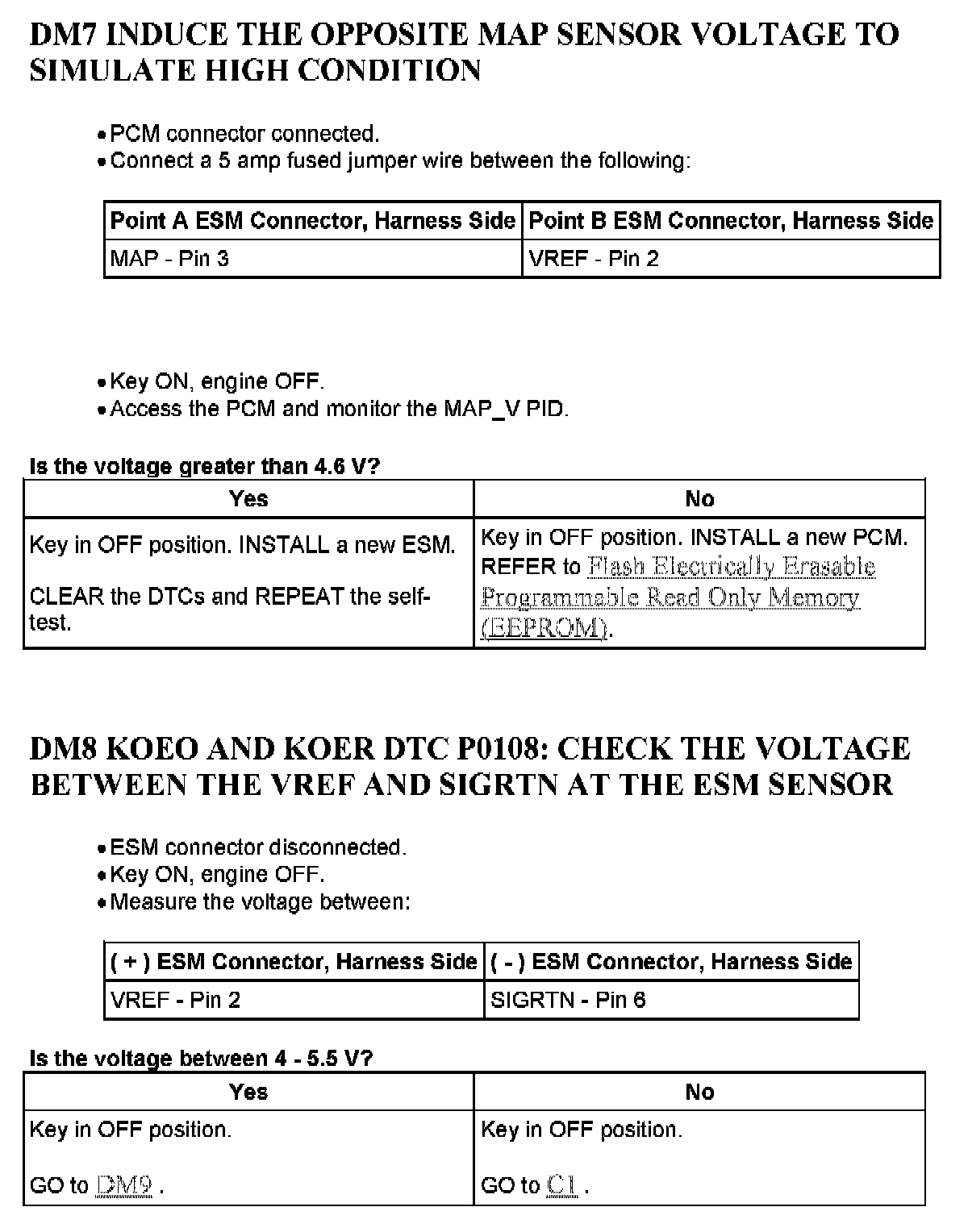

DM7 - DM8:

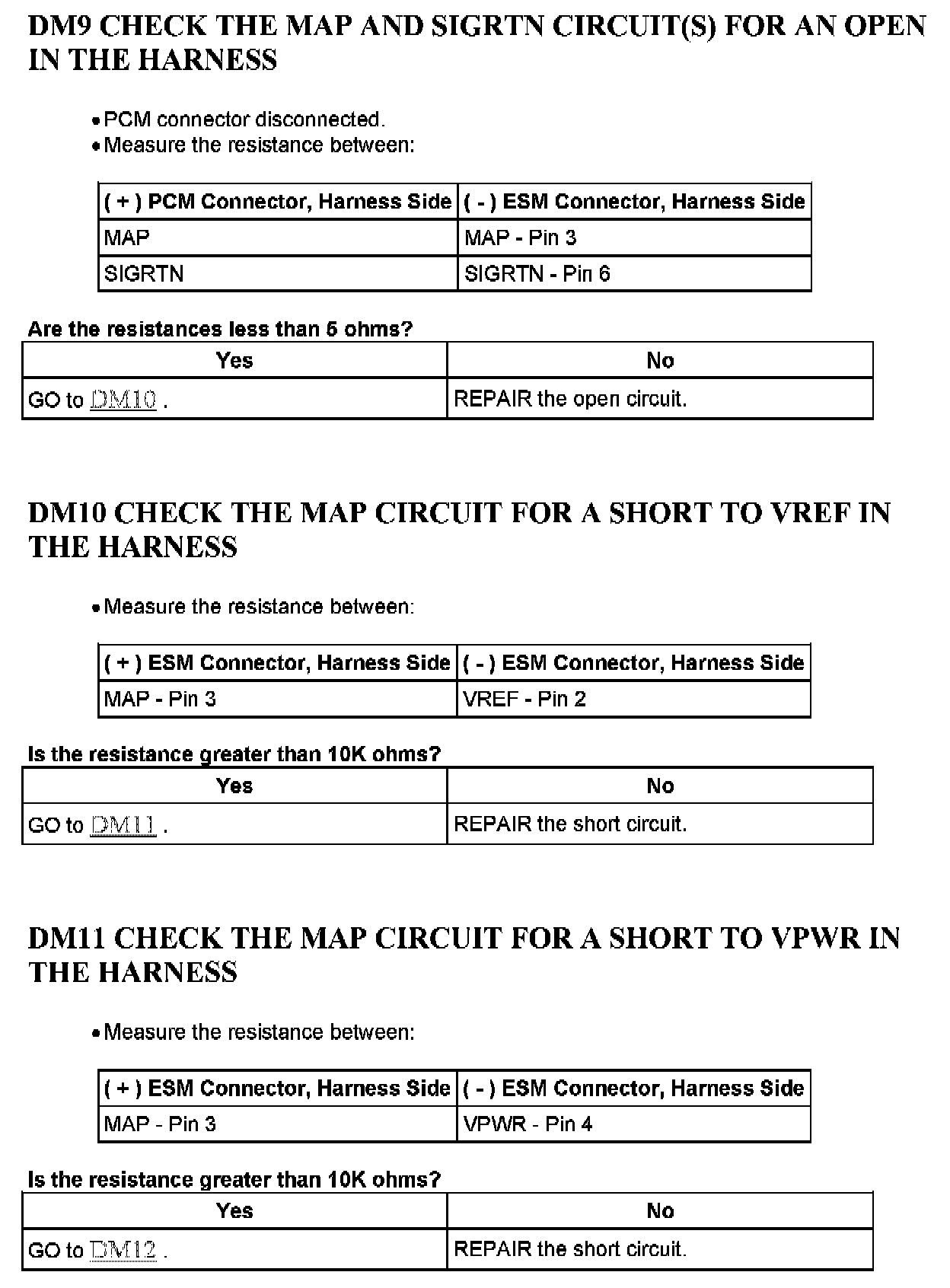

DM9 - DM11:

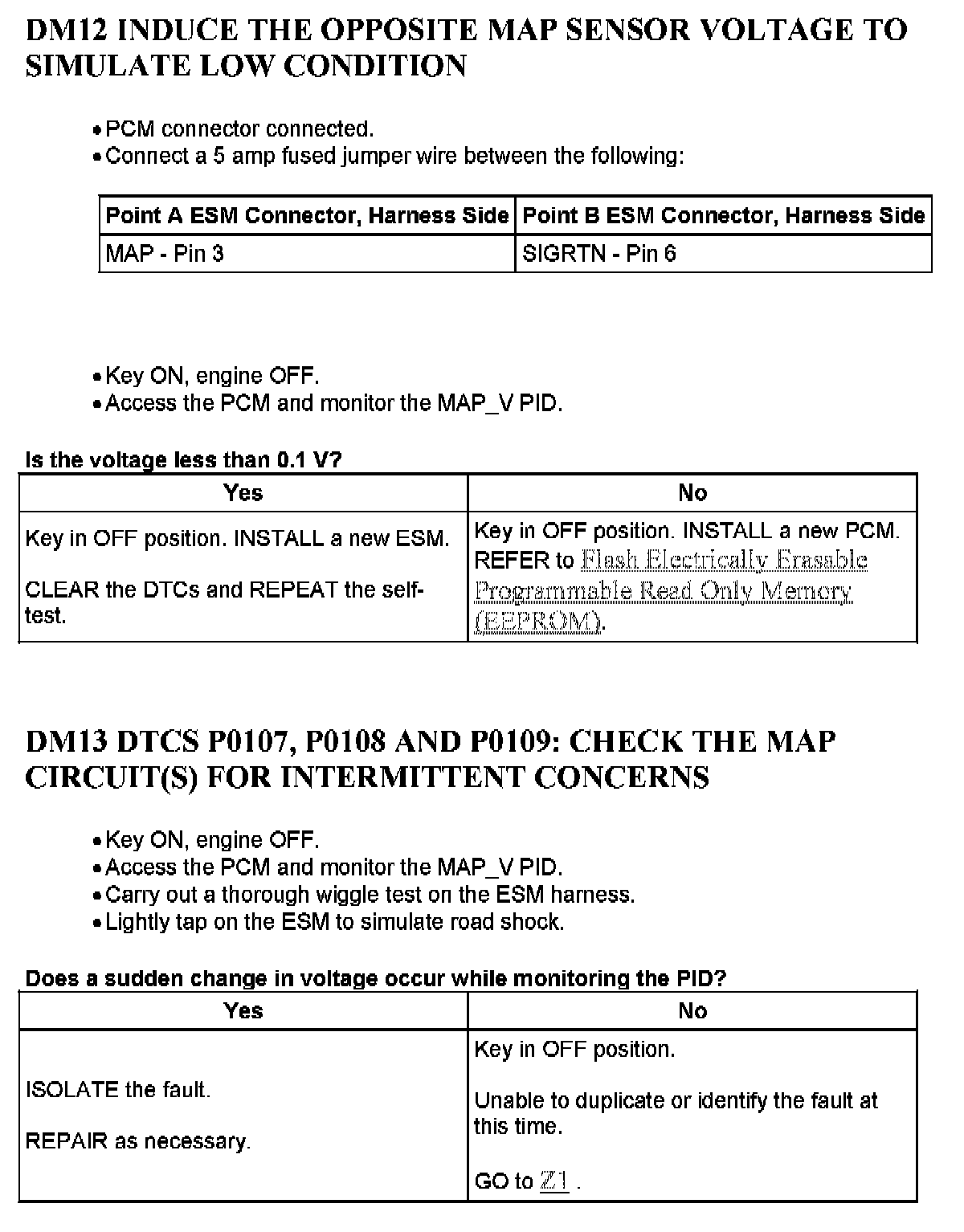

DM12 - DM13:

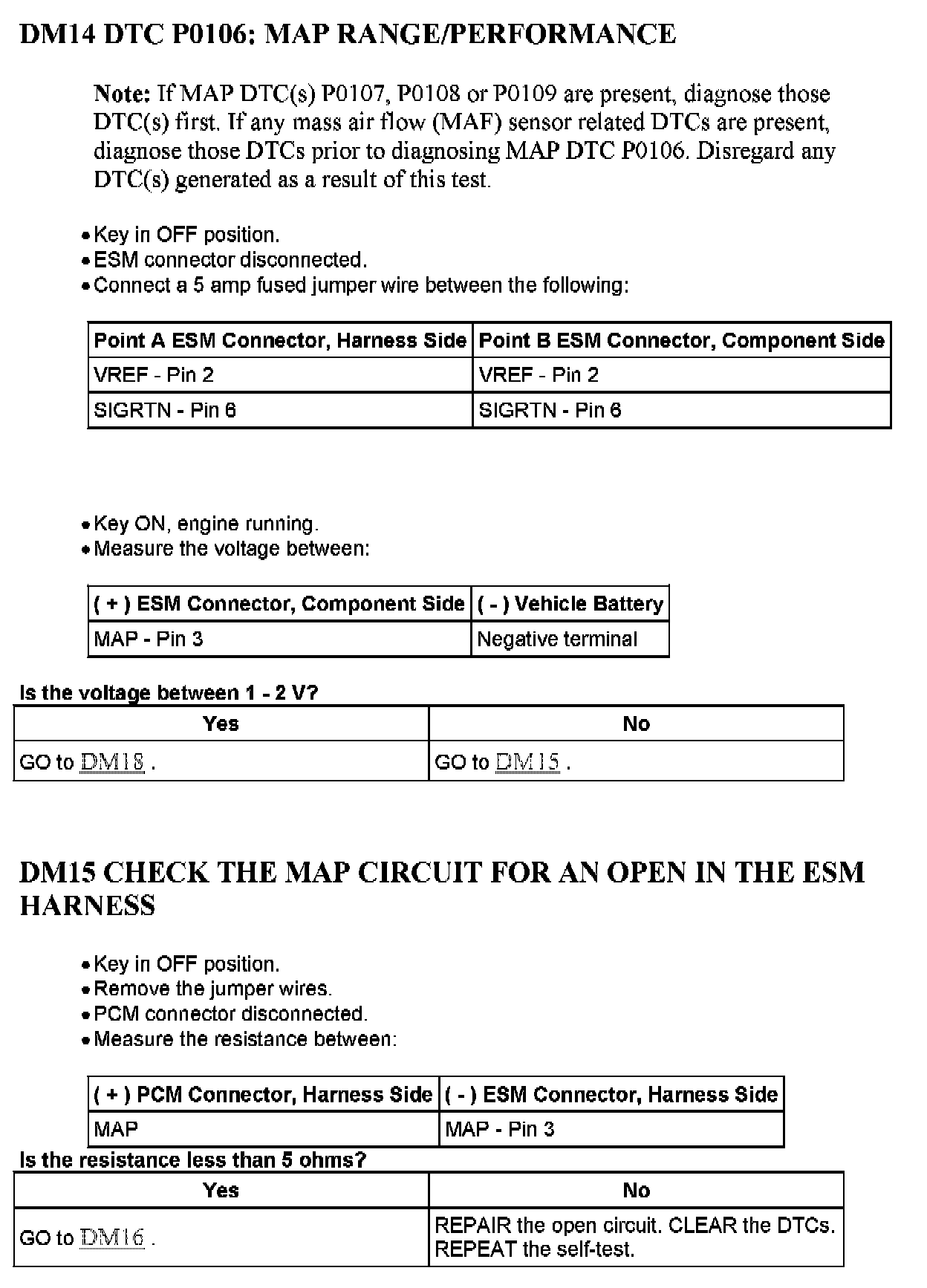

DM14 - DM15:

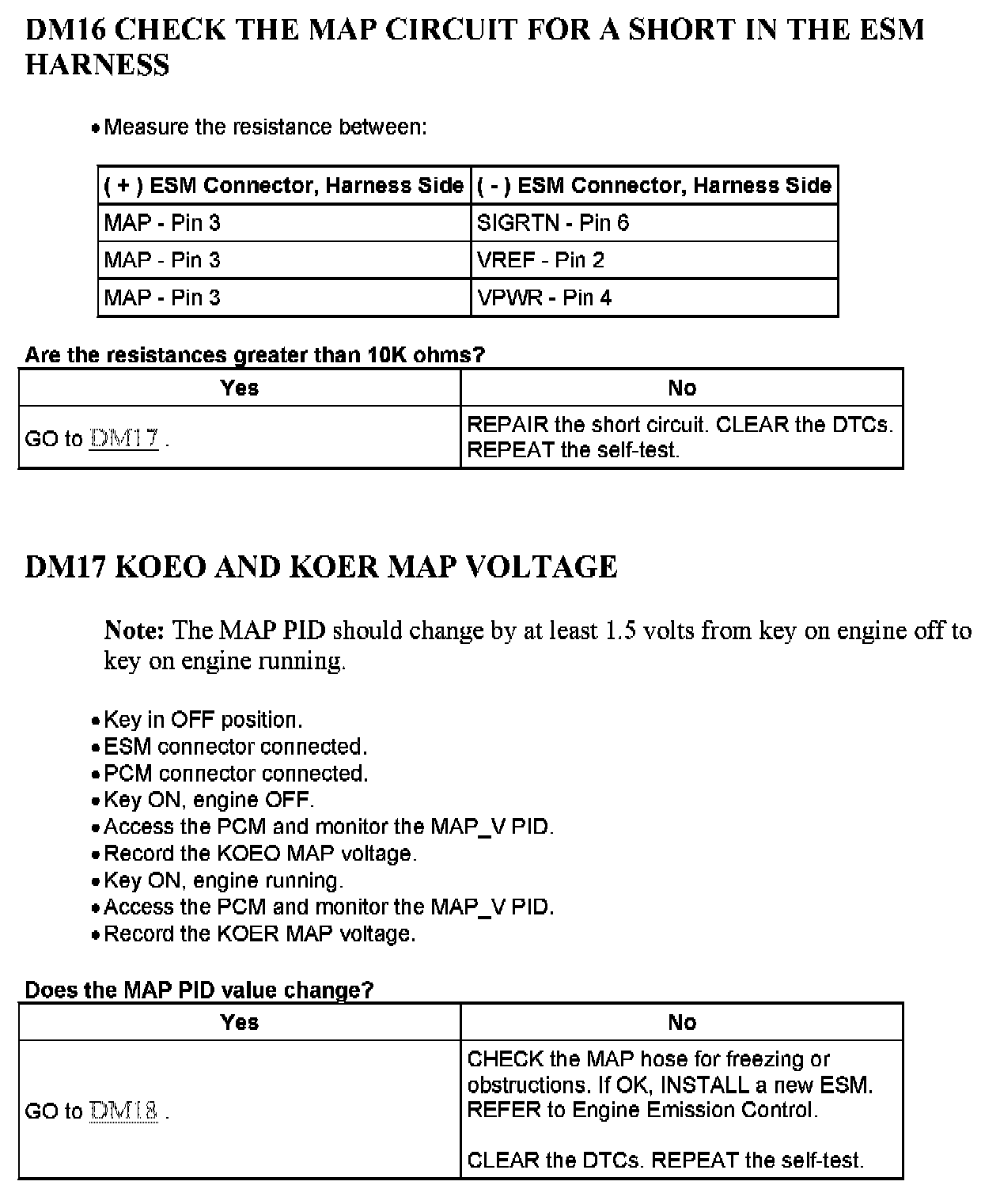

DM16 - DM17:





DM18:

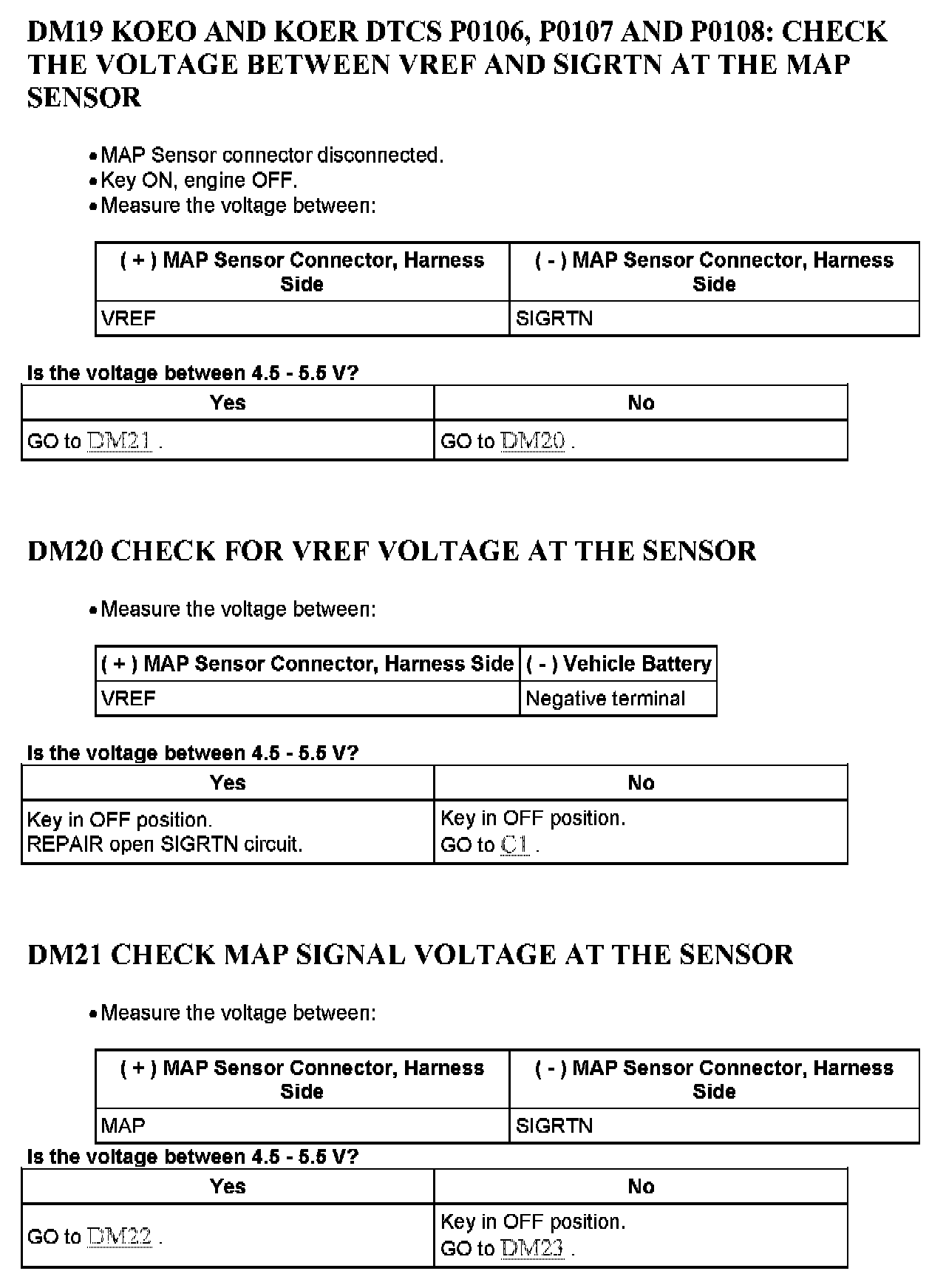

DM19 - DM21:





DM22 - DM23:

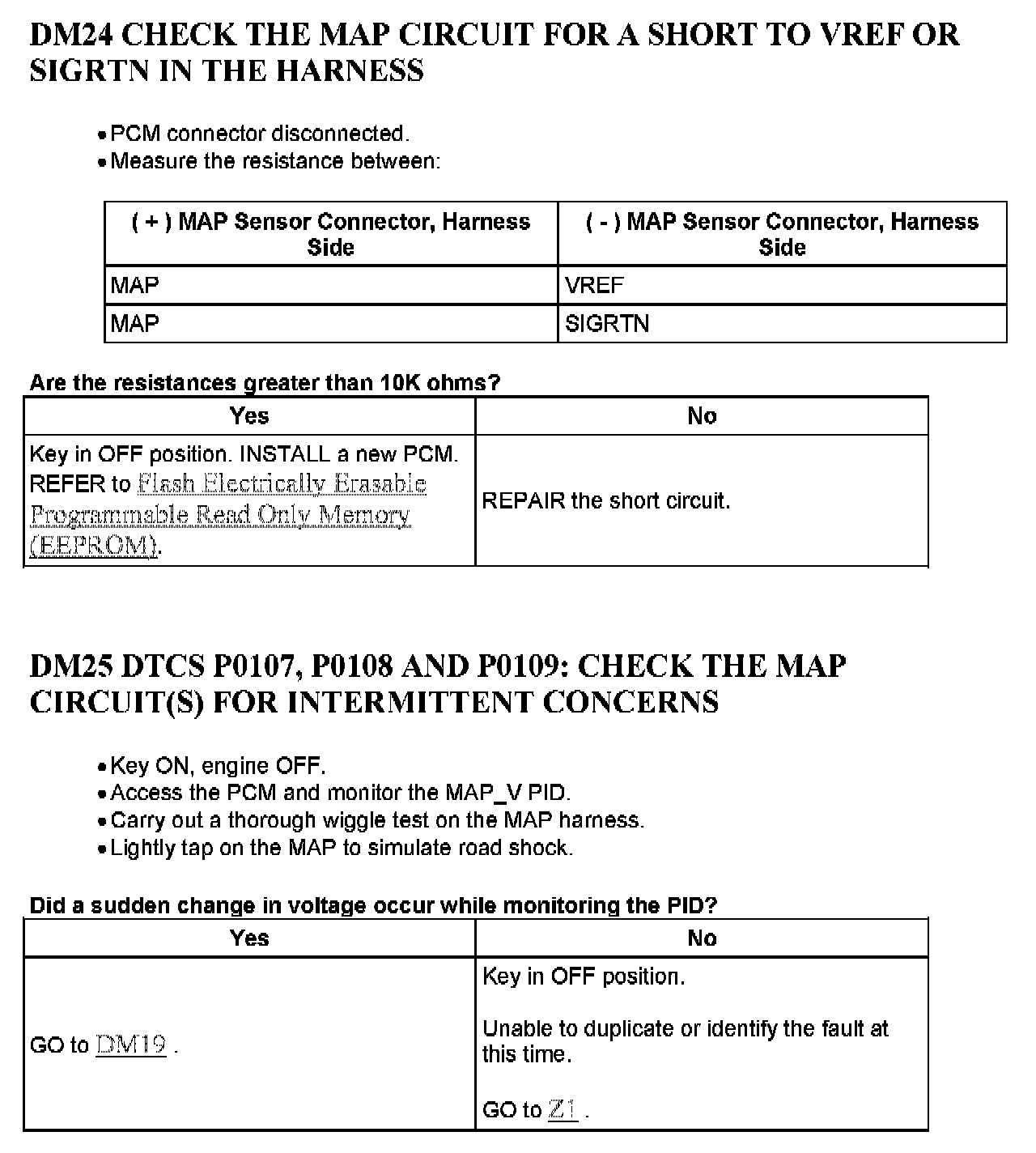

DM24 - DM25:
