Test F: Temperature Control Is Inoperative

PINPOINT TEST F: TEMPERATURE CONTROL IS INOPERATIVE

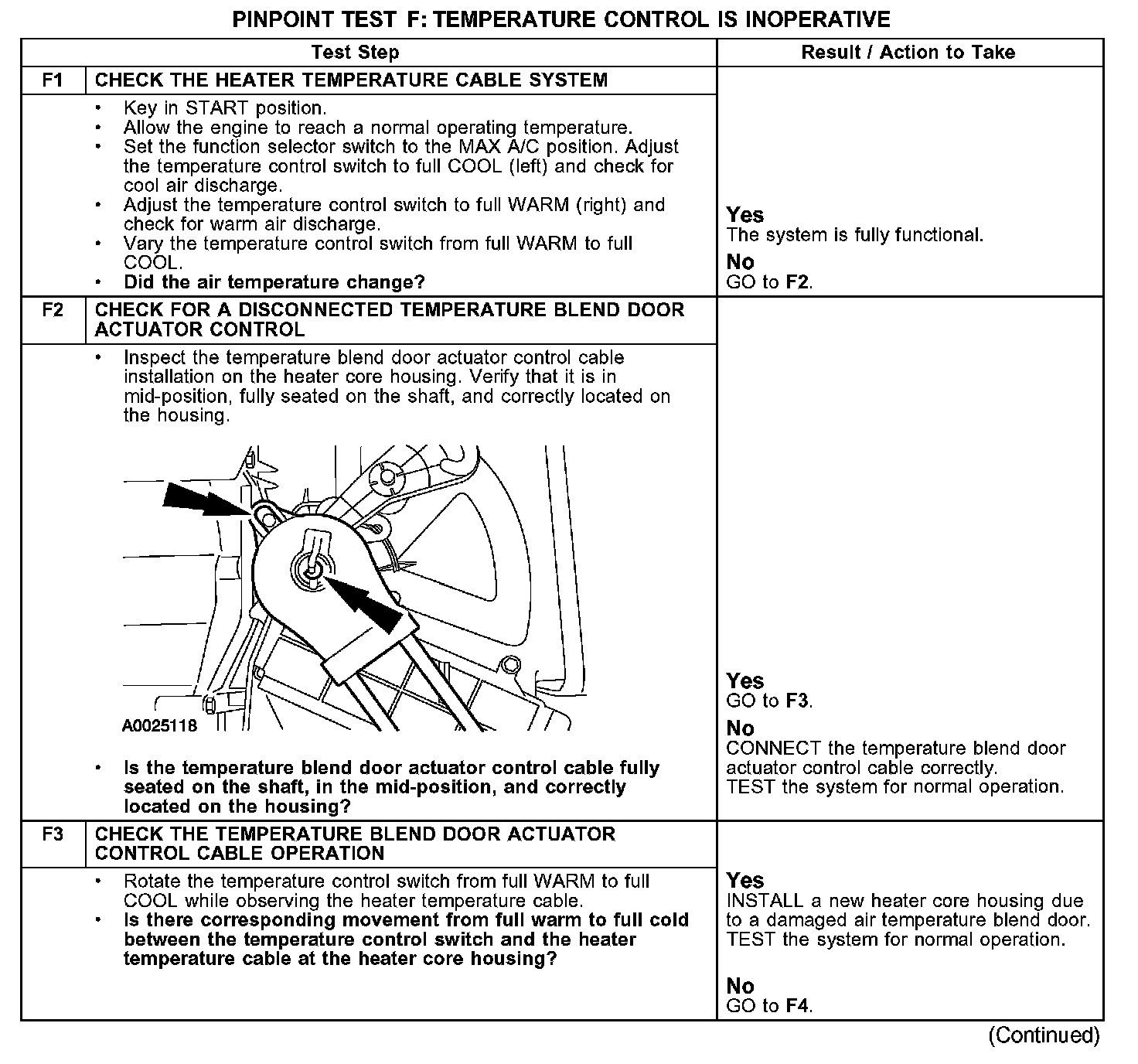

F1-F3:

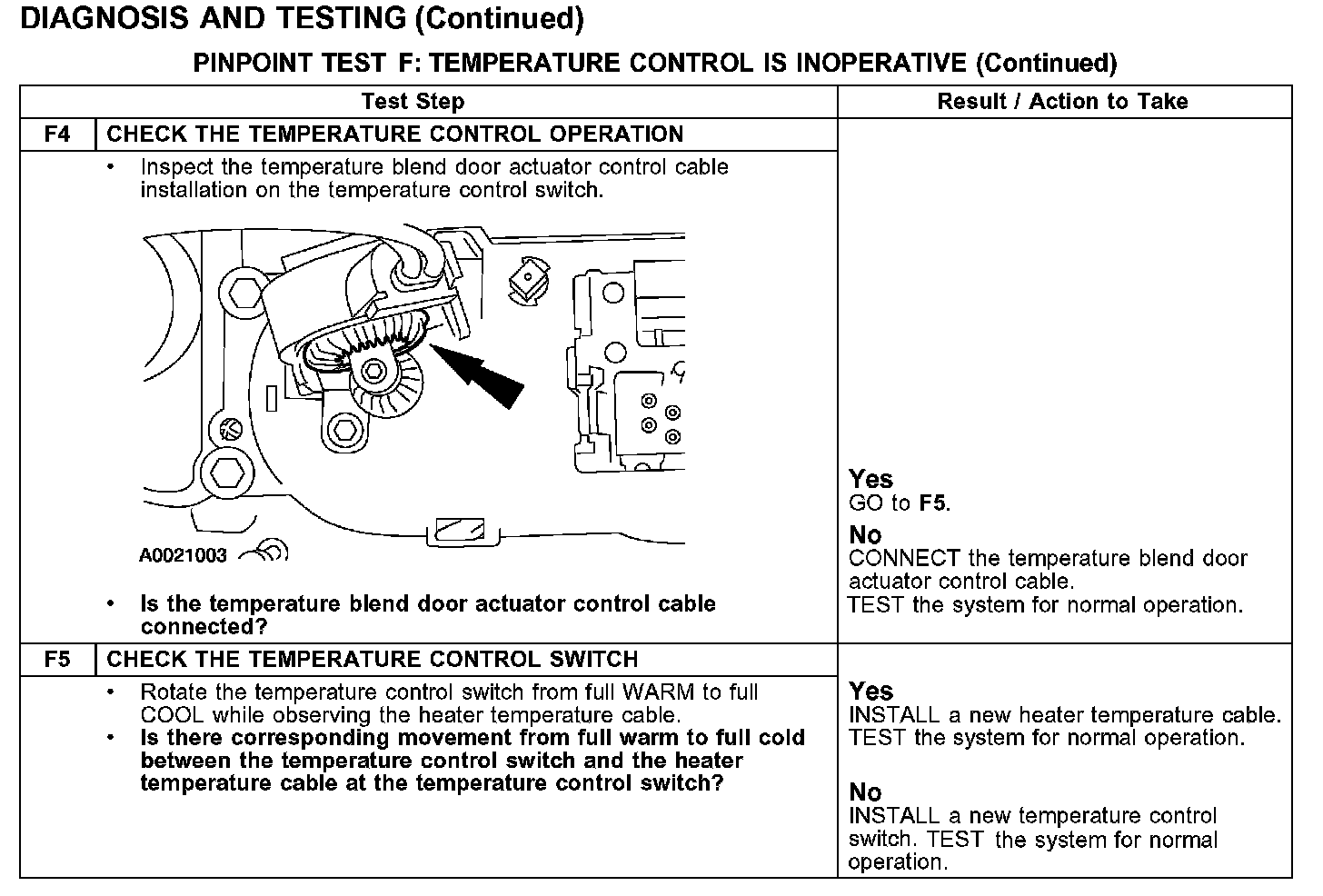

F4-F5:

Normal Operation
Under normal operation, the temperature control switch actuates the temperature blend door through the temperature blend door actuator cable.

Possible Causes
- temperature control switch
- temperature blend door actuator cable
- heater core
- stuck or bound temperature blend door
