High Pressure Sensor / Switch: Service and Repair

HIGH PRESSURE CUTOFF SWITCH







Removal and Installation

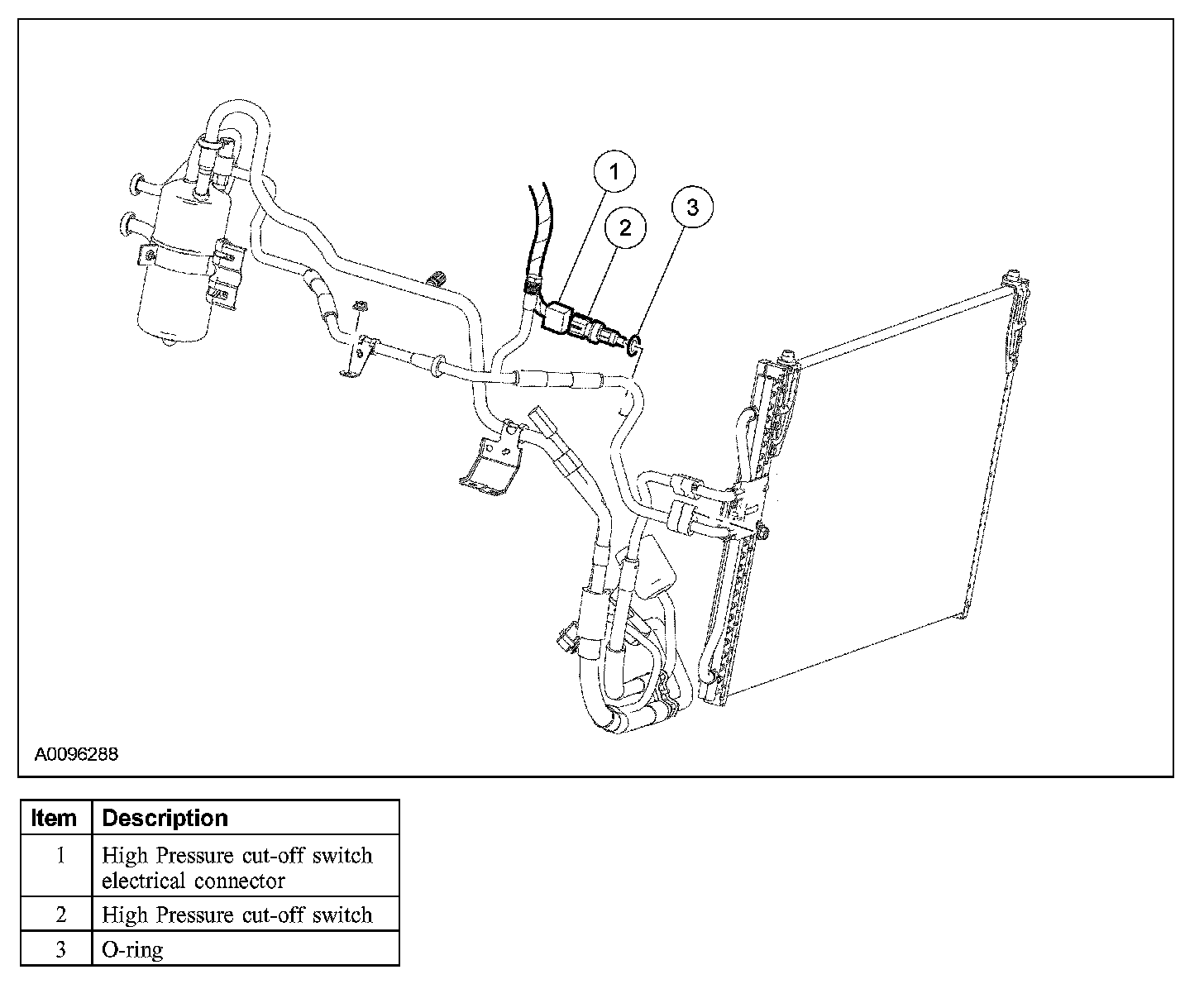

1. Disconnect the high pressure cut-off switch electrical connector.
2. Remove the high pressure cut-off switch.

3. NOTE: A new O-ring seal lubricated with clean mineral oil must be installed before installing a new switch.

To install, reverse the removal procedure.
