Thermostat Housing, Engine Cooling

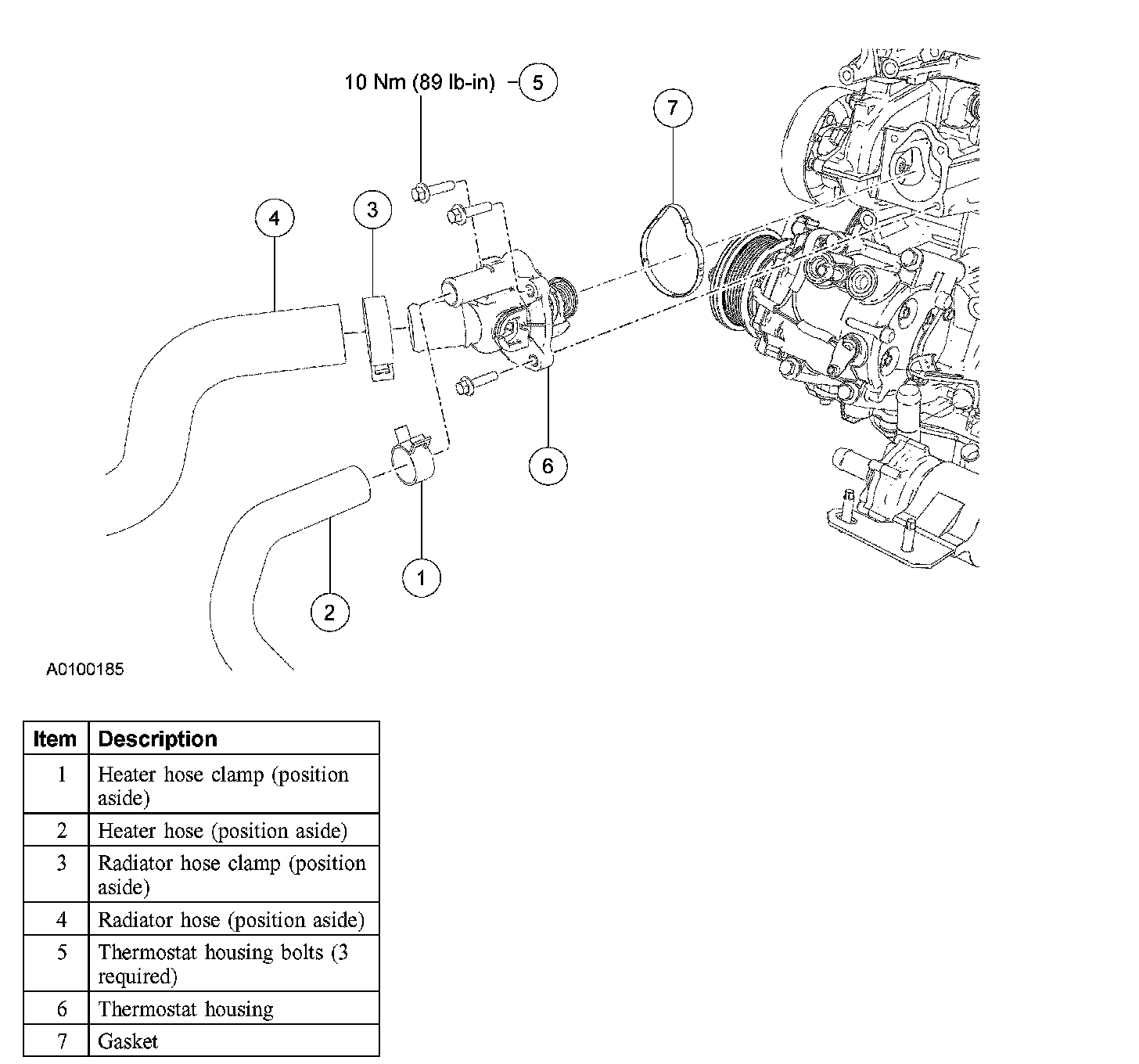

Thermostat Housing-2.3L





NOTE: The thermostat and thermostat housing are serviced as an assembly.
