Home
>>
Ford
>>
2005
>>
Escape 2WD L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Passive Anti-Theft System (PATS)
>>
Connector Circuit Reference
>>
Powertrain Control Module (PCM)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Powertrain Control Module (PCM)

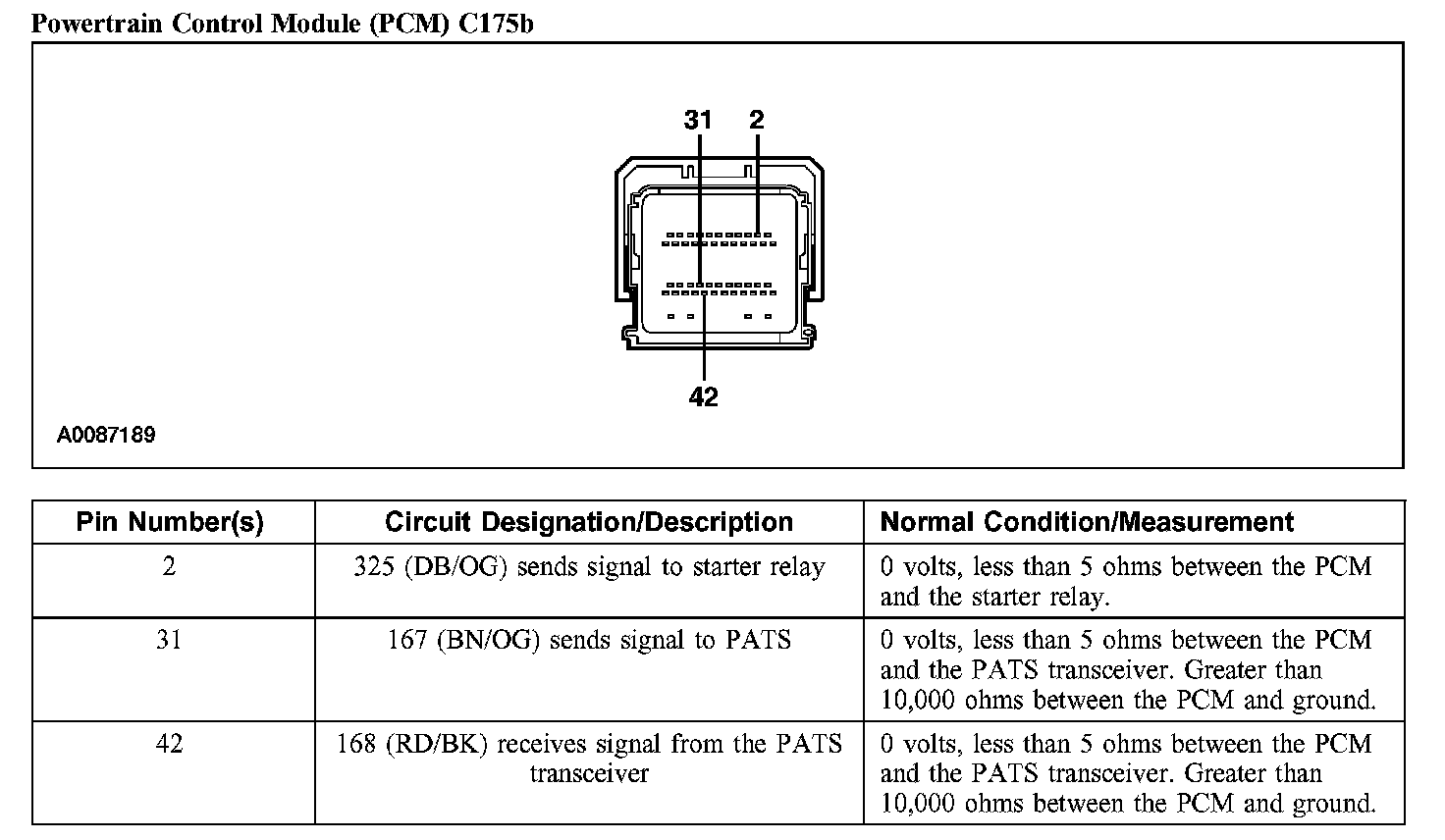

Powertrain Control Module (PCM) C175b:
