Test I: The Doors Do Not Lock/Unlock Using The Remote Keyless Entry Transmitter

PINPOINT TEST I: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE KEYLESS ENTRY TRANSMITTER

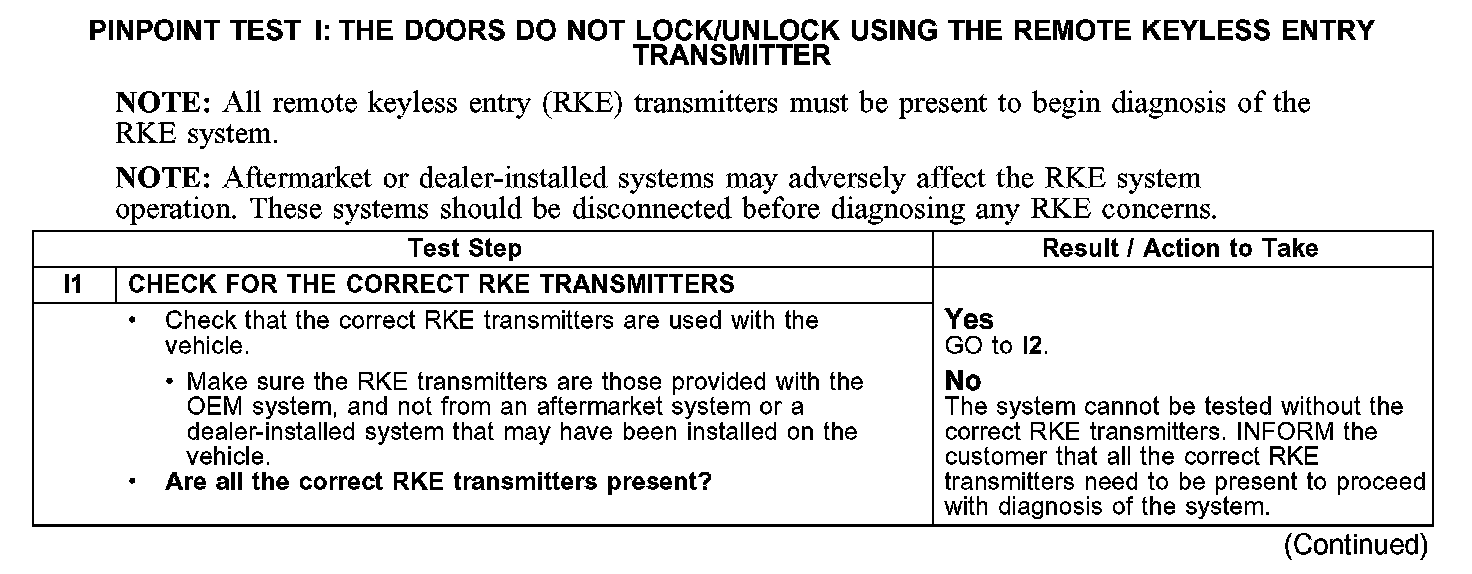

I1:

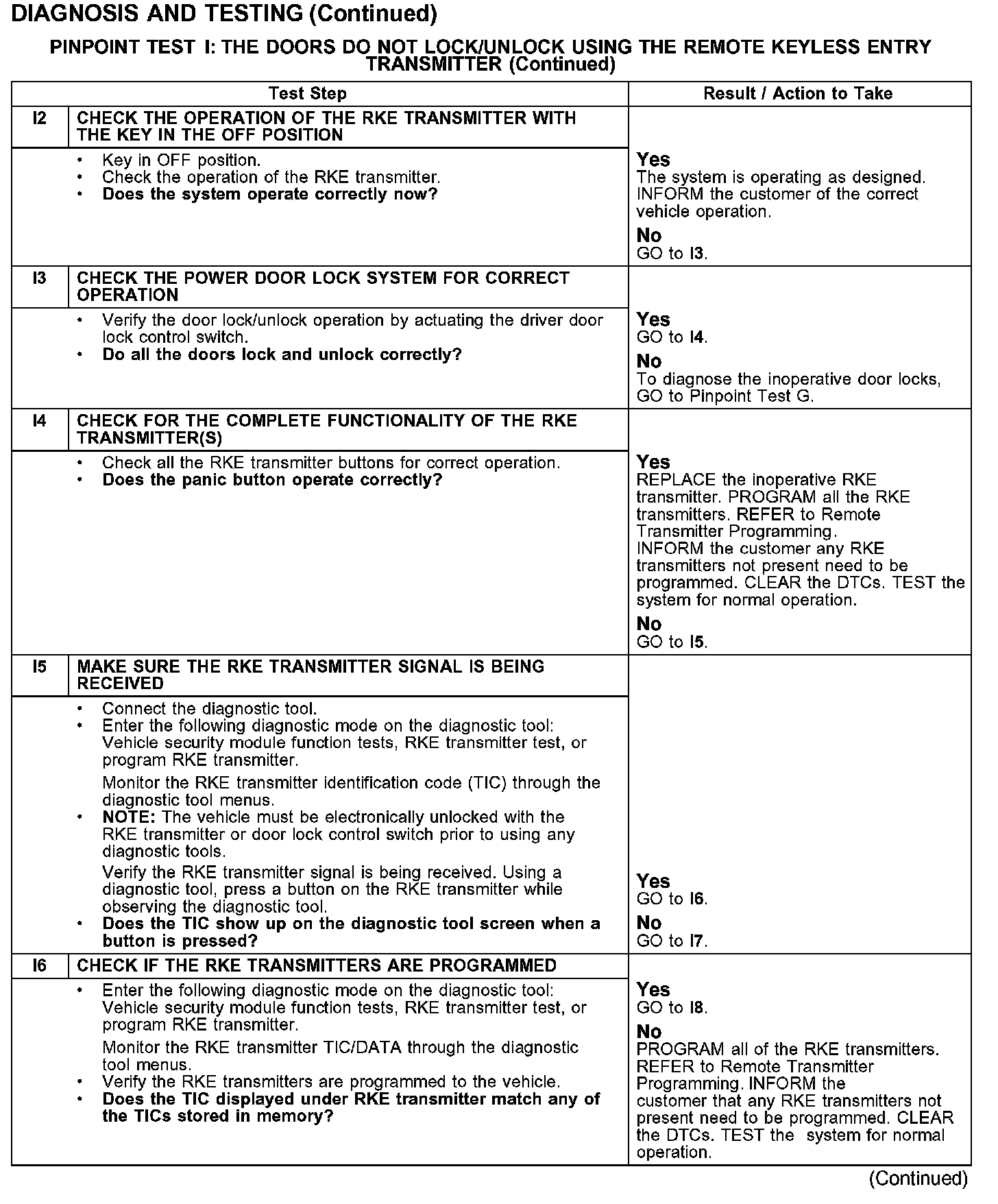

I2-I6:

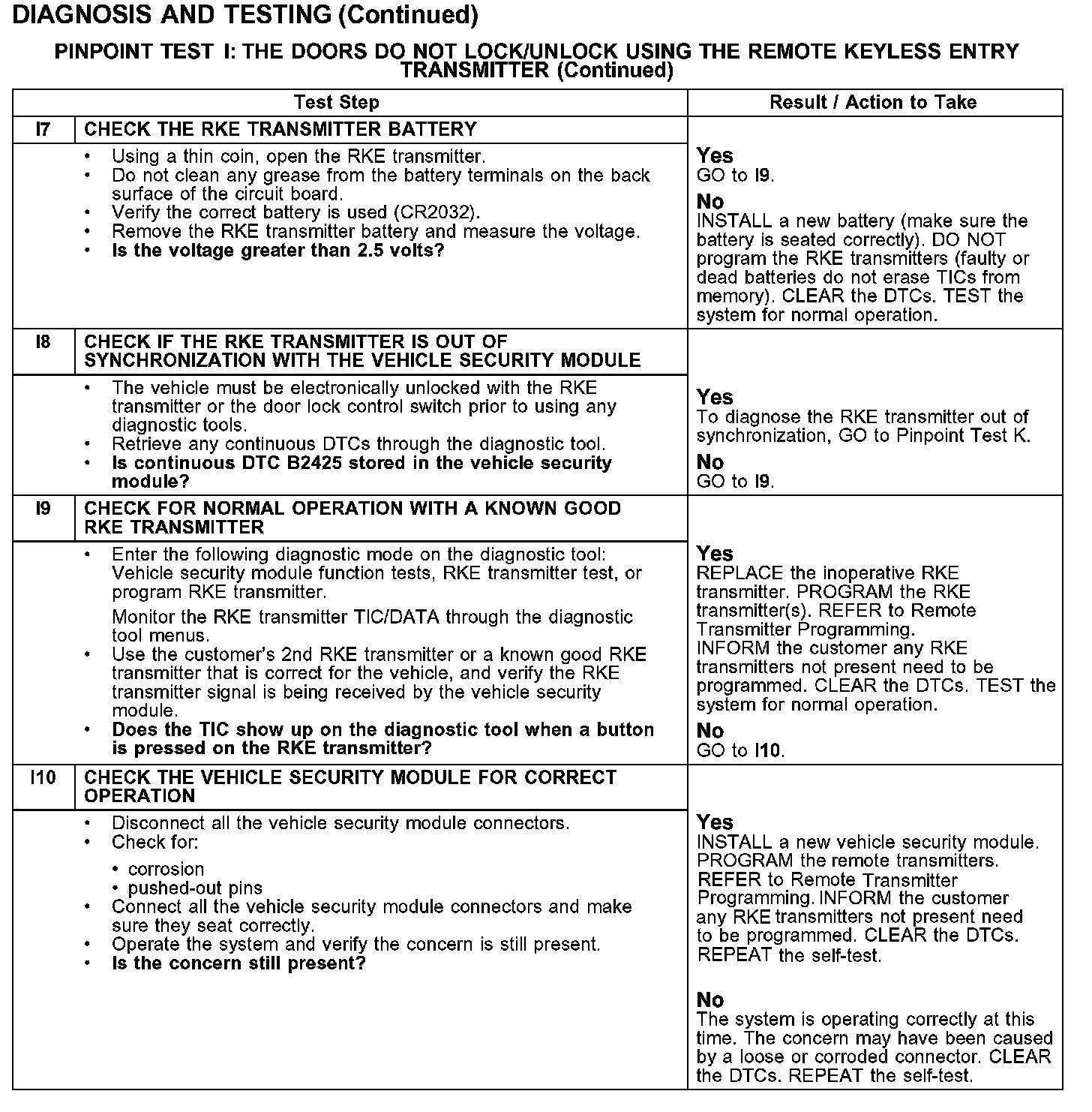

I7-I10:
