Removal and Installation

  1. Remove the ignition coil. For additional information, refer to IGNITION COIL-ON-PLUG .
    2. NOTE: Remove any foreign material from the spark plug wells with compressed air before removing the spark plugs.

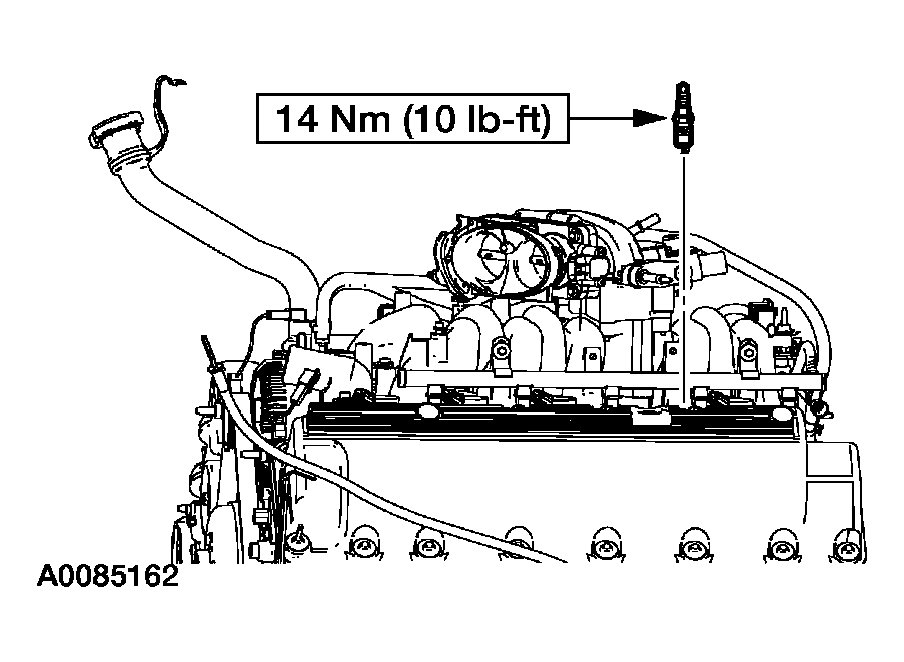

    Fig 1: Removing Spark Plugs
    G03888186Courtesy of FORD MOTOR CO.
  2. Remove the spark plugs.
  3. Inspect the spark plugs. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
  4. To install, reverse the removal procedure.

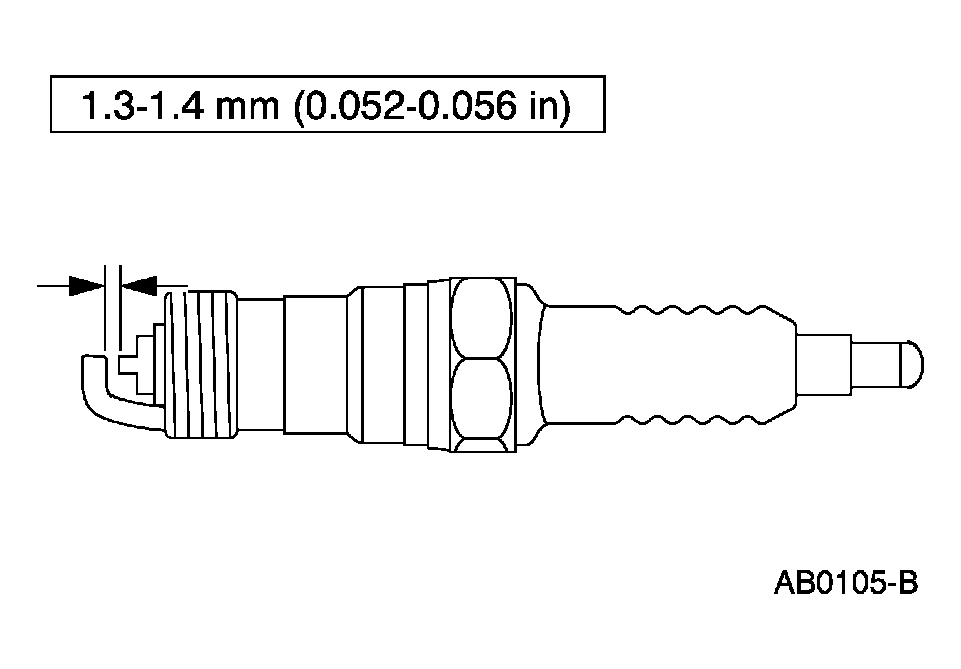

    Fig 2: Inspecting Spark Plugs
    G03888183Courtesy of FORD MOTOR CO.
