Ambient Air Temperature Sensor

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper radiator sight shield.
  2. Remove the ambient air temperature sensor.
  3. To install, reverse the removal procedure.

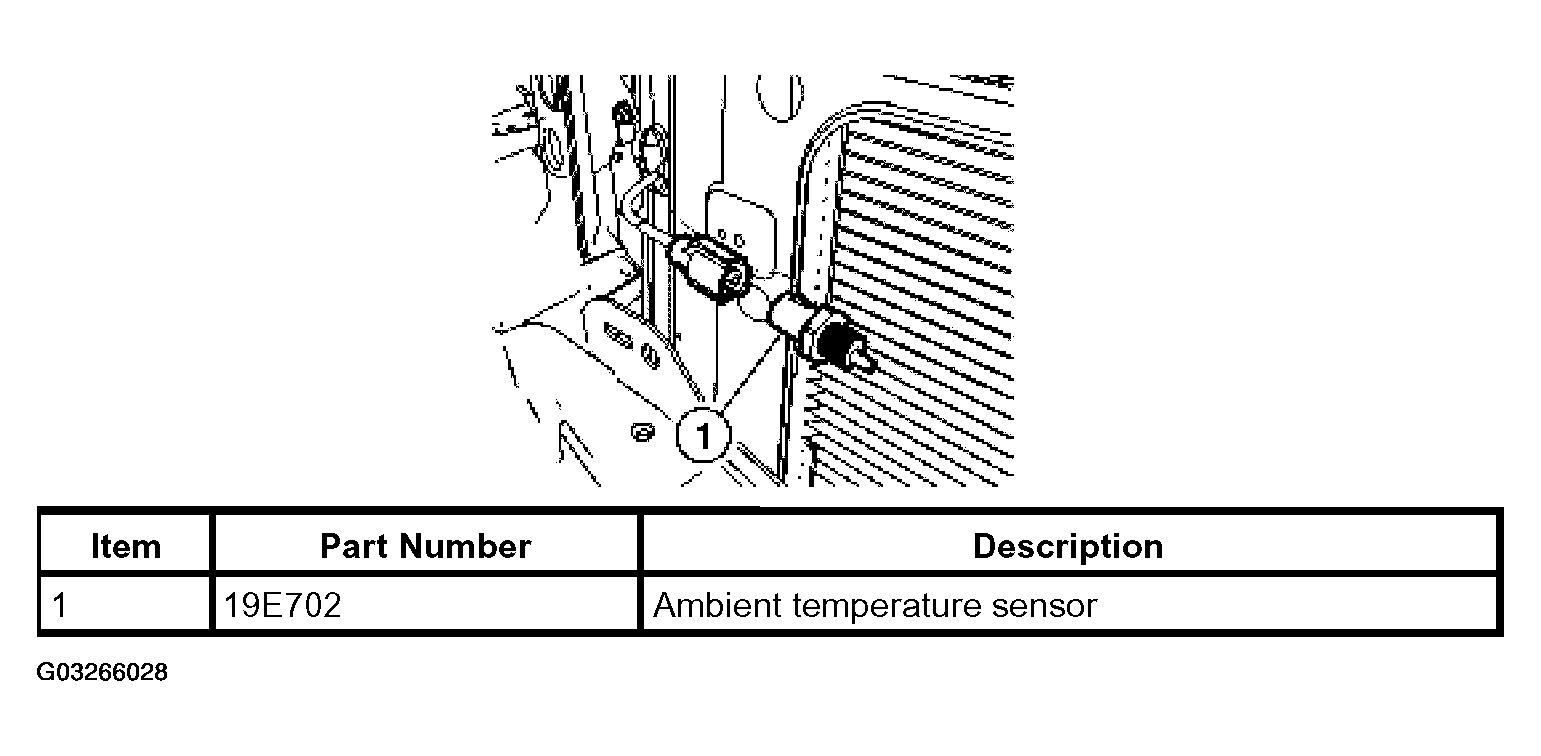

    Fig 1: Removal/Installation Of Ambient Air Temperature Sensor
    G03266028Courtesy of FORD MOTOR CO.
