Rear Disc Brake: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tool(s)

G01527581

Courtesy of FORD MOTOR CO.

Remove the components in the order indicated in the figure below.

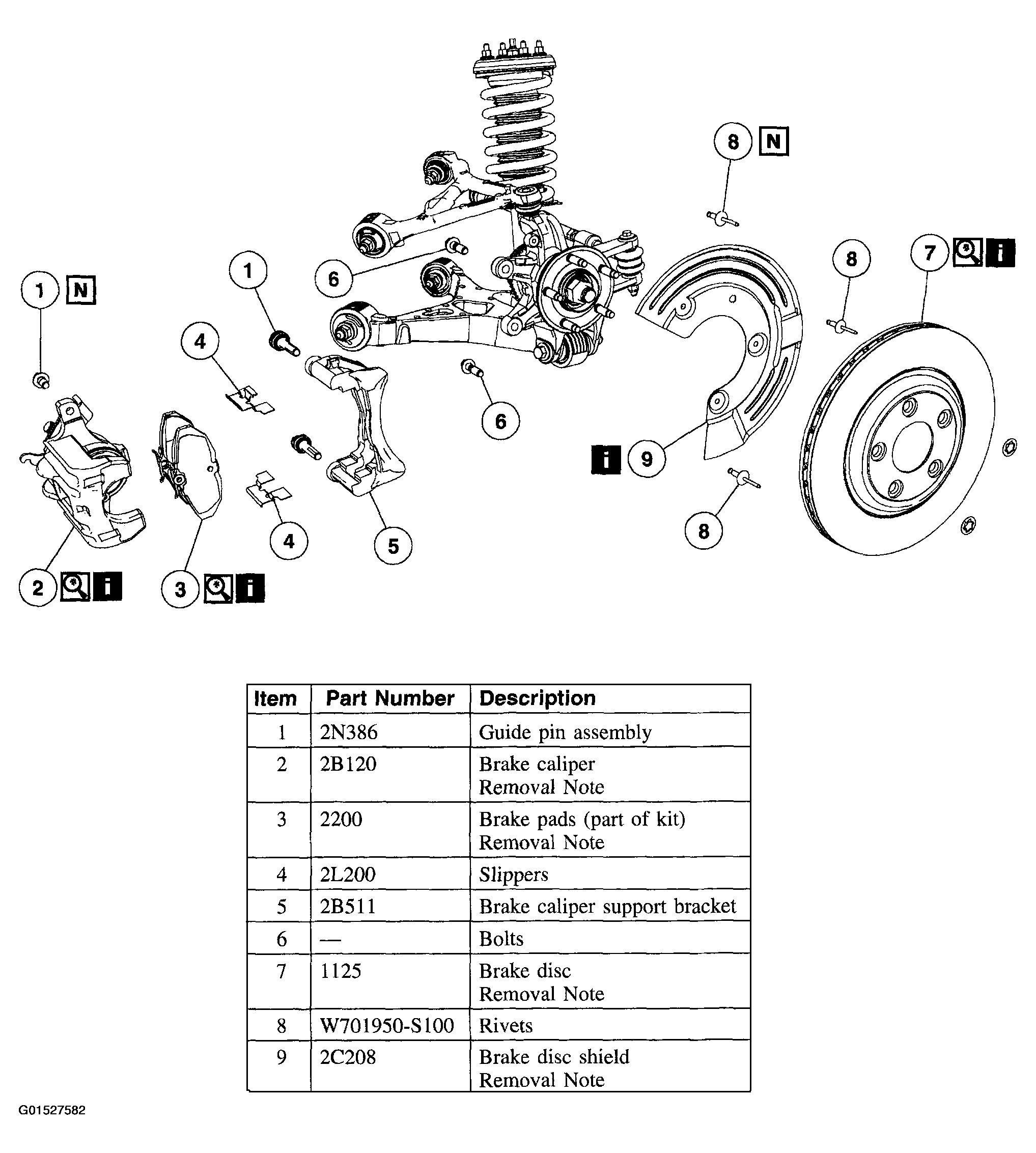

Fig 2: Exploded View Of Rear Disc Brake
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
