Removal & Installation

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine appearance cover. Remove the components in the order indicated. See Fig 1. To install, reverse the removal procedure.

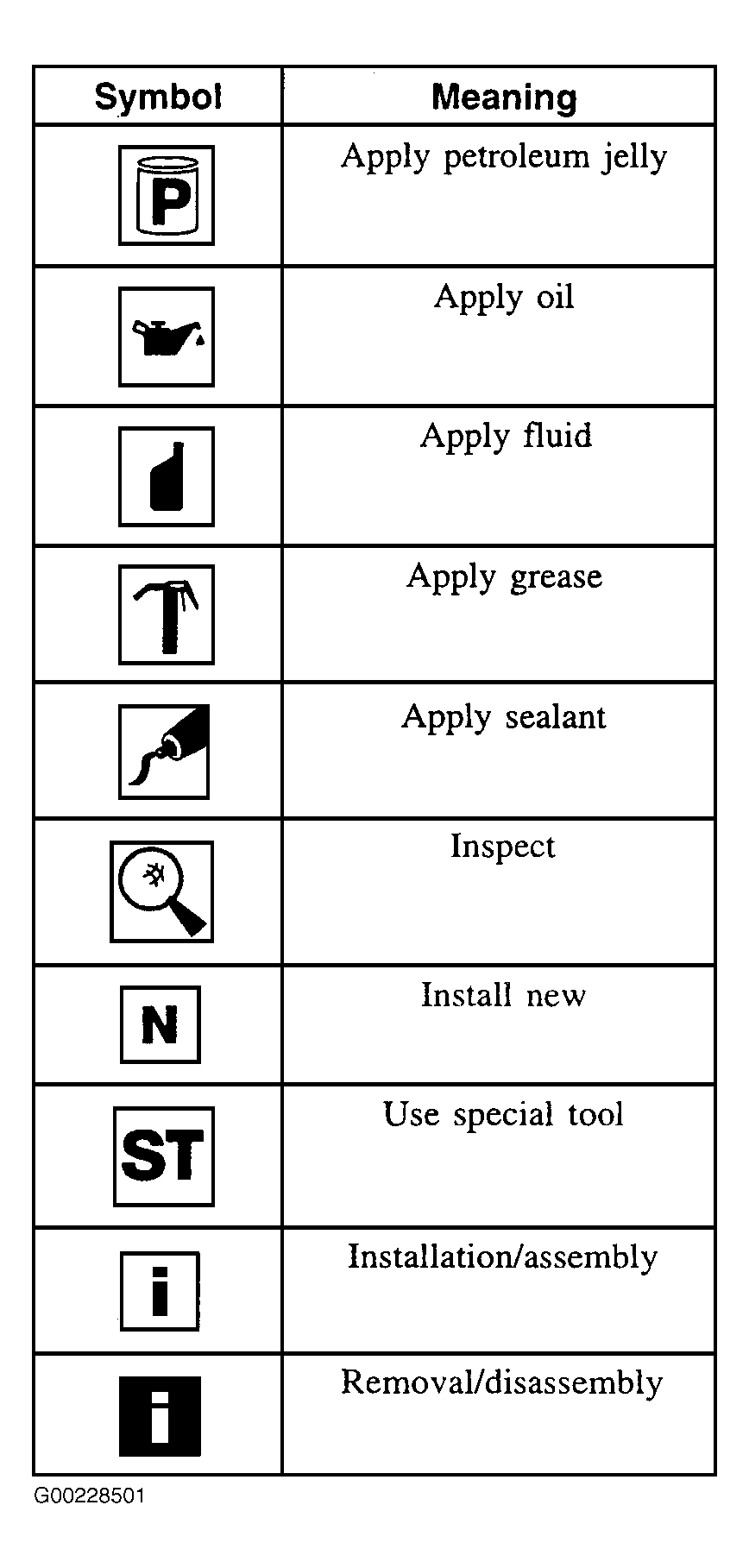

NOTE: To identify figure symbols, see Figure.

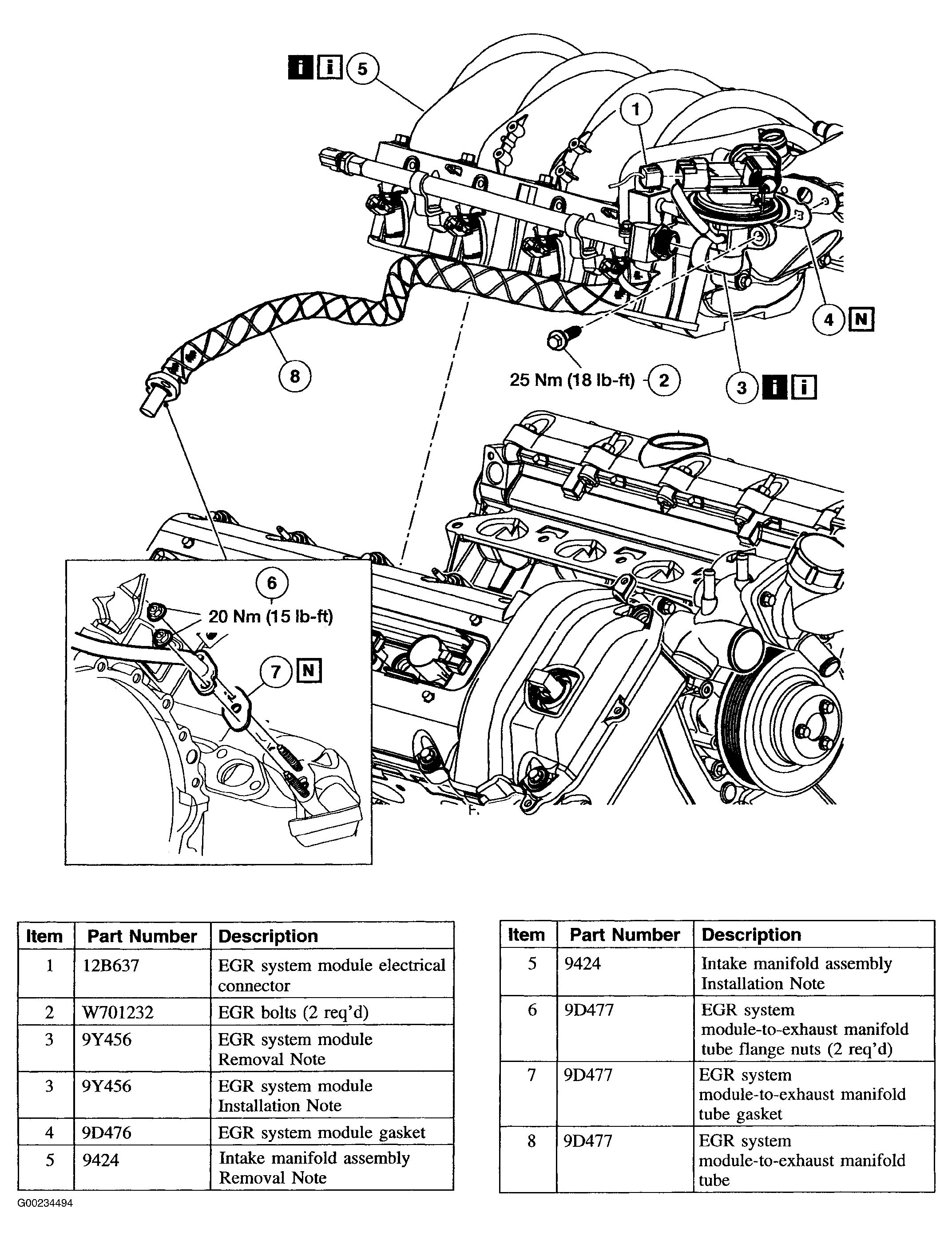

Fig 1: Removing EGR System Module & EGR System Module Tube-To-Exhaust Manifold

Courtesy of FORD MOTOR CO.

Removal Notes

Item 3: EGR System Module Removal Note

Remove the vacuum harness. See Fig 2. Disconnect the EGR system module-to-exhaust manifold tube from the EGR system module. See Fig 3.

Item 5: Intake Manifold Removal Note

Remove the intake manifold. See INTAKE MANIFOLD under AIR INDUCTION SYSTEMS.

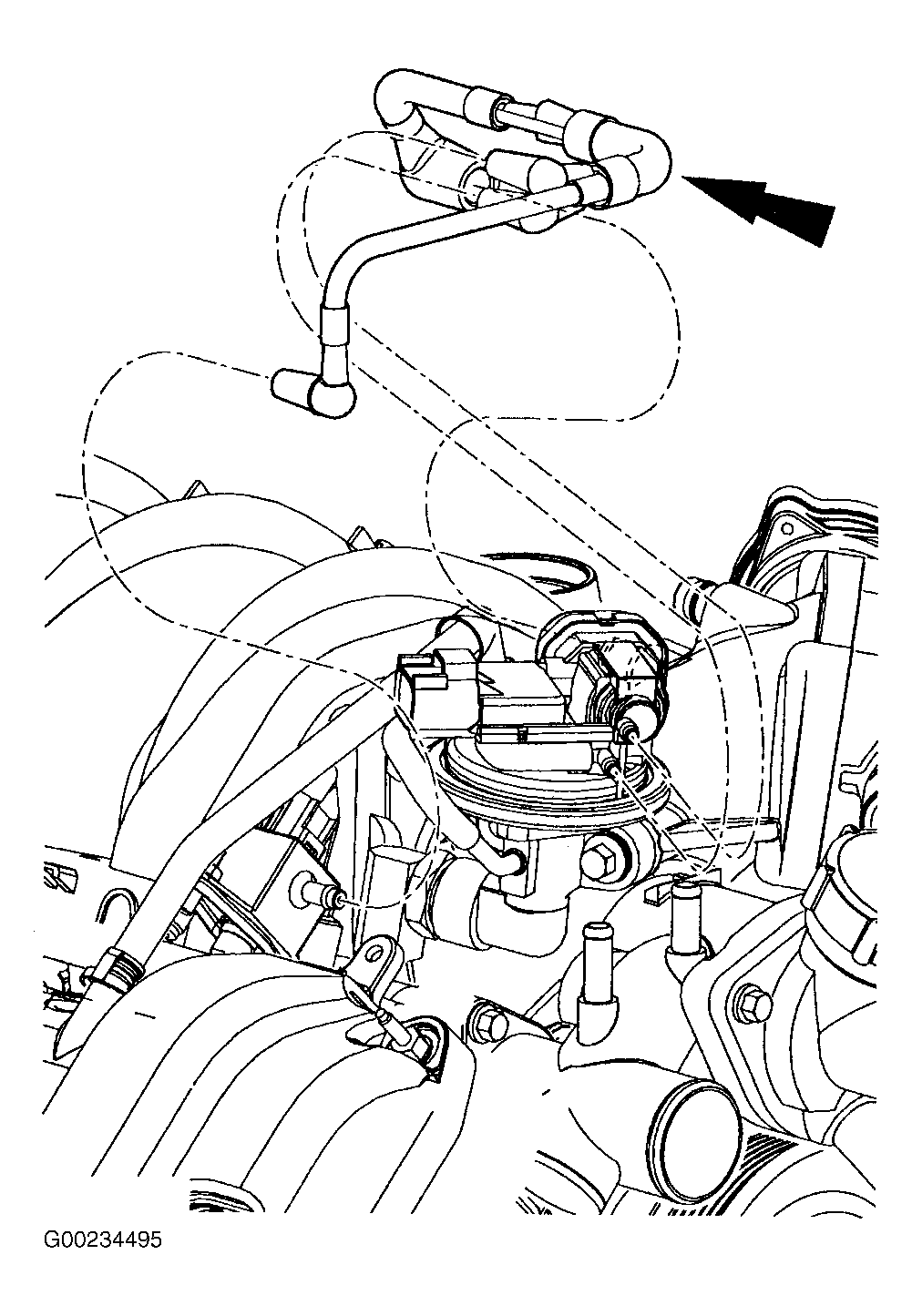

Fig 2: Removing EGR Vacuum Harness

Courtesy of FORD MOTOR CO.

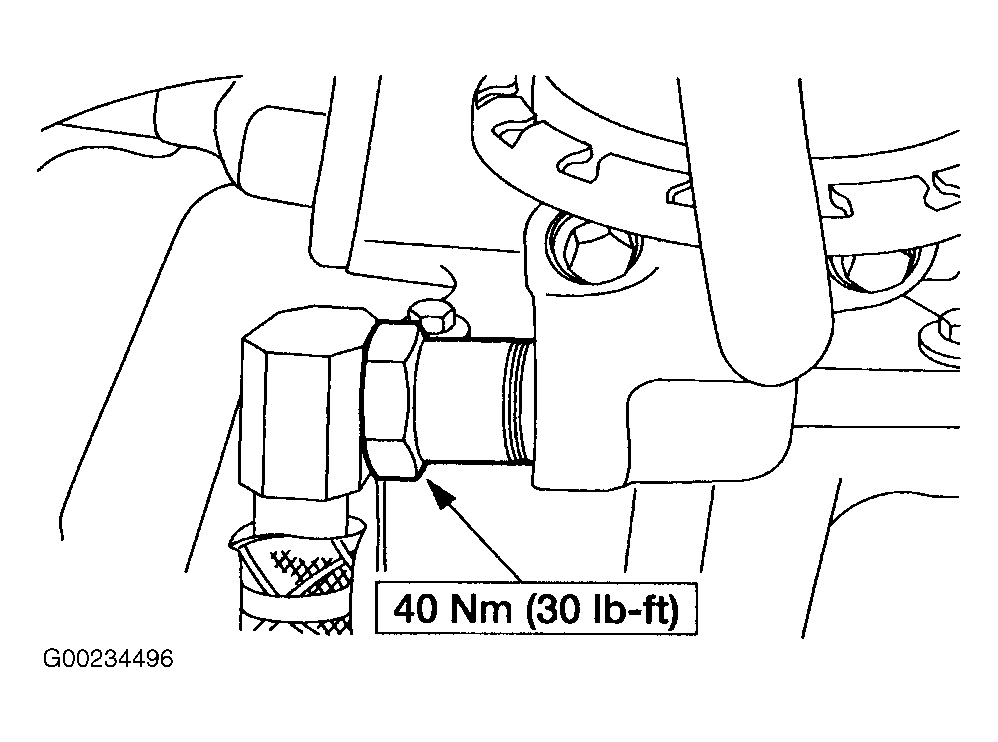

Fig 3: Disconnecting EGR System Module-To-Exhaust Manifold Tube From EGR System Module

Courtesy of FORD MOTOR CO.

Installation Notes

Item 5: Intake Manifold Installation Note

Install the intake manifold. See INTAKE MANIFOLD under AIR INDUCTION SYSTEMS.

Item 3: EGR System Module Installation Note

Connect the EGR system module-to-exhaust manifold tube to the EGR system module. See Fig 3. Install the vacuum harness. See Fig 2.
