Multifunction Switch, Lamp Portion
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Multifunction Switch, Lamp Portion

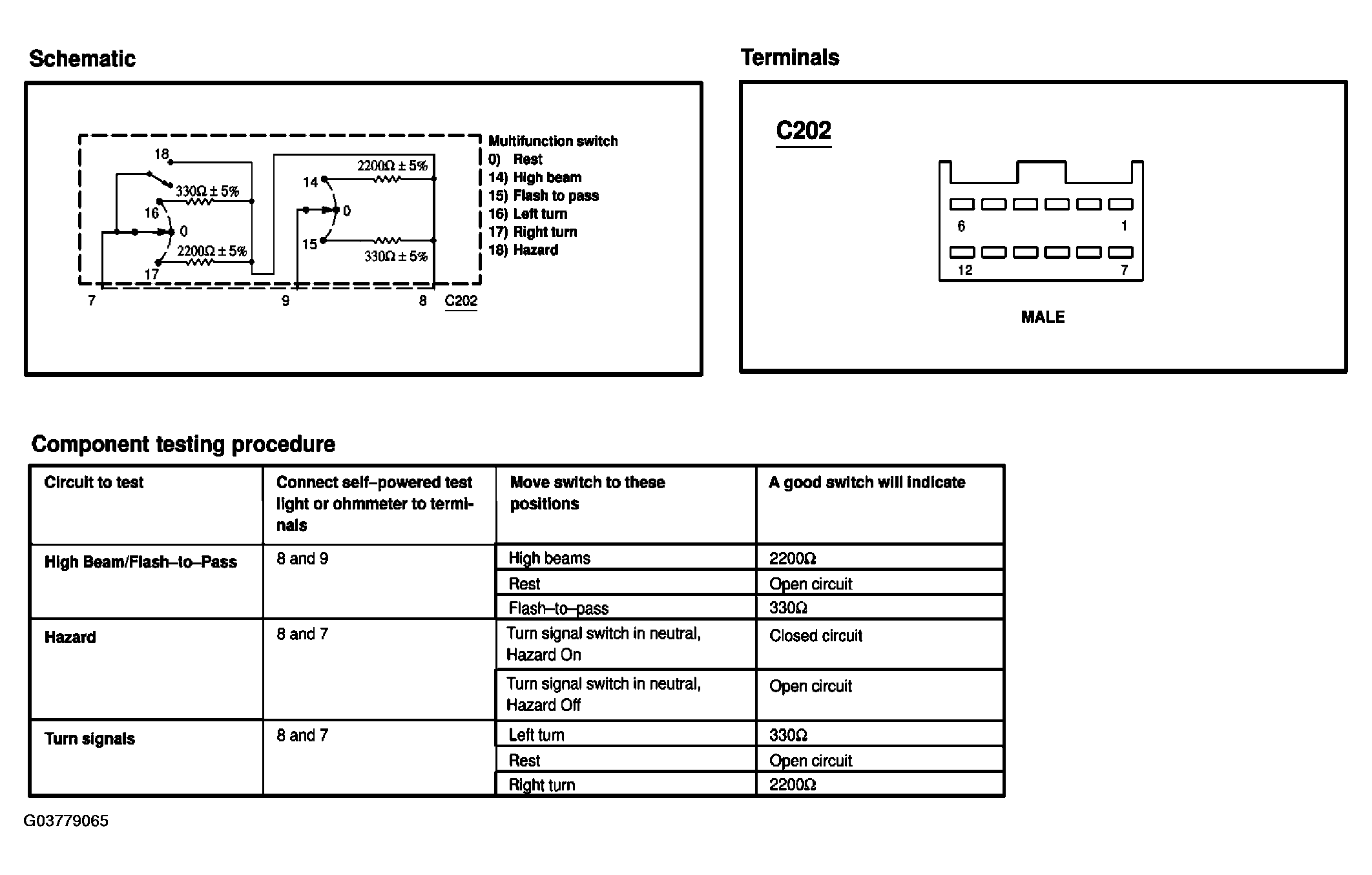

Fig 1: Testing Multifunction Switch - Lamp Portion
Courtesy of FORD MOTOR CO.
