Test B

PINPOINT TEST B: A SINGLE POWER WINDOW IS INOPERATIVE - PASSENGER FRONT, LEFT REAR OR RIGHT REAR

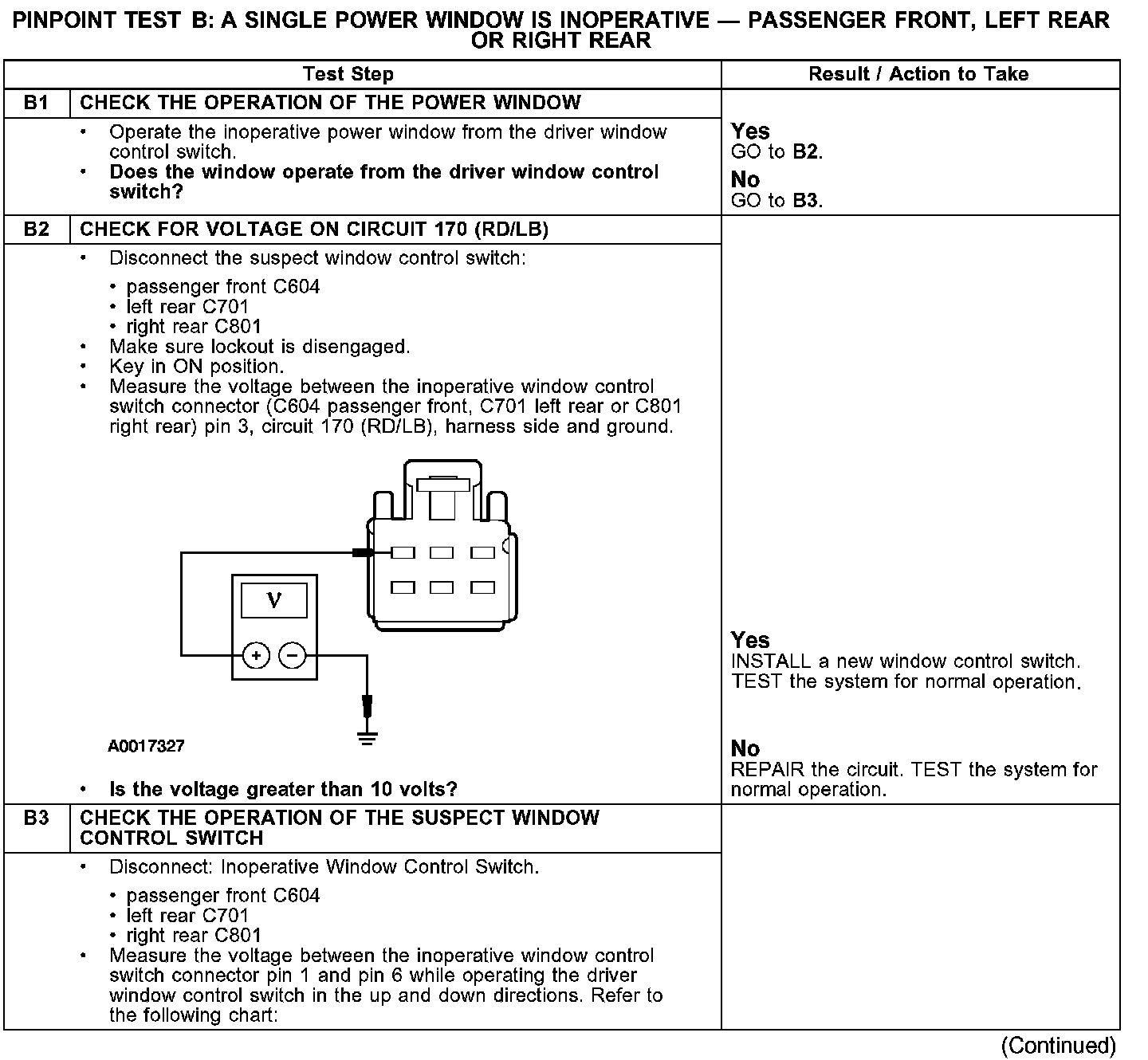

Test B1-B3:

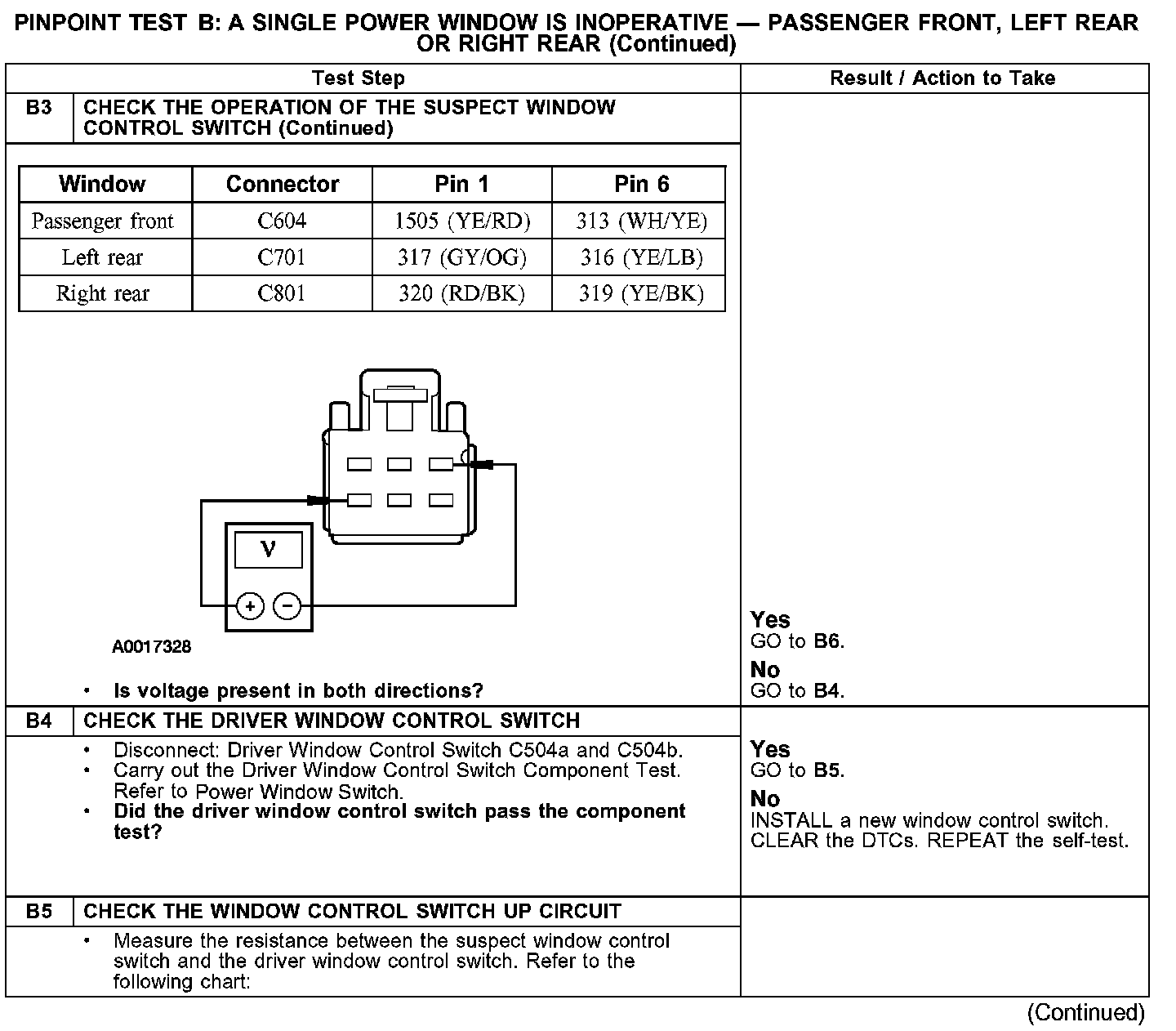

Test B3-B5:

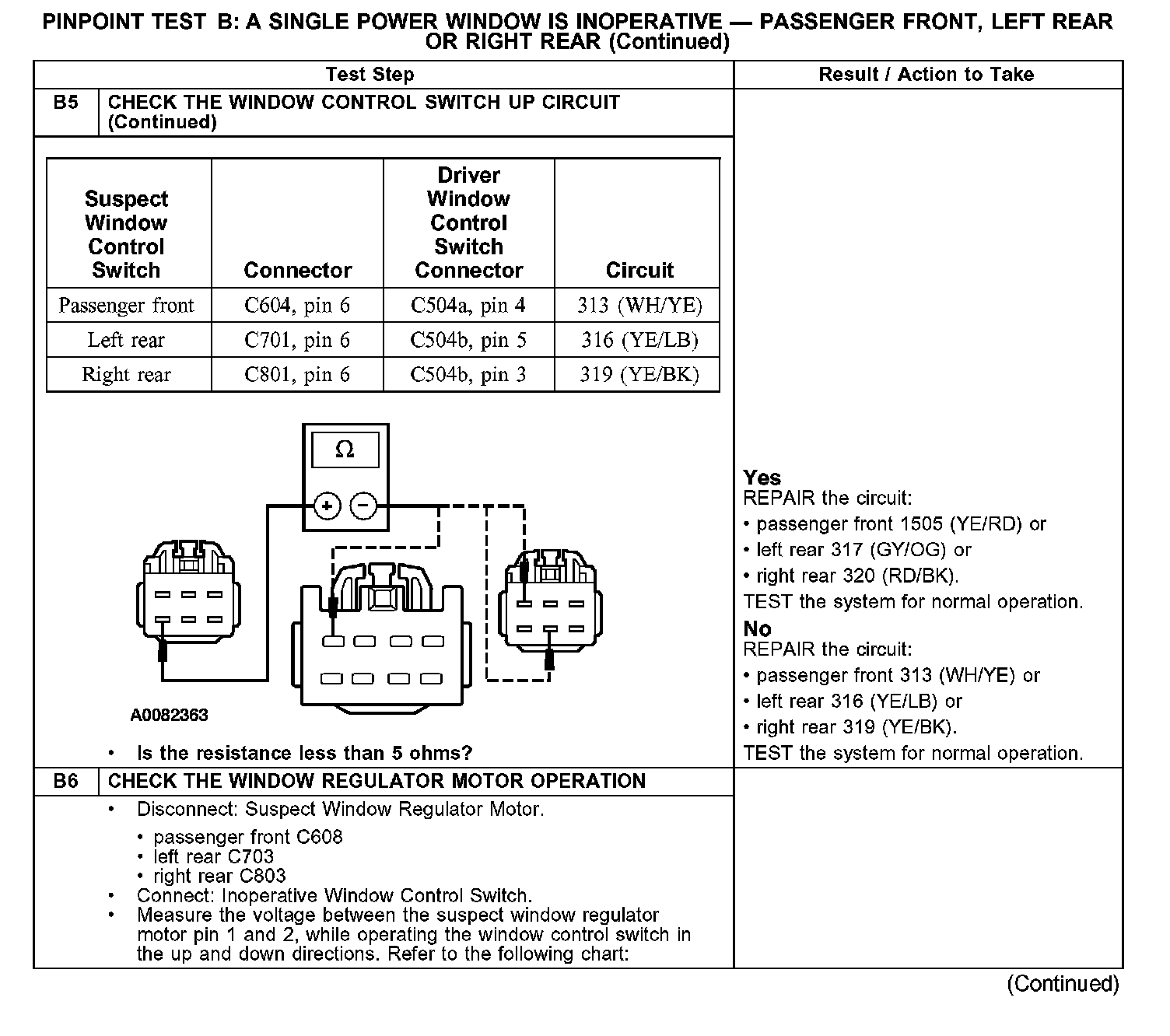

Test B5-B6:

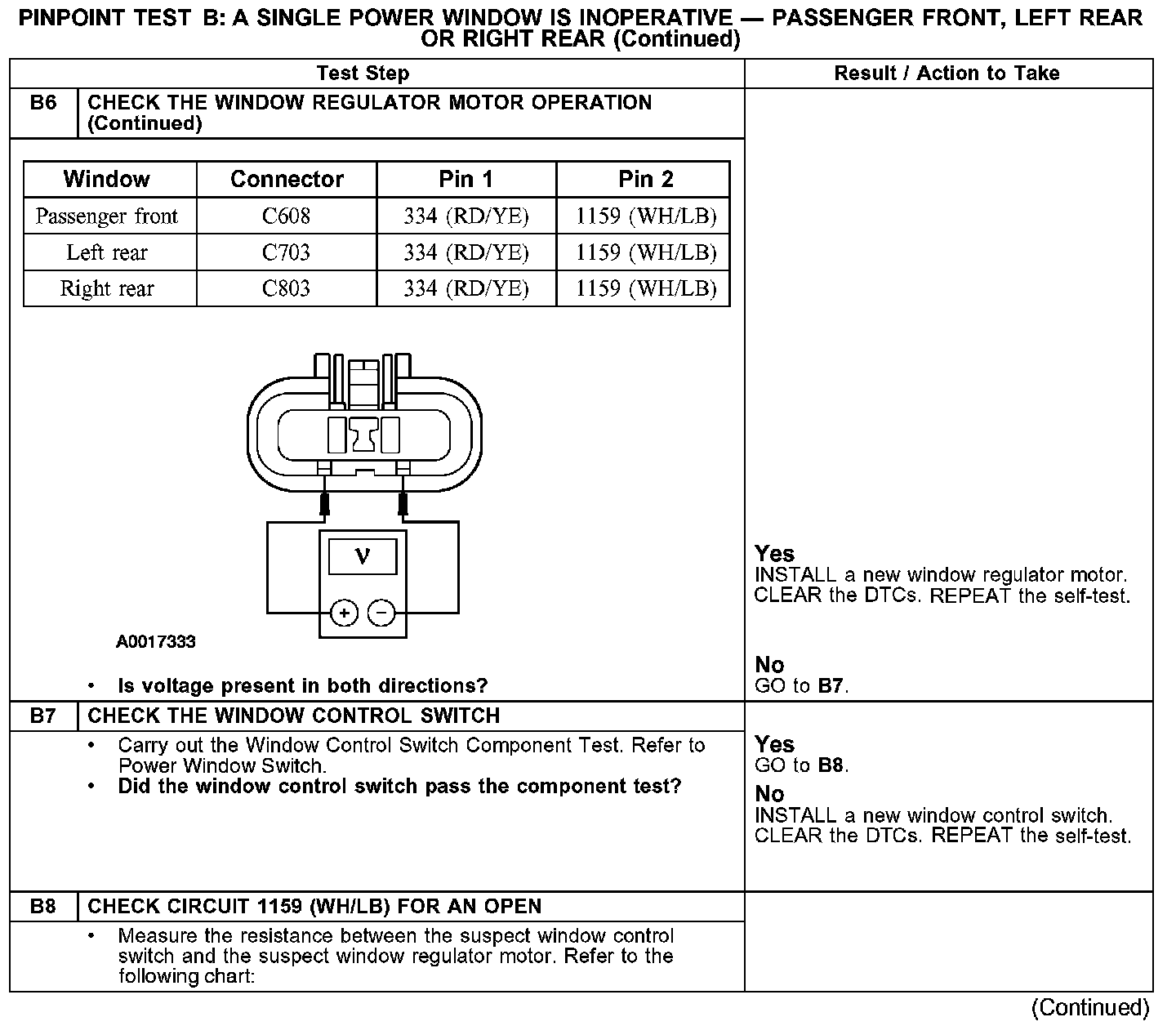

Test B6-B8:

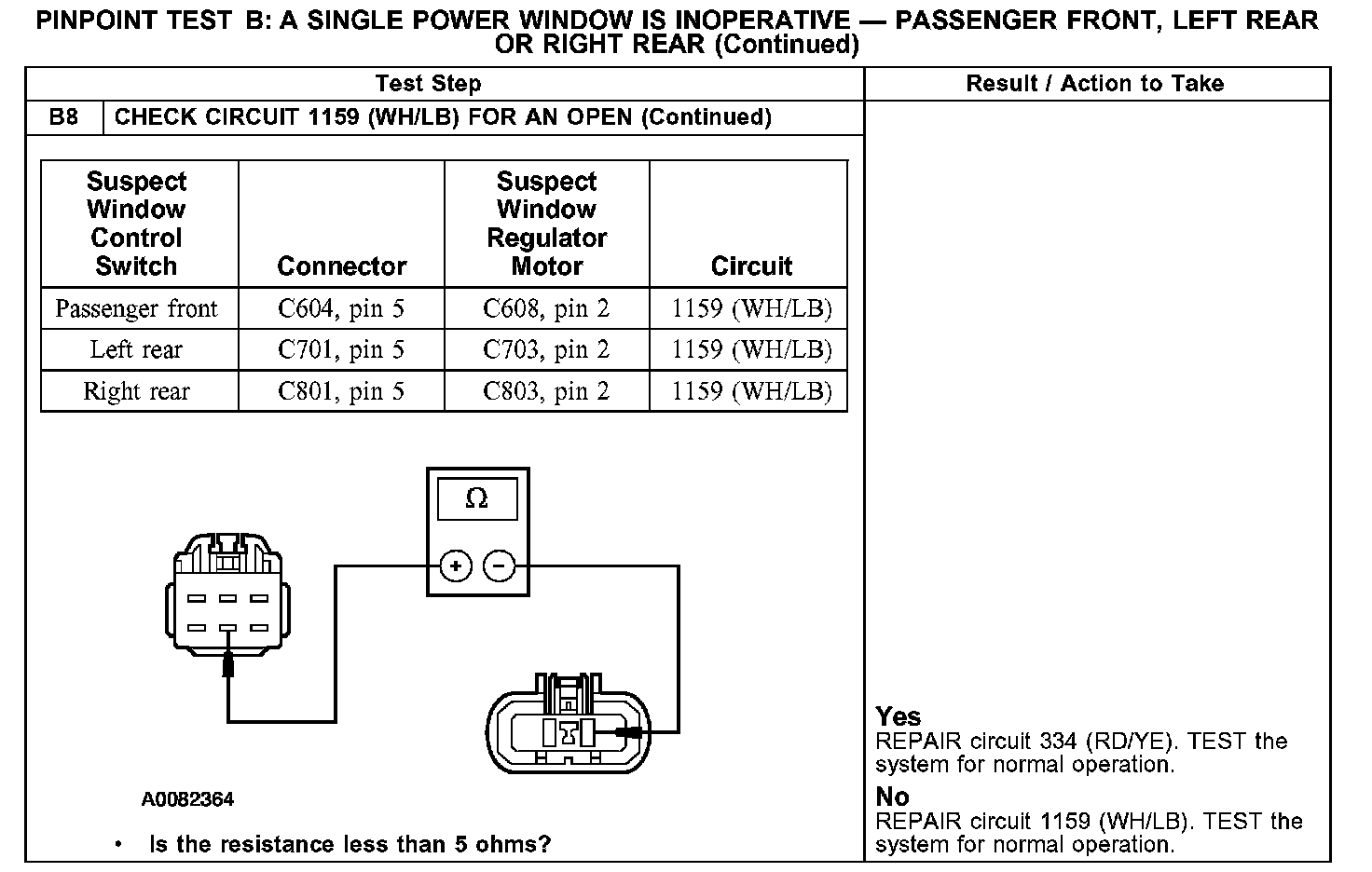

Test B8 Continued:
