Digital Transmission Range (TR) Sensor: Removal

  1. Place the transaxle range selector lever in NEUTRAL.
    Fig 1: Placing Transaxle Range Selector Lever In Neutral
    G01361630Courtesy of FORD MOTOR CO.
  2. Disconnect the battery ground cable (14301). For additional information, refer to BATTERY, MOUNTING AND CABLES .
  3. Disconnect the mass air flow (MAF) sensor and the breather tubes.

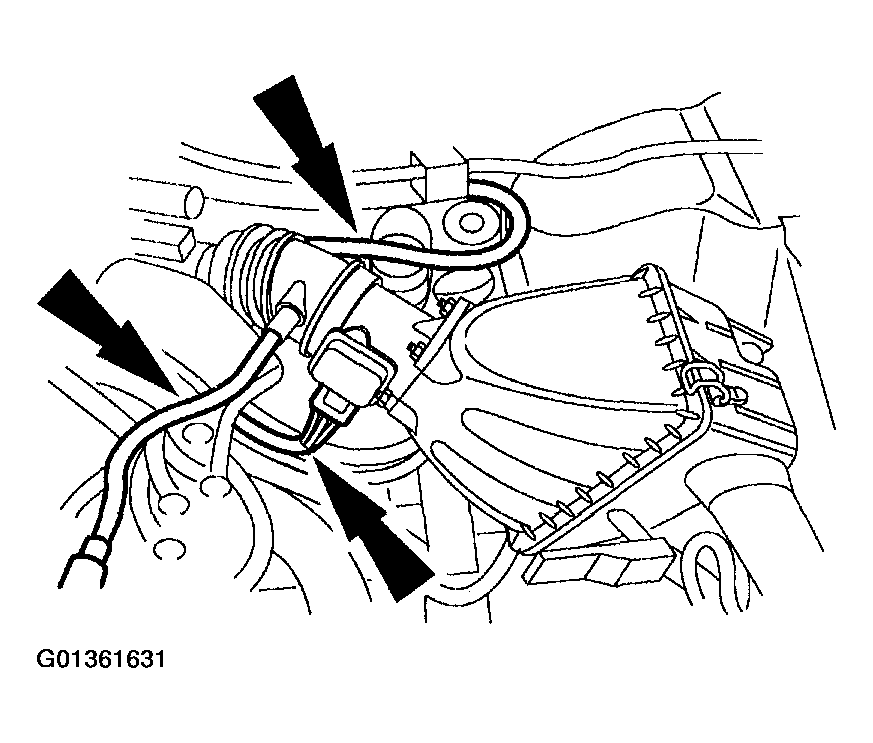

    Fig 2: Disconnecting Mass Air Flow (MAF) Sensor And Breather Tubes
    G01361631Courtesy of FORD MOTOR CO.
  4. Remove the engine air cleaner.

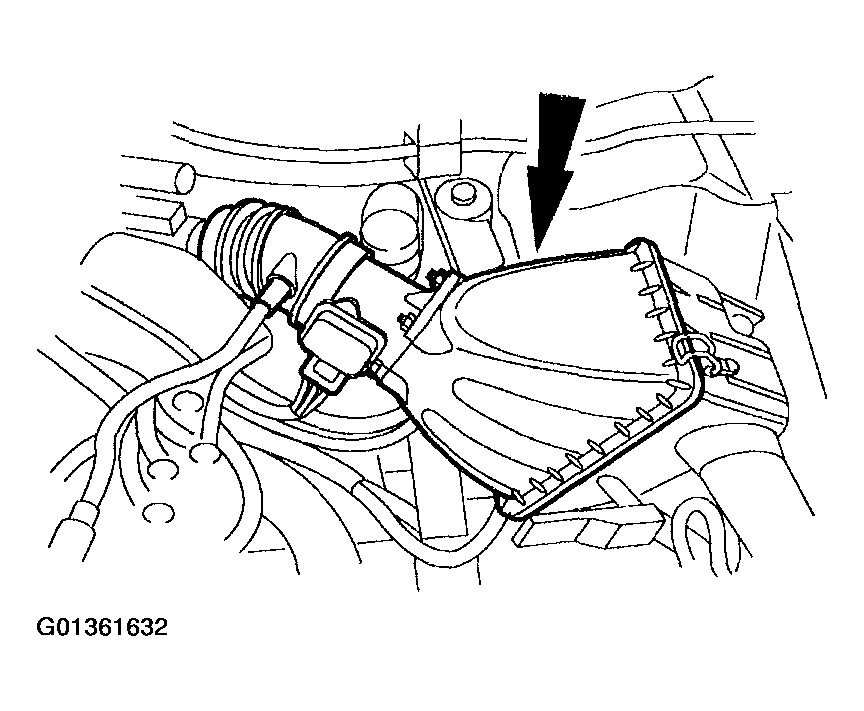

    Fig 3: Removing Engine Air Cleaner
    G01361632Courtesy of FORD MOTOR CO.
  5. Remove the air filter assembly.

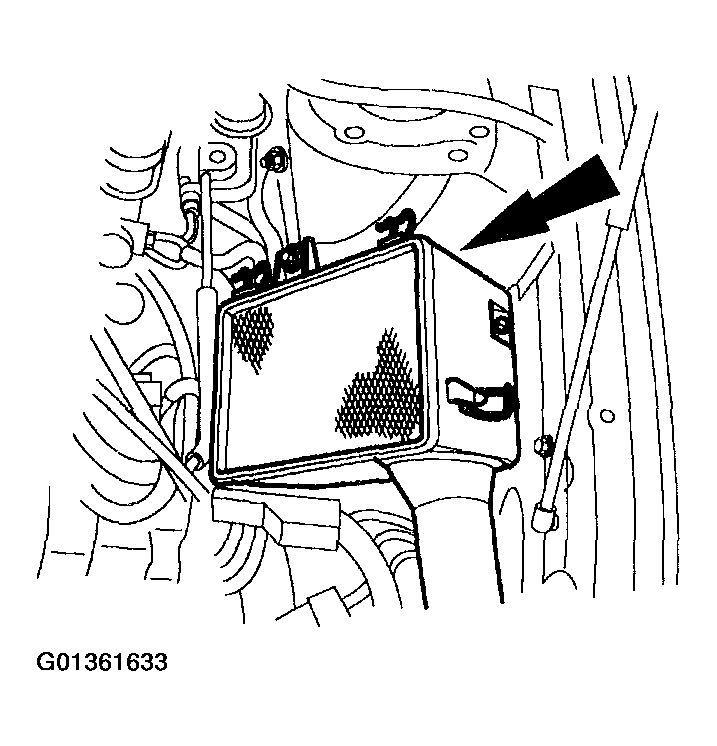

    Fig 4: Removing Air Filter Assembly
    G01361633Courtesy of FORD MOTOR CO.
  6. Disconnect the connector.

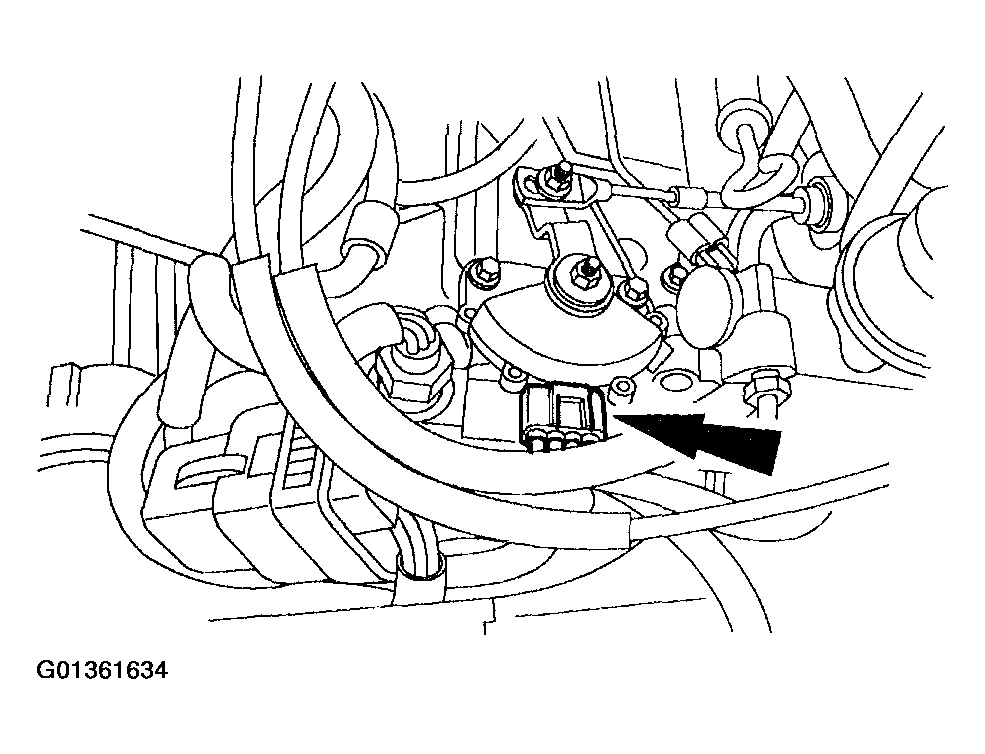

    Fig 5: Disconnecting Connector
    G01361634Courtesy of FORD MOTOR CO.
  7. Remove the manual control lever and cable.
    1. Remove the nut.
    2. Remove the manual control lever and cable.

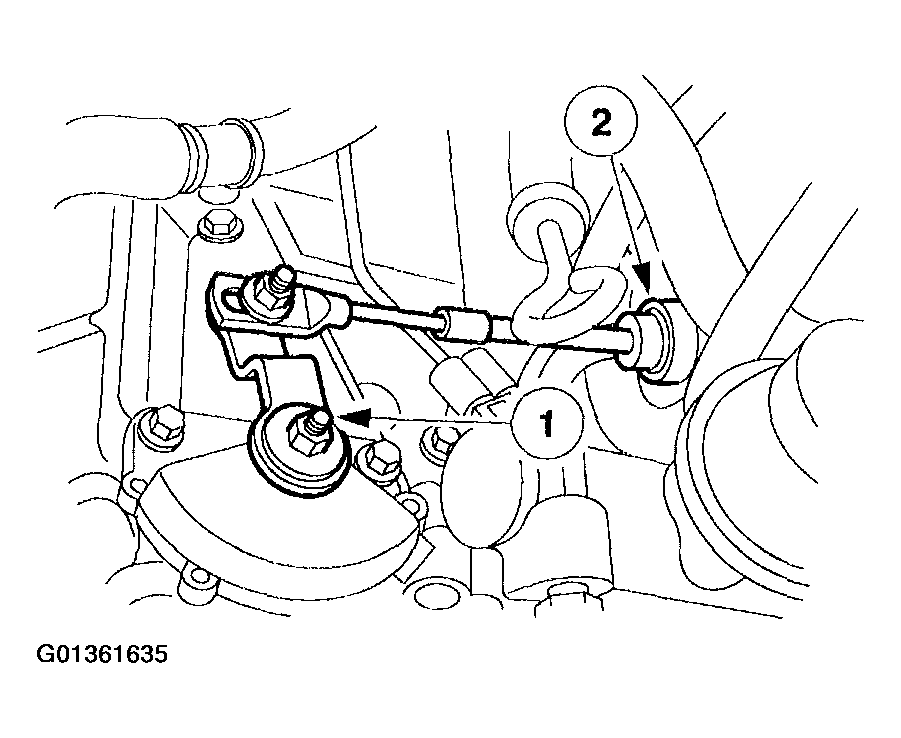

      Fig 6: Removing Manual Control Lever And Cable
      G01361635Courtesy of FORD MOTOR CO.
  8. Remove the digital TR sensor.

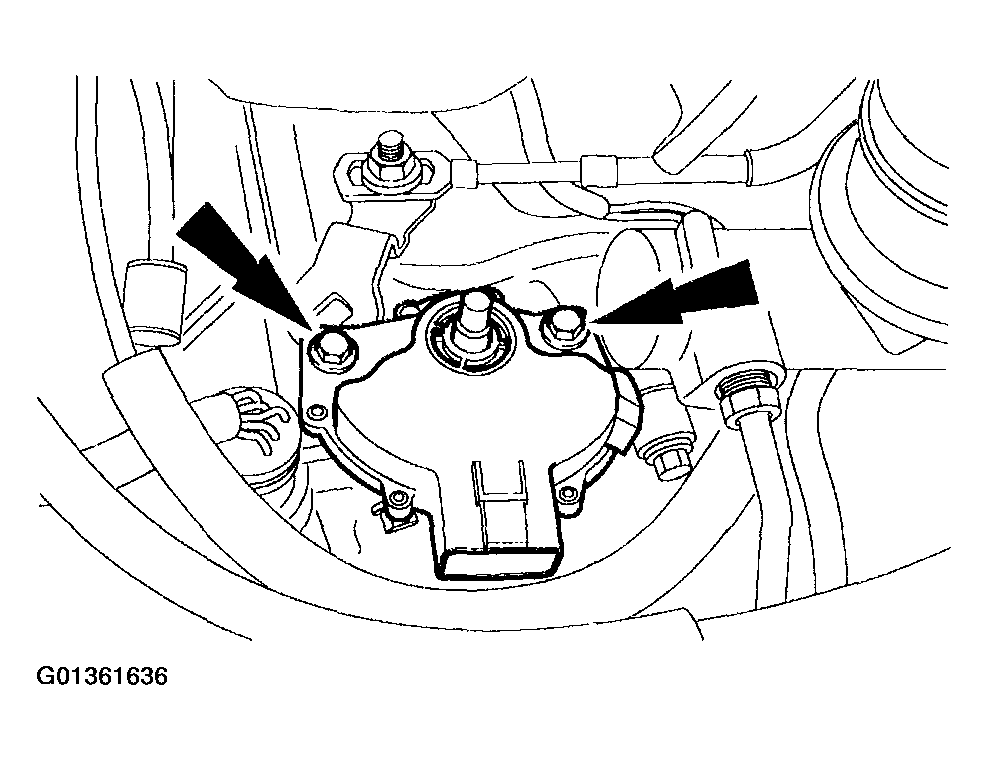

    Fig 7: Removing Digital TR Sensor
    G01361636Courtesy of FORD MOTOR CO.
