Special Testing Procedures: Notes

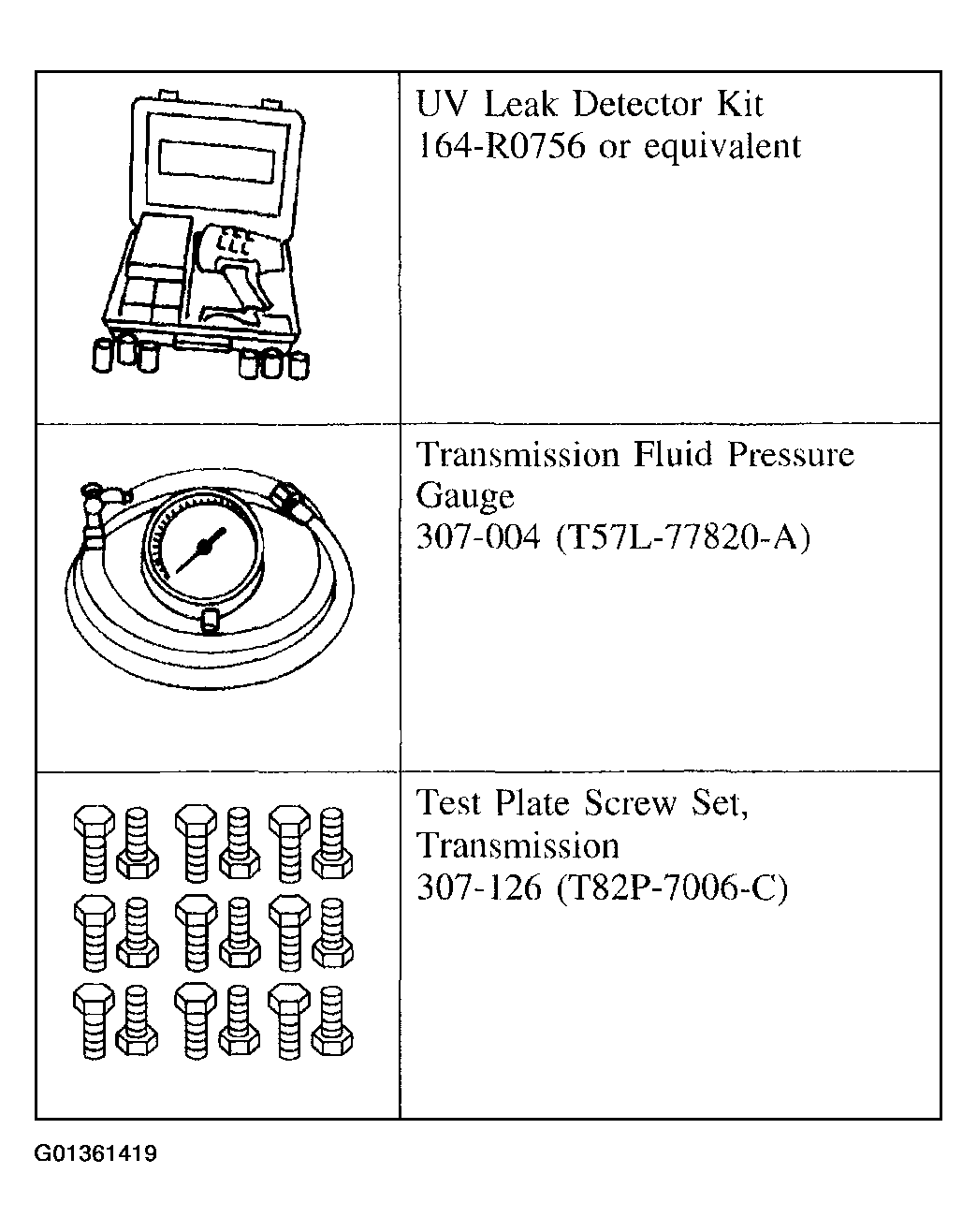

Fig 1: Special Tool(s) (1 Of 2)
G01361419Courtesy of FORD MOTOR CO.

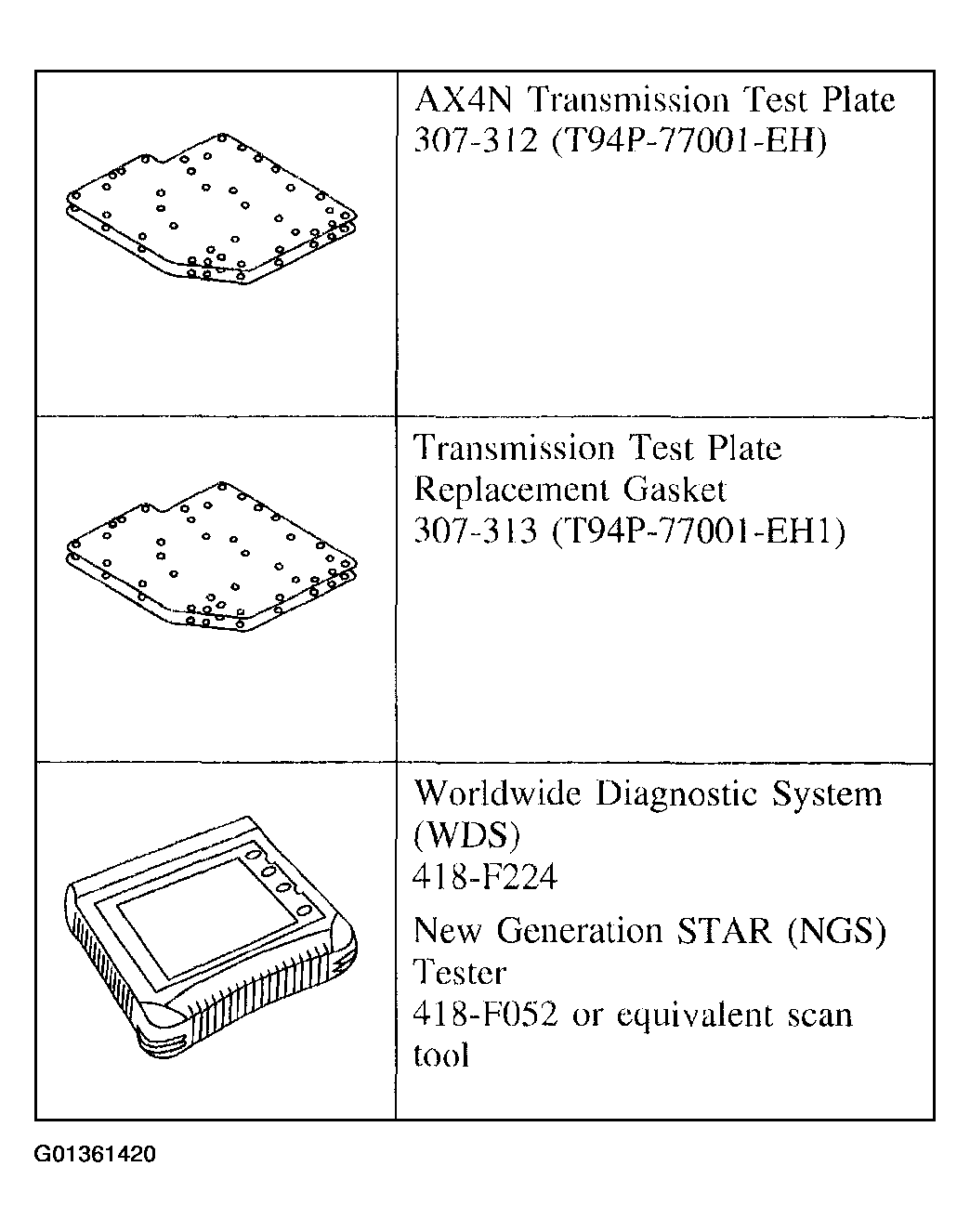

Fig 2: Special Tool(s) (2 Of 2)
G01361420Courtesy of FORD MOTOR CO.

The special tests are designed to aid the technician in diagnosing the hydraulic and mechanical portions of the transaxle.
