Pinpoint Test A: Drift Left Or Right

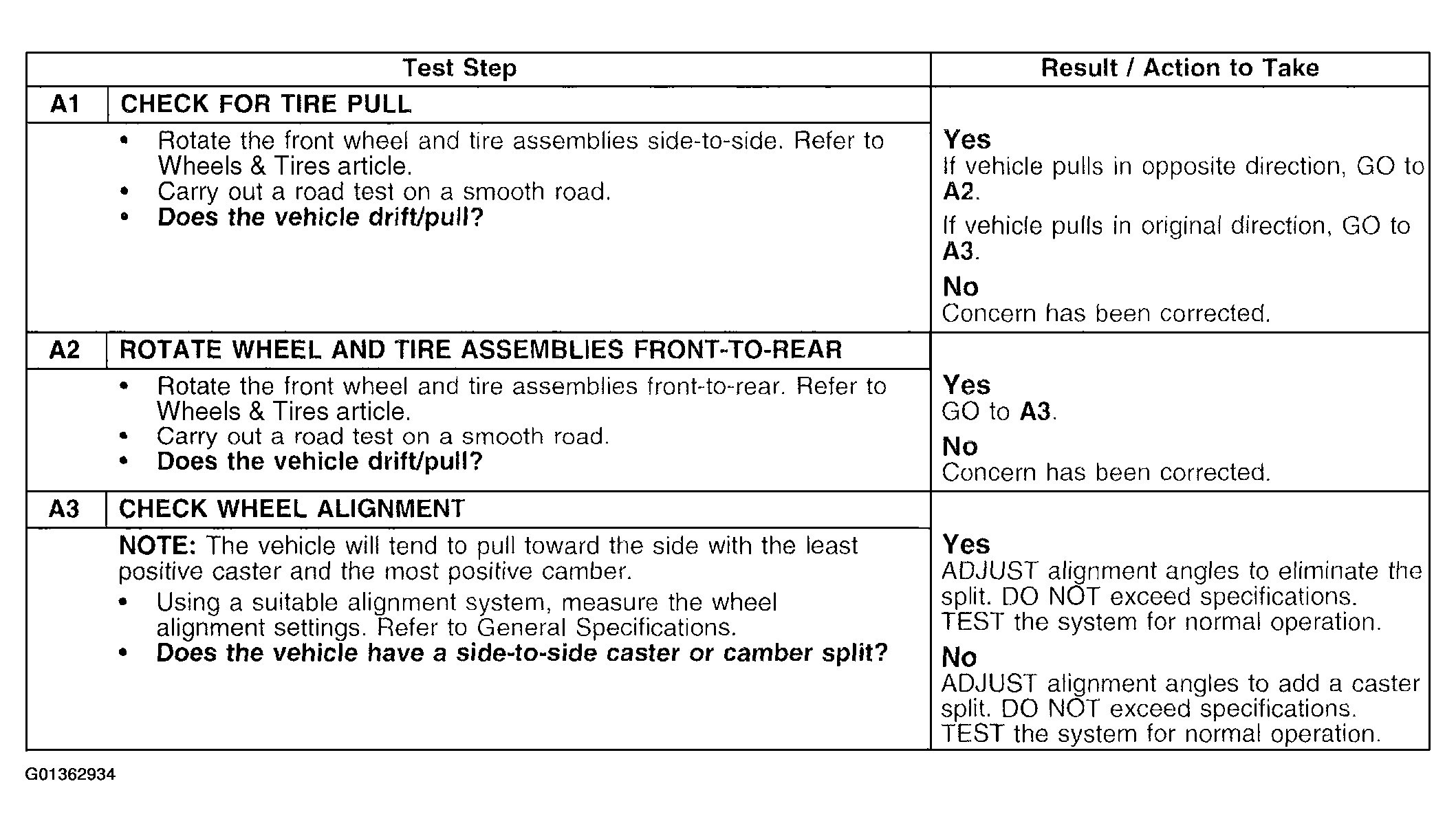

Fig 1: Pinpoint Test A: Drift Left Or Right (Step A1 To A3)
G01362934Courtesy of FORD MOTOR CO.
