Removal And Installation

  1. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
  2. Remove the bolt and the front wheel speed sensor.

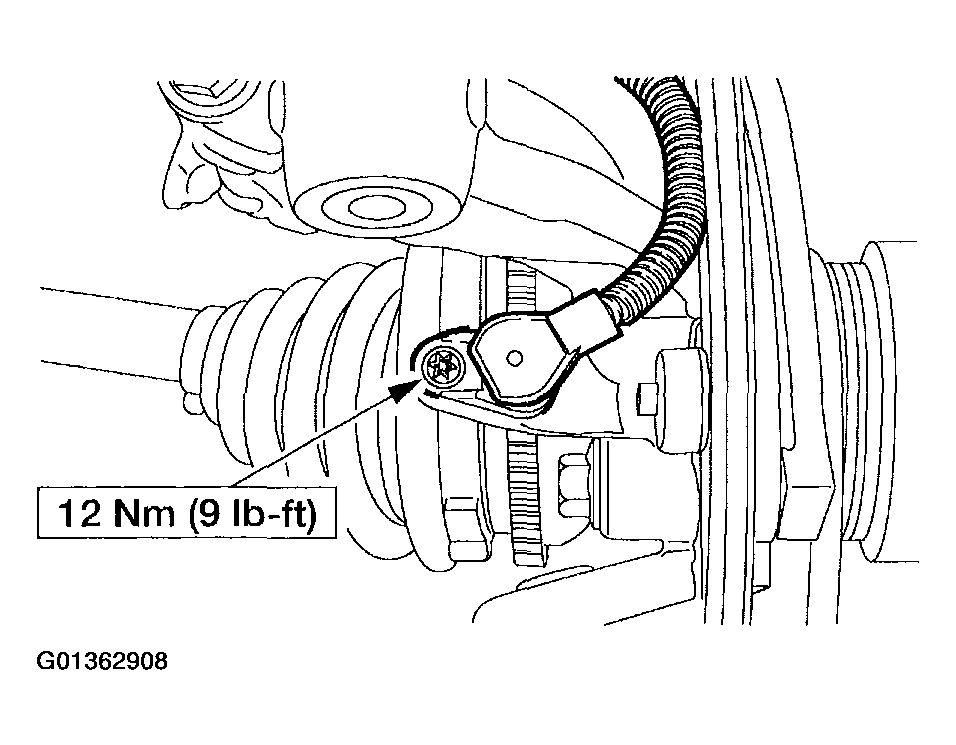

    Fig 1: Removing Bolt And Front Wheel Speed Sensor
    G01362908Courtesy of FORD MOTOR CO.
  3. Disengage the wiring from the routing brackets.

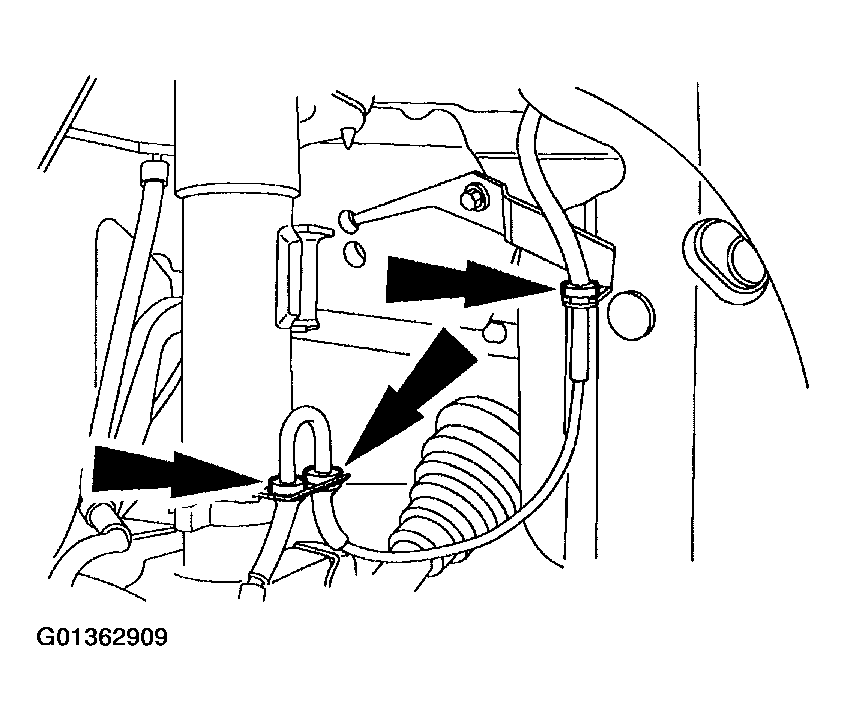

    Fig 2: Disengaging Wiring From Routing Brackets
    G01362909Courtesy of FORD MOTOR CO.
  4. Remove the fender splash shield retainer.
    Fig 3: Removing Fender Splash Shield Retainer
    G01362910Courtesy of FORD MOTOR CO.
  5. Pull back on the splash shield and disconnect the wiring.

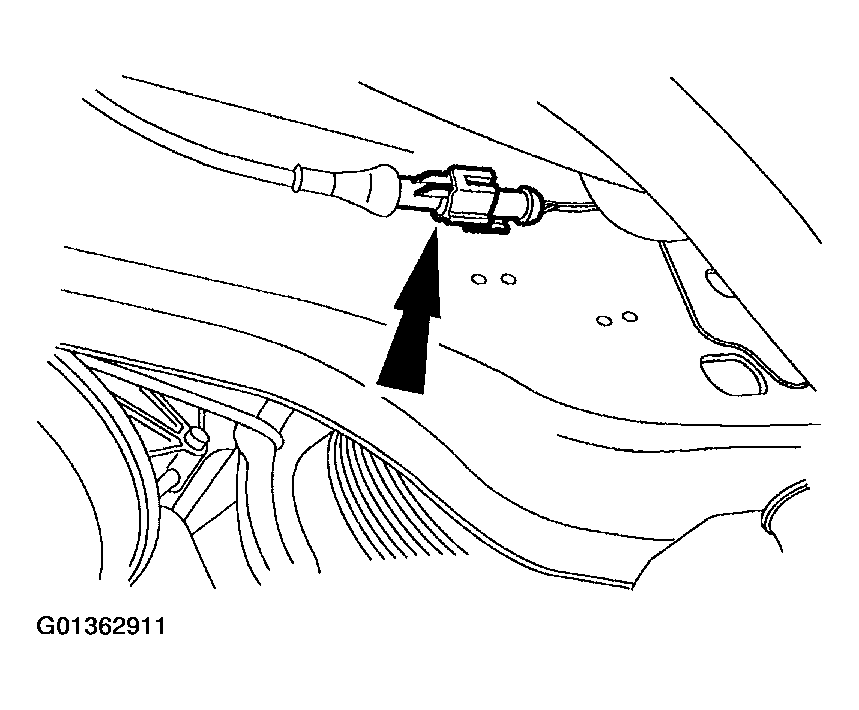

    Fig 4: Disconnecting Wiring
    G01362911Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
