Wheel and Tire - Front: Notes

WARNING: This page is about a different car, the 2004 Lincoln LS and 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

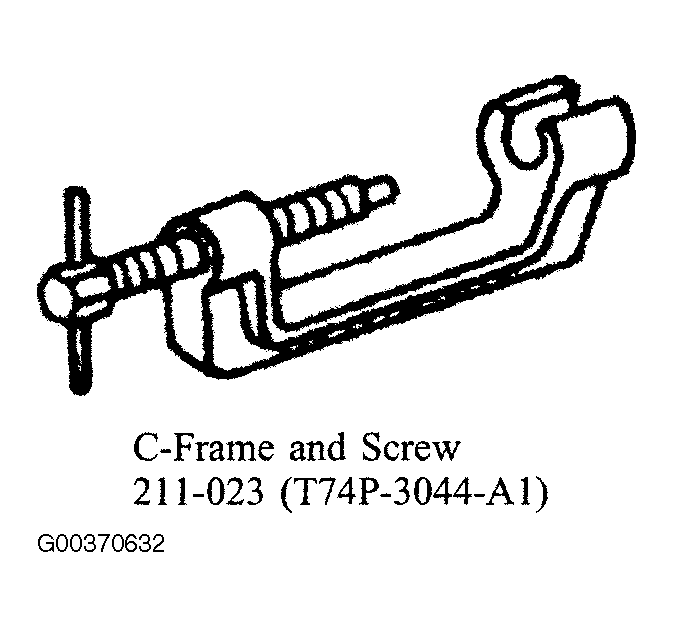

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Remove the components in the order indicated in the following illustration and table.

TO REMOVE INDIVIDUAL COMPONENTS, ONLY CARRY OUT THE LISTED STEPS

Components	Steps
Wheel & Tire Assembly	1-2
Wheel Stud	1-6

To install, reverse the removal procedure.

Fig 2: Identifying Figure Symbols

Courtesy of FORD MOTOR CO.

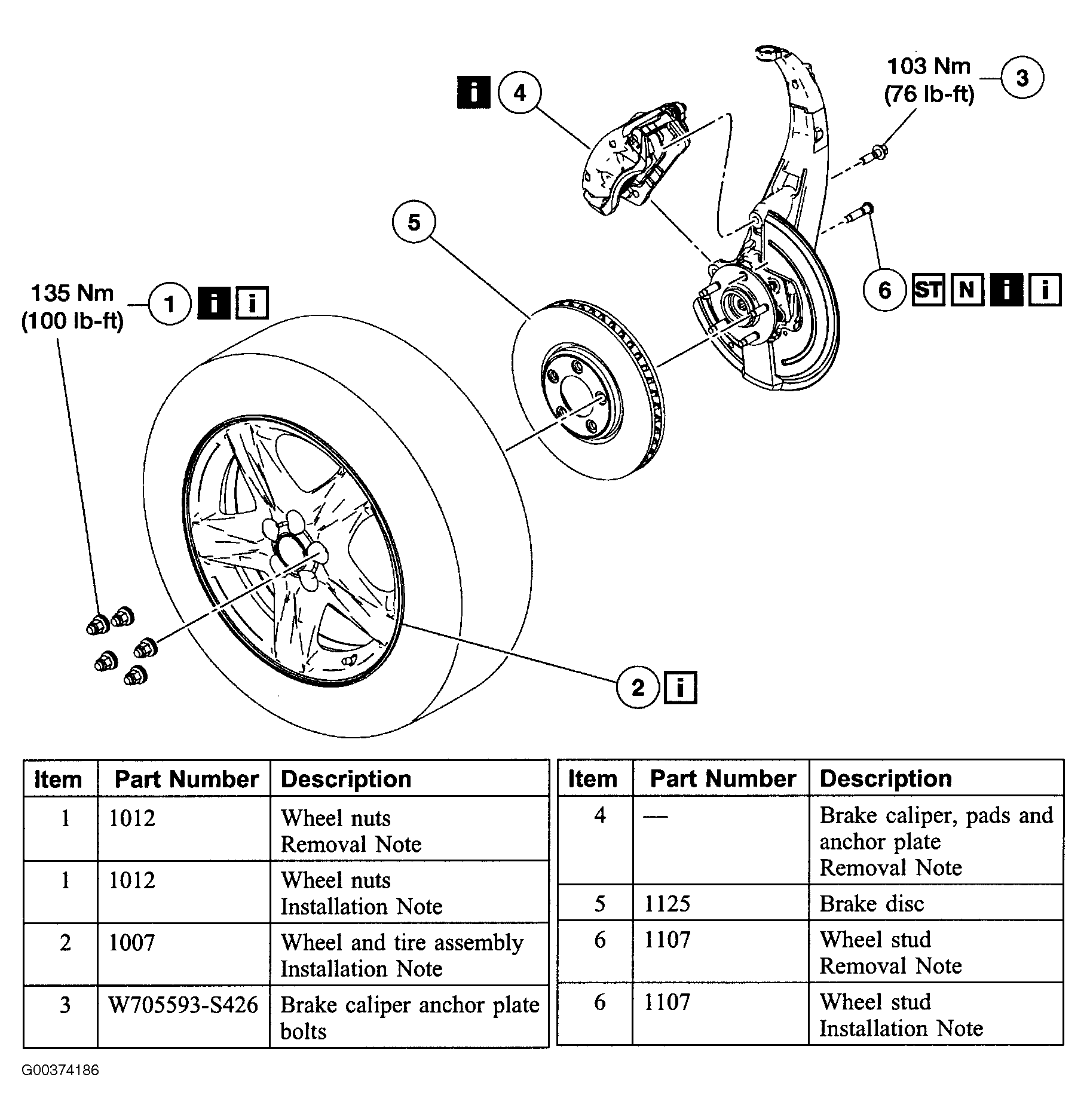

Fig 3: Wheel & Tire

Courtesy of FORD MOTOR CO.
