Test A

PINPOINT TEST A: THE ENGINE DOES NOT CRANK


Test A1-A2:

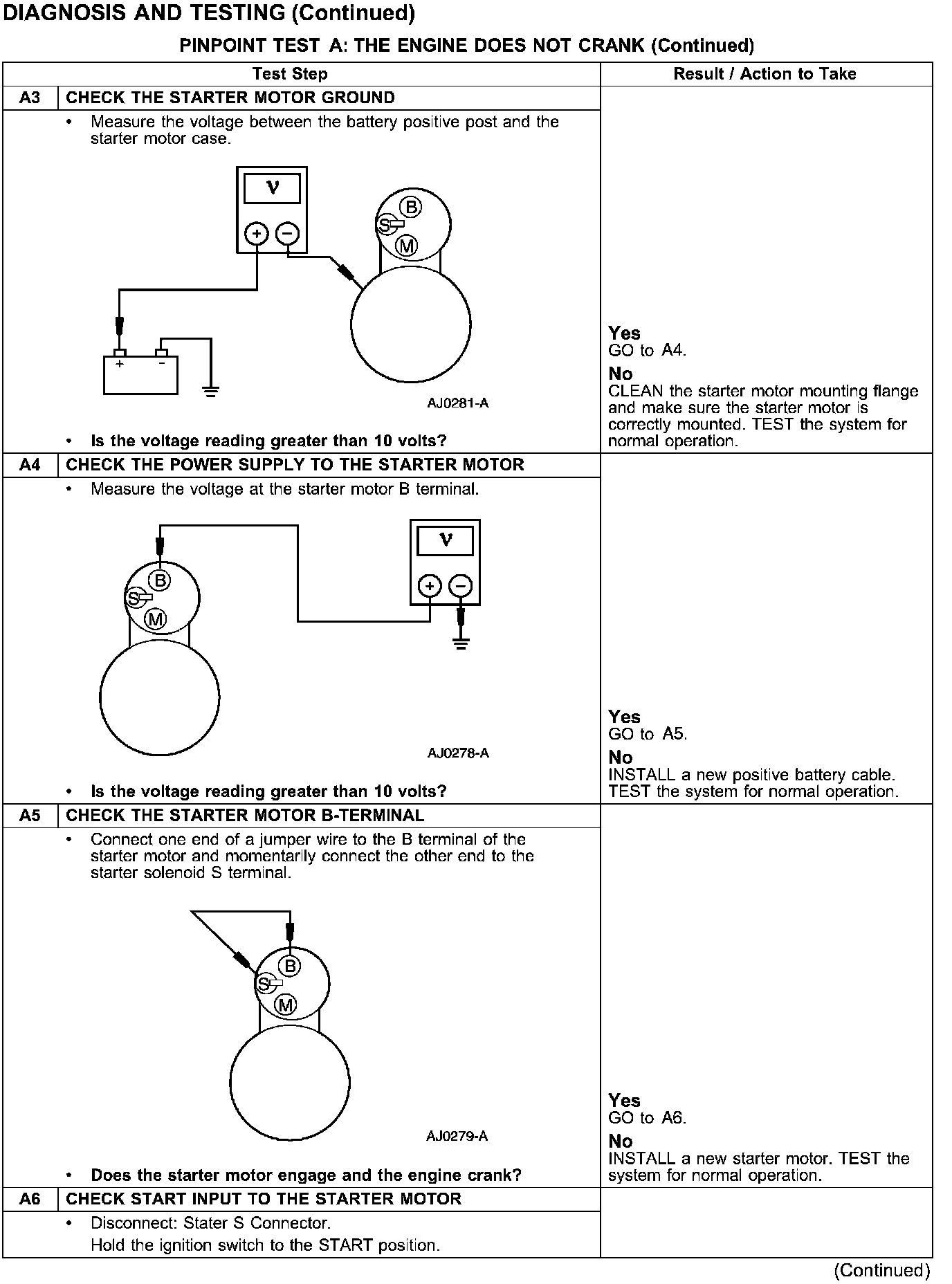

Test A3-A6:

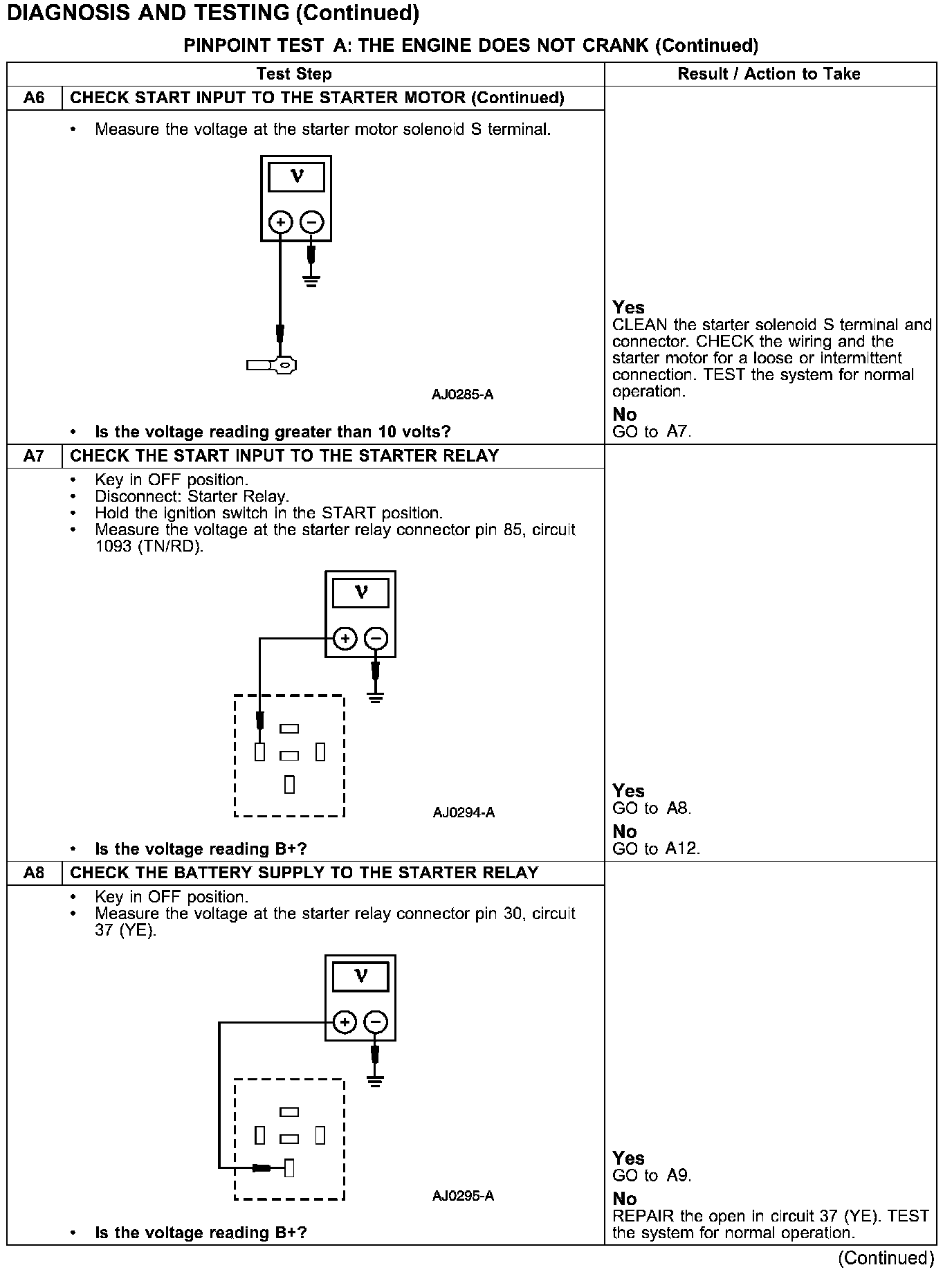

Test A6-A8:

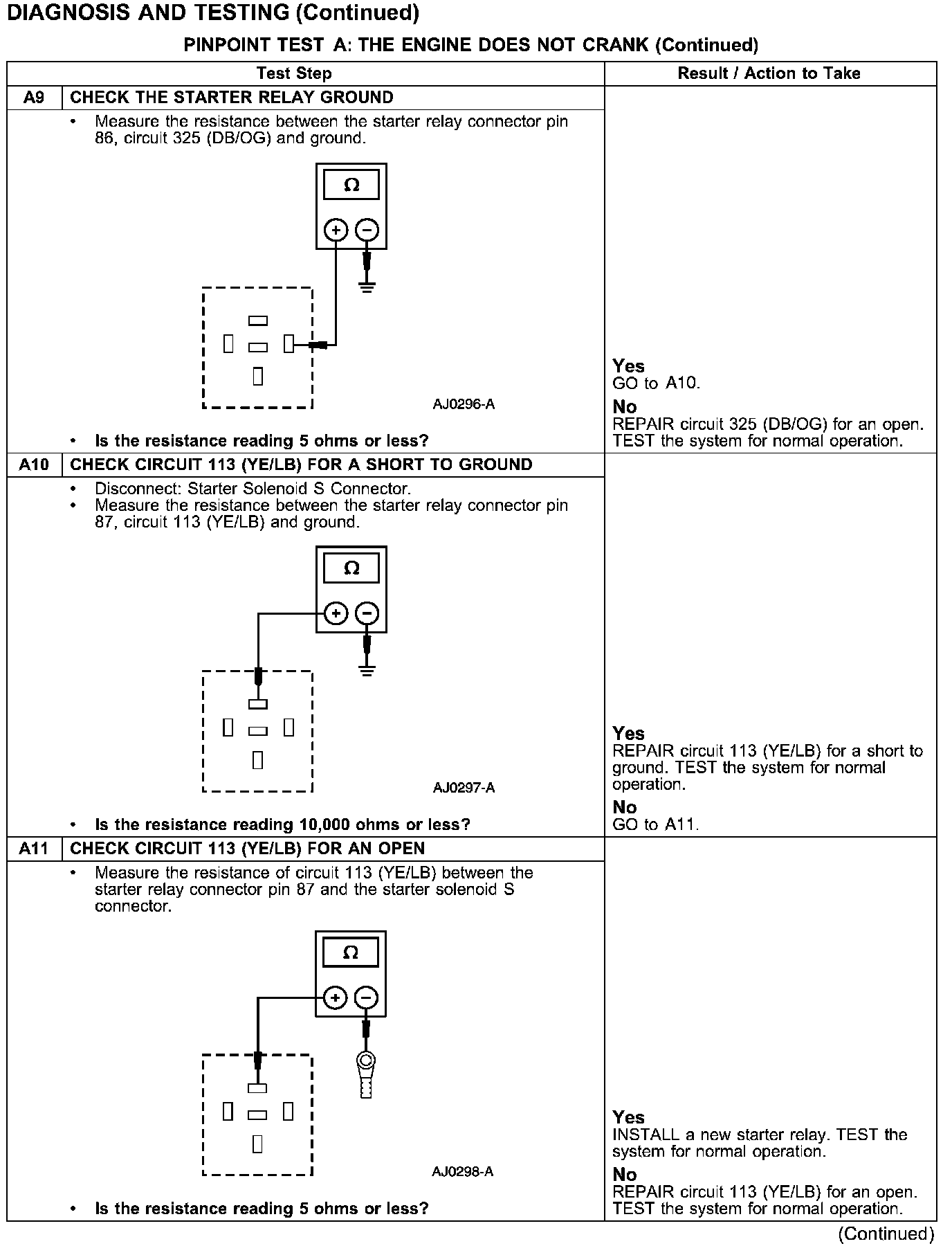

Test A9-A11:






Test A12-A13:

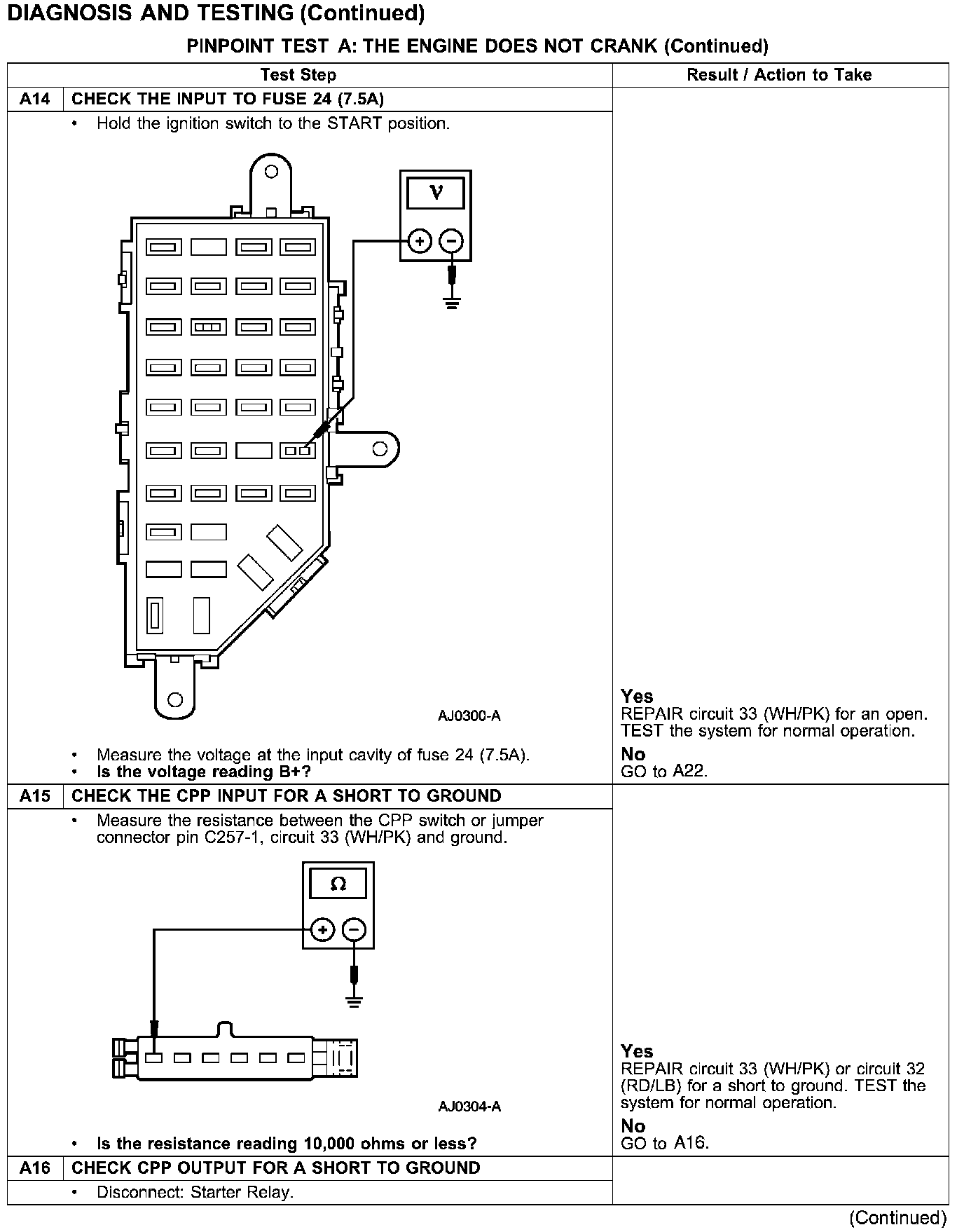

Test A14-A16:

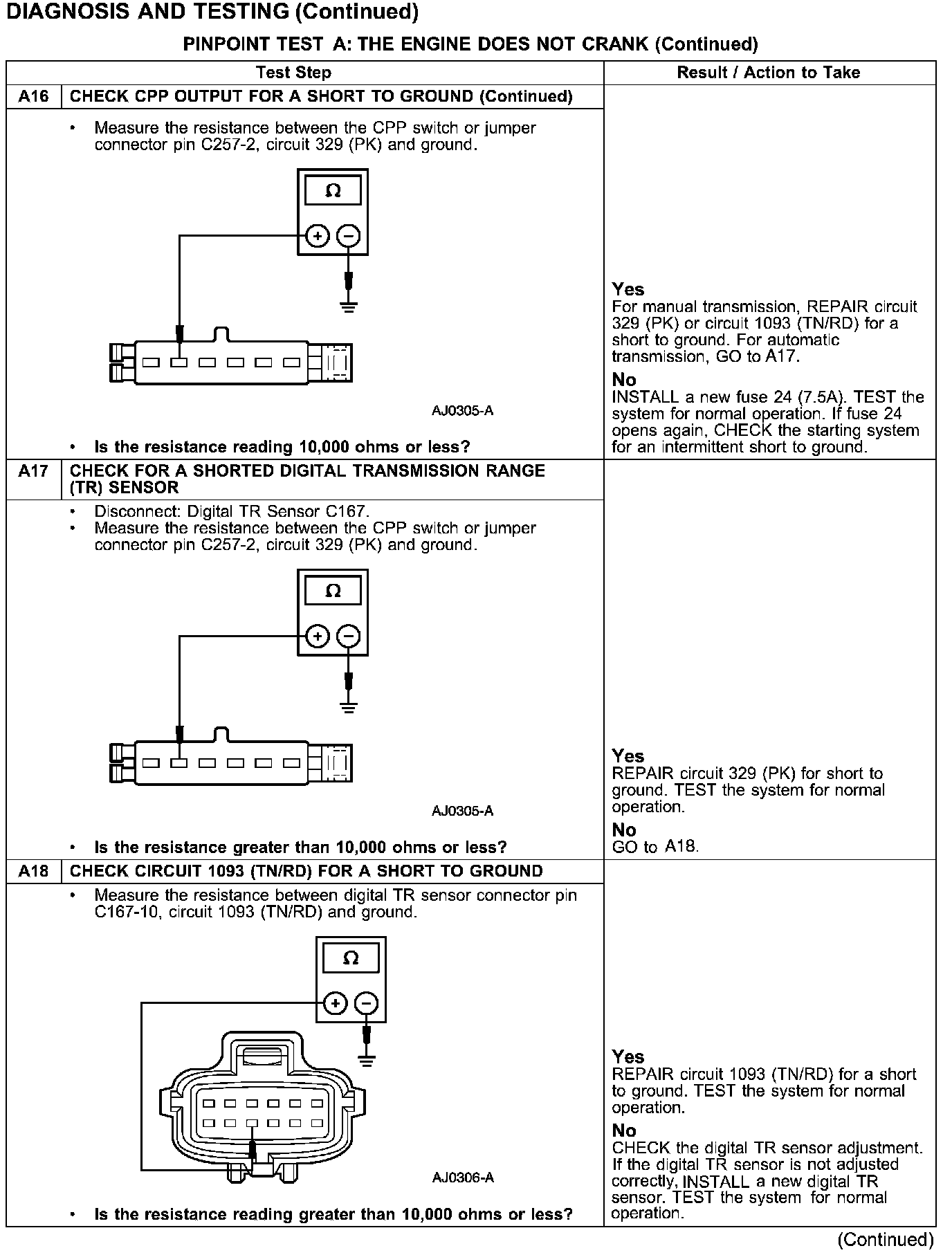

Test A16-A18:

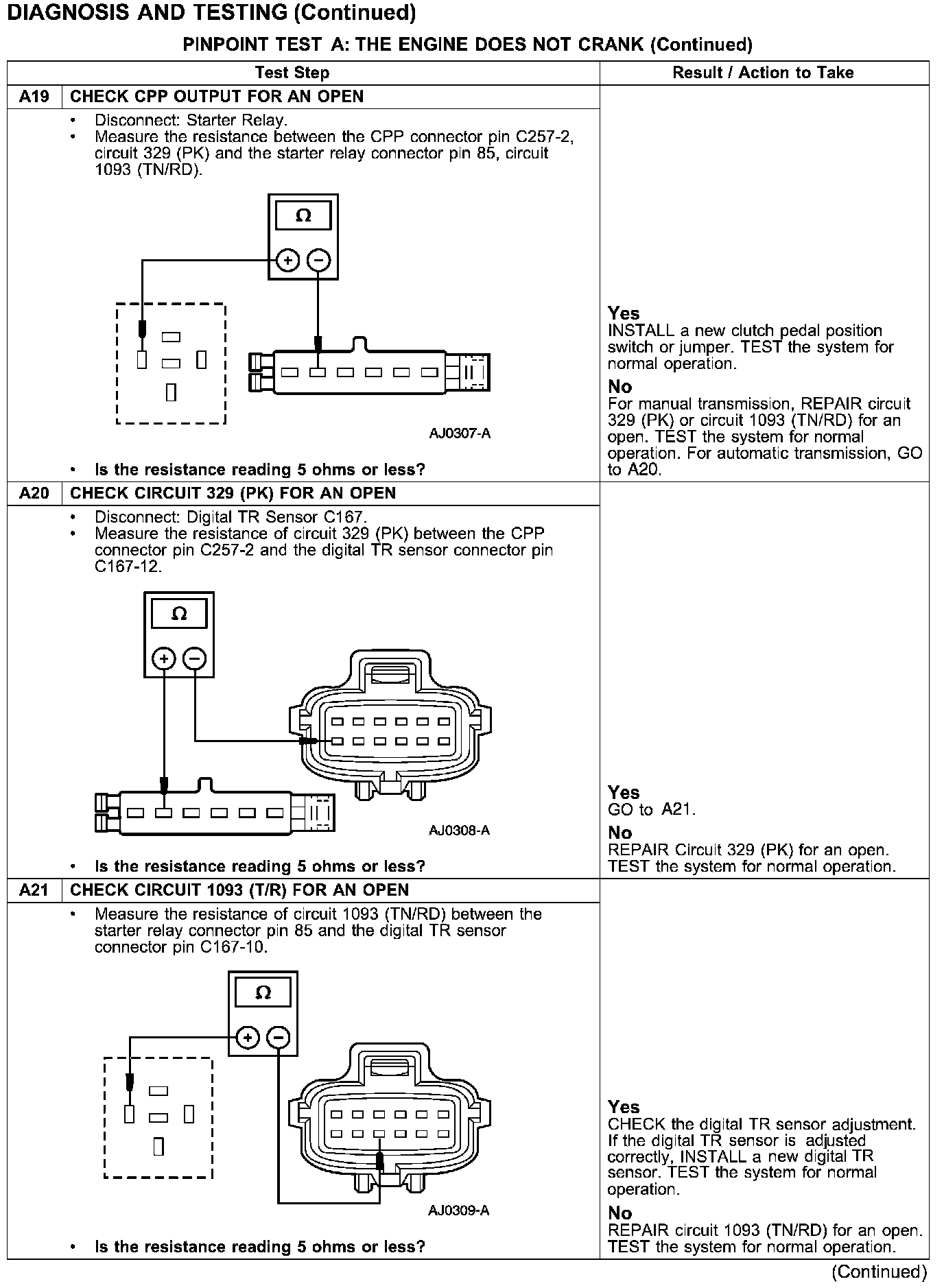

Test A19-A21:

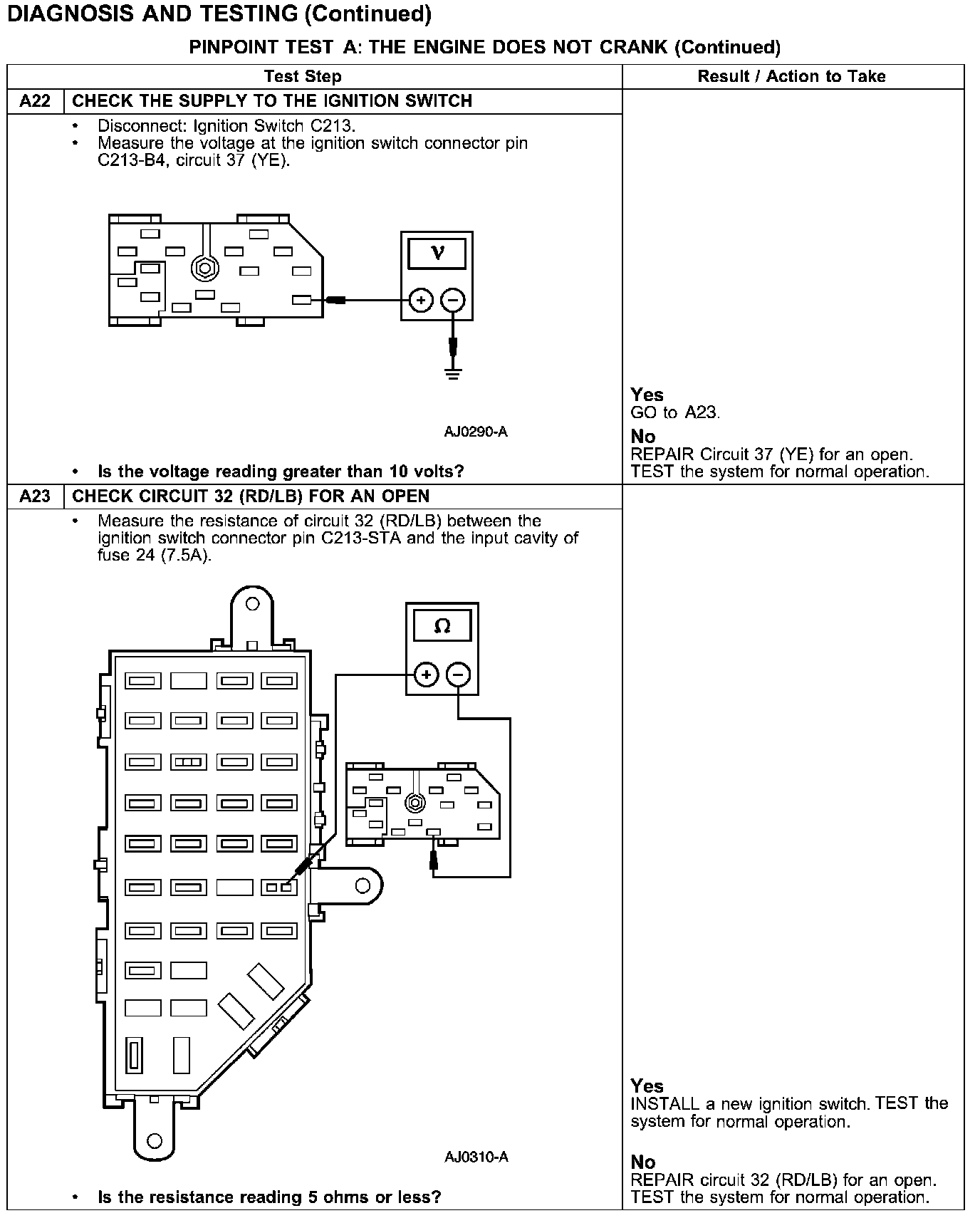

Test A22-A23:
