Test F

PINPOINT TEST F: THE CHARGING SYSTEM WARNING INDICATOR FLICKERS OR IS INTERMITTENT

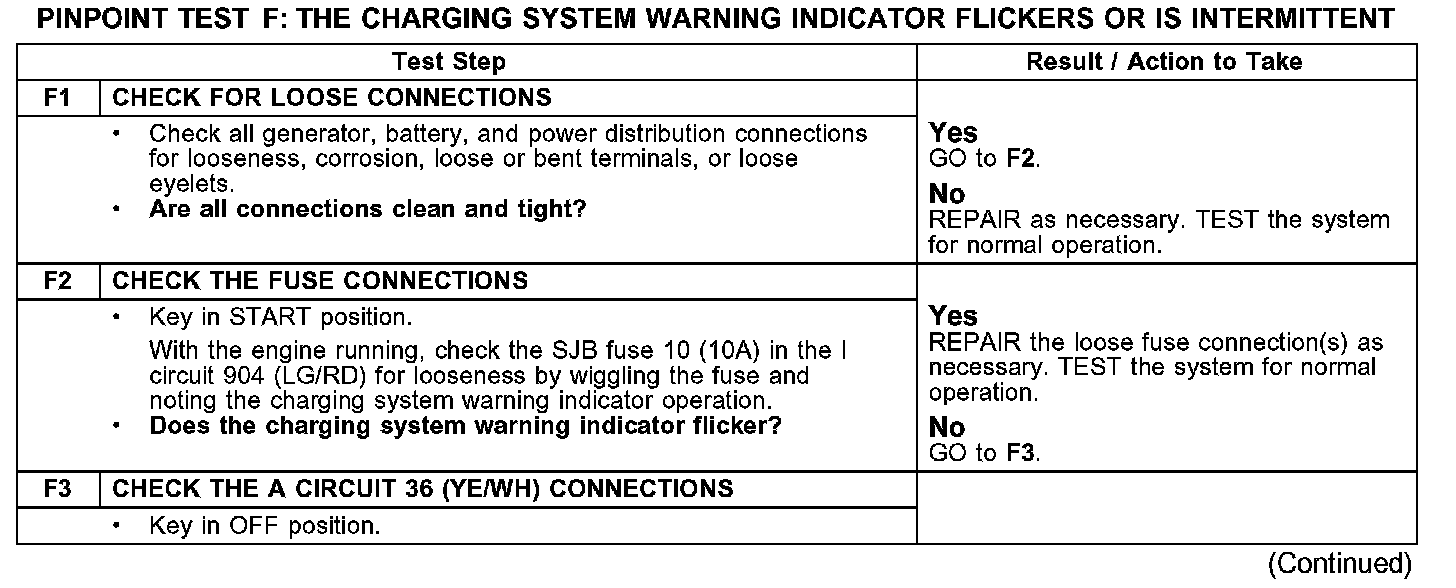

Test F1-F3:

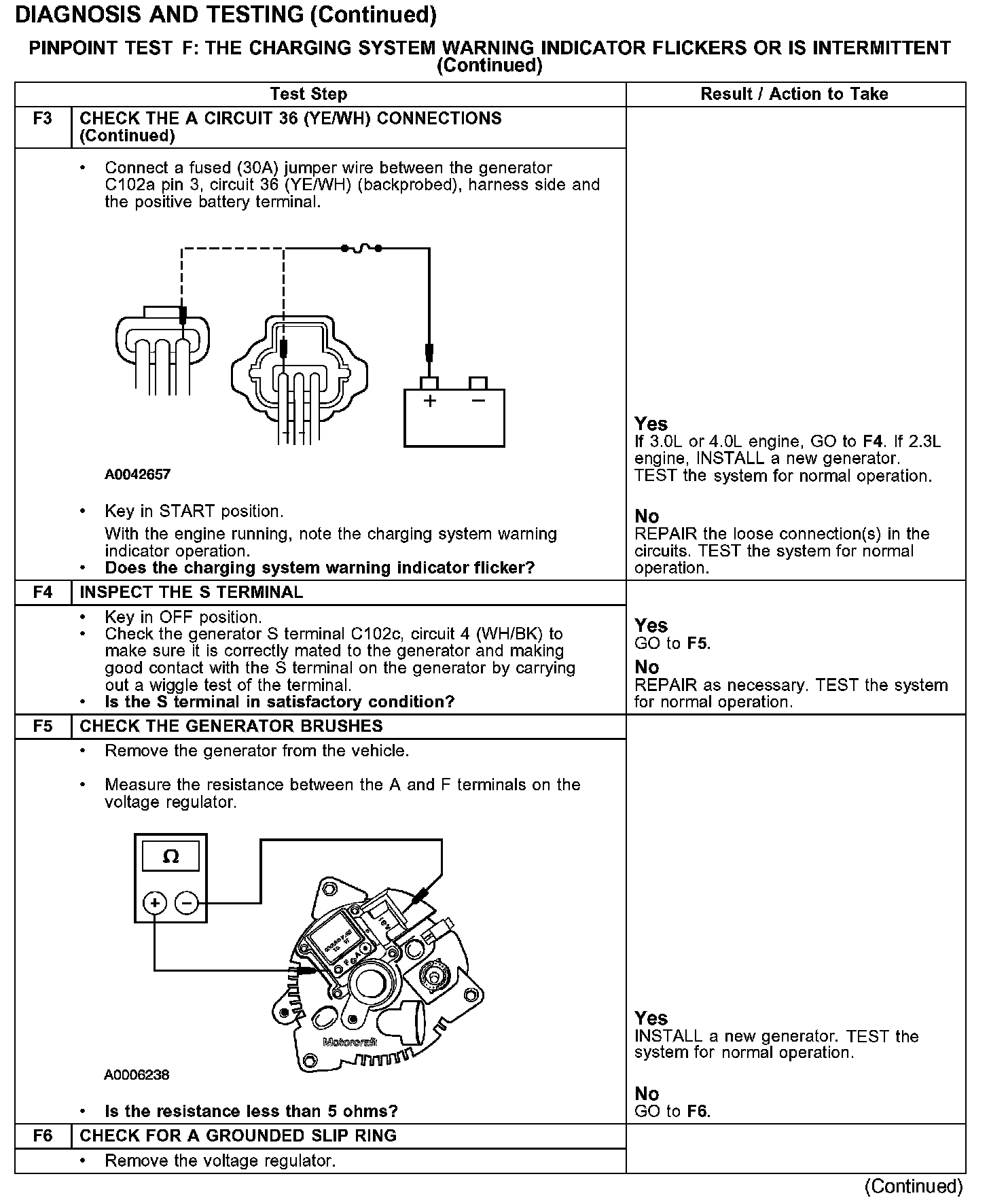

Test F3-F6:

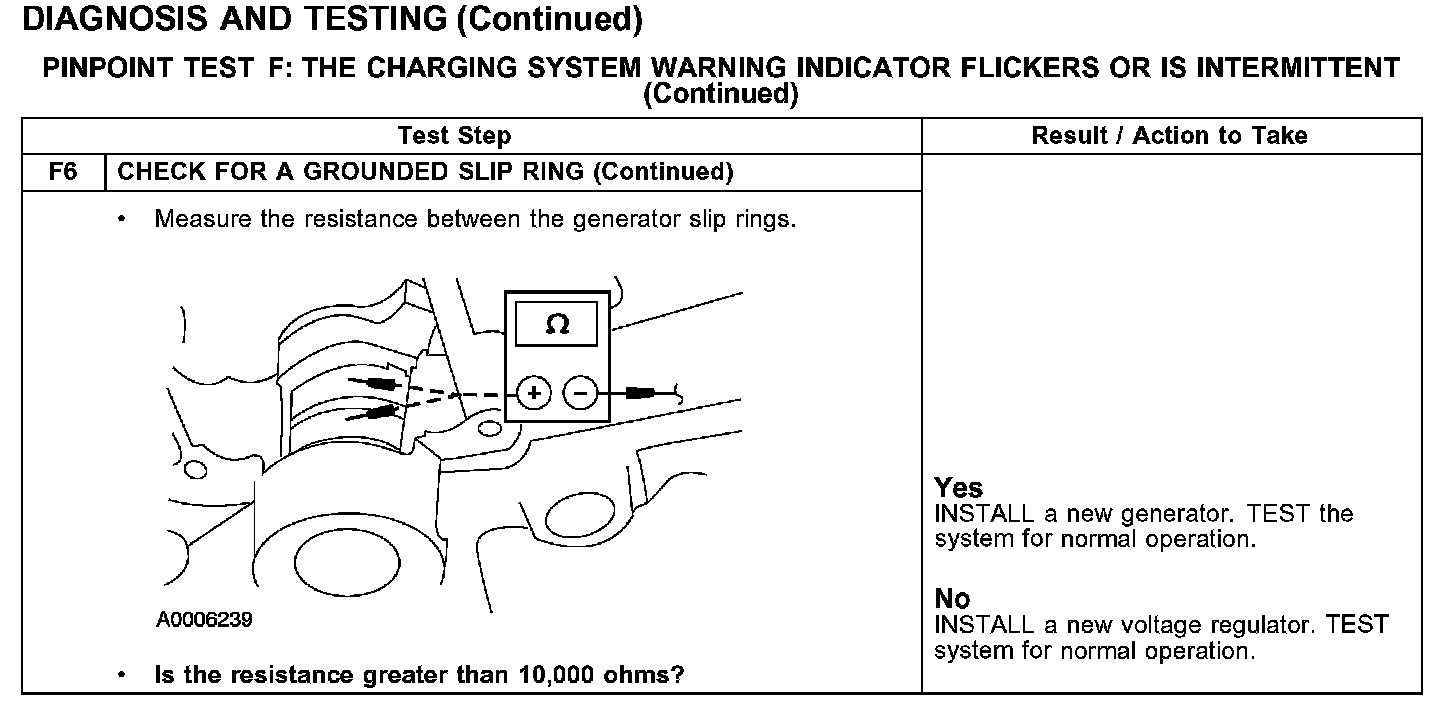

Test F6 Continued:
