Home >> Ford >> 2004 >> Ranger 2WD L4-2.3L VIN D >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Smart Junction Box
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

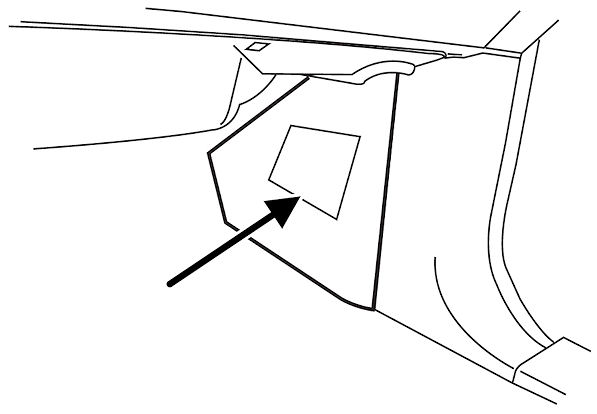

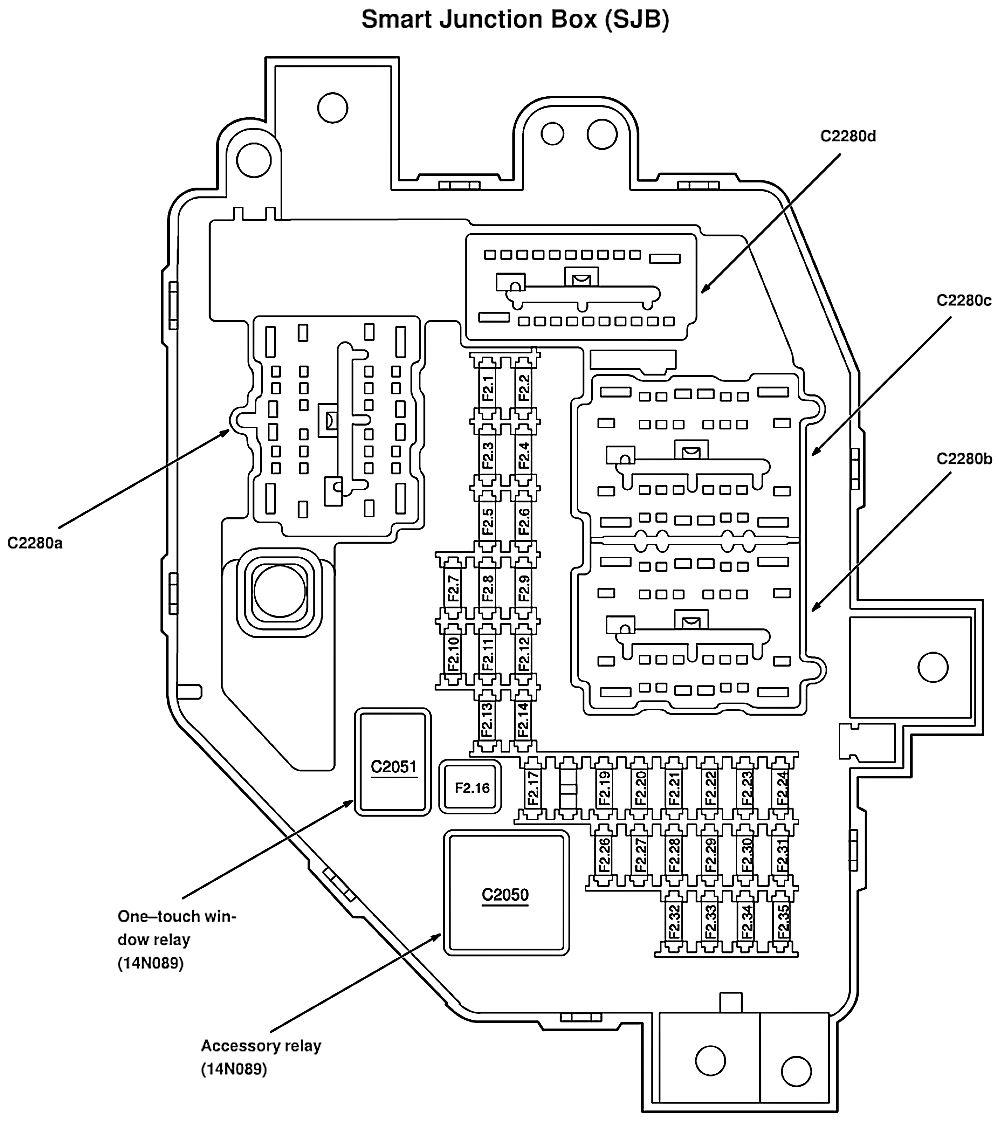

Smart Junction Box
