Test J

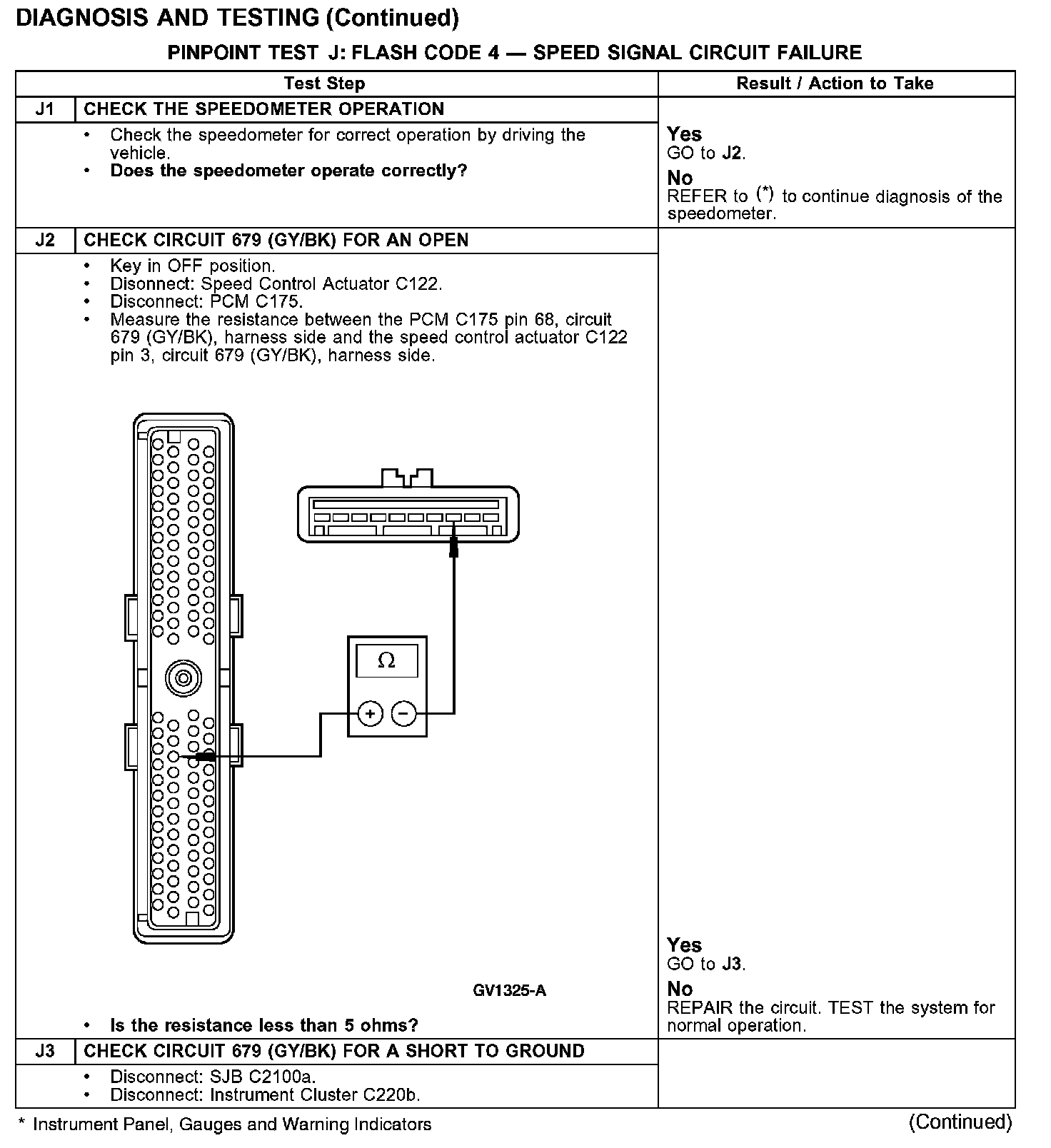

PINPOINT TEST J: FLASH CODE 4 - SPEED SIGNAL CIRCUIT FAILURE


Test J1-J3:






Test J3 Continued:
