Test A

PINPOINT TEST A: THE SPEED CONTROL IS INOPERATIVE - NO FLASH CODES


Test A1:

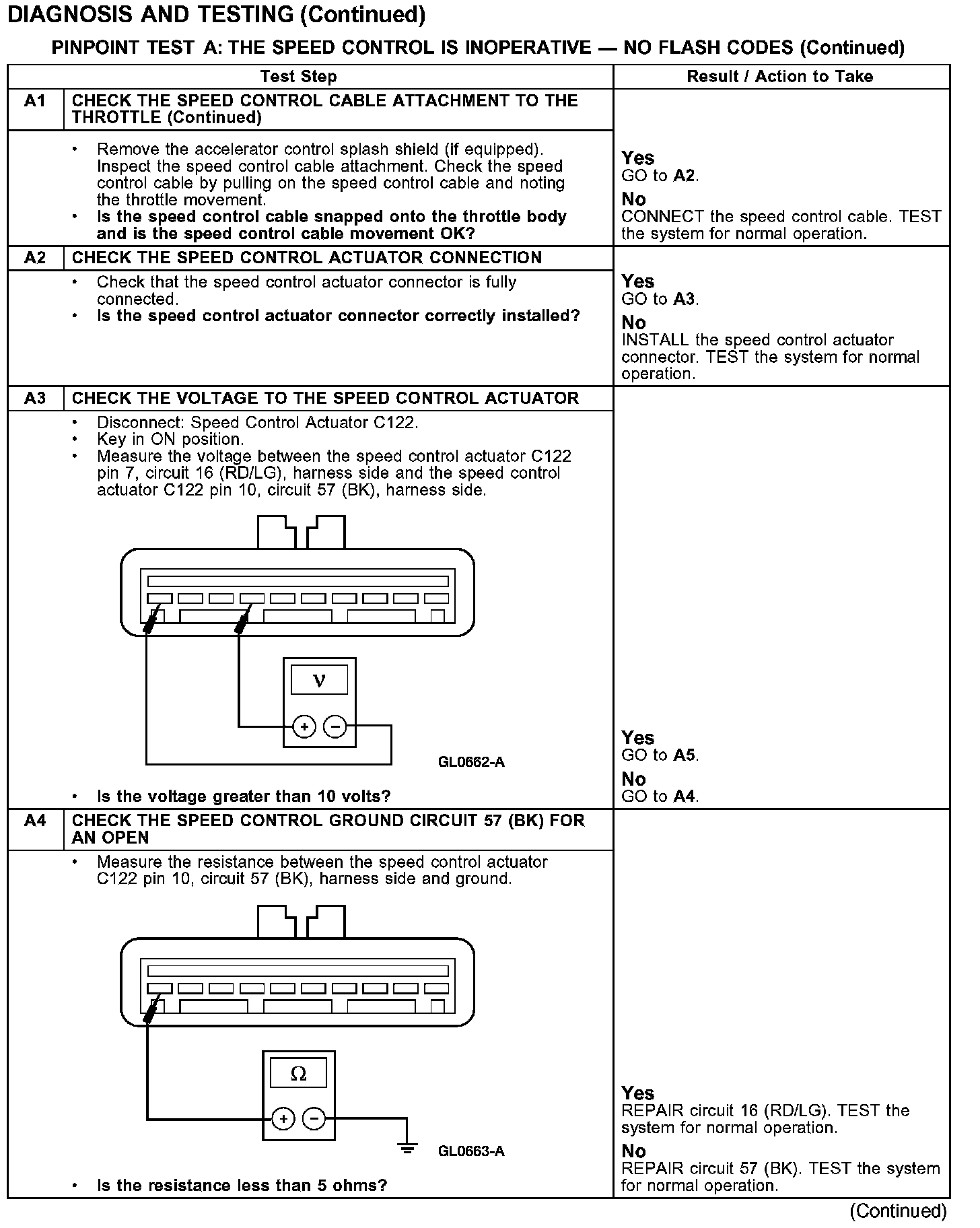

Test A1-A4:

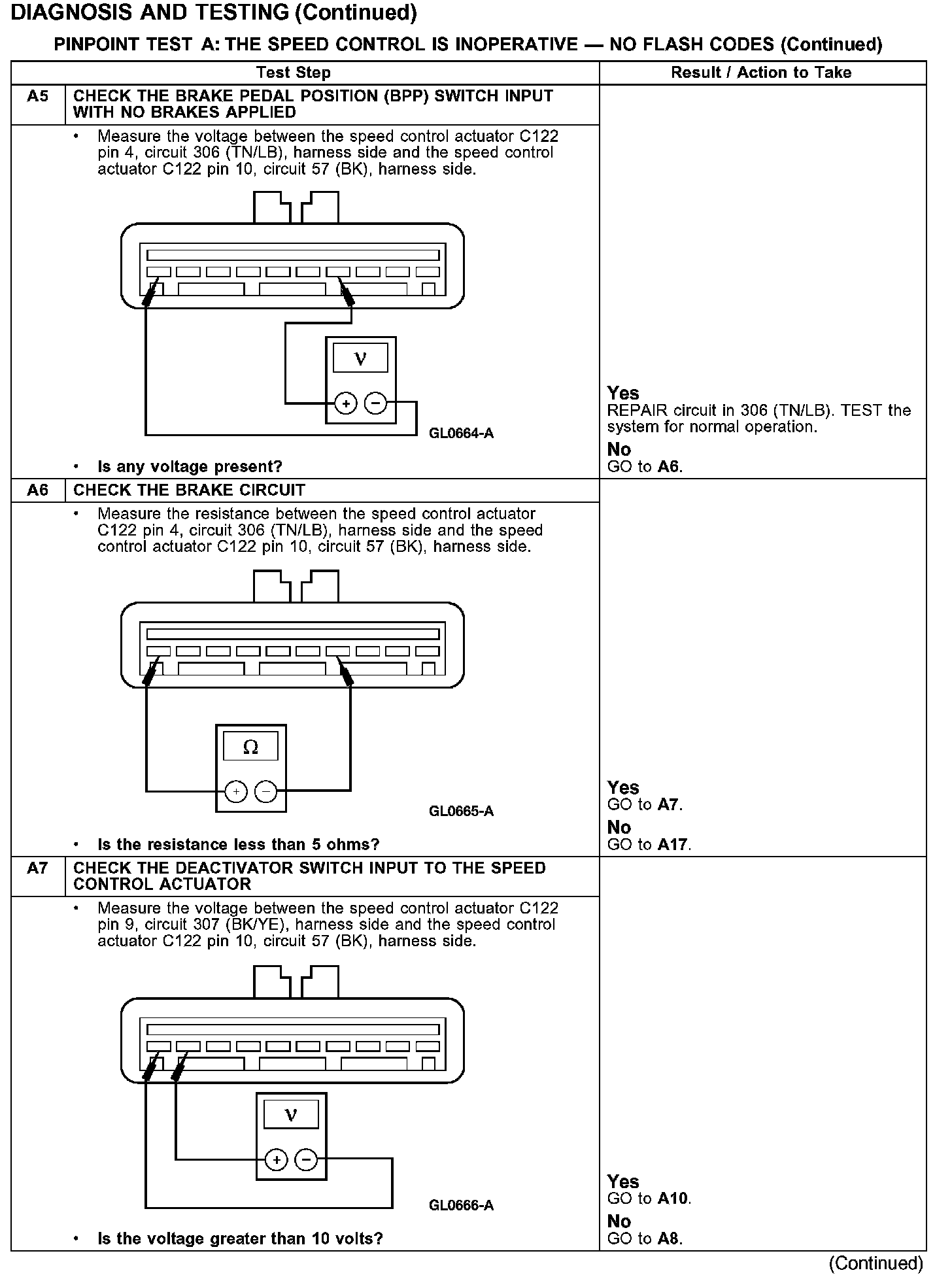

Test A5-A7:

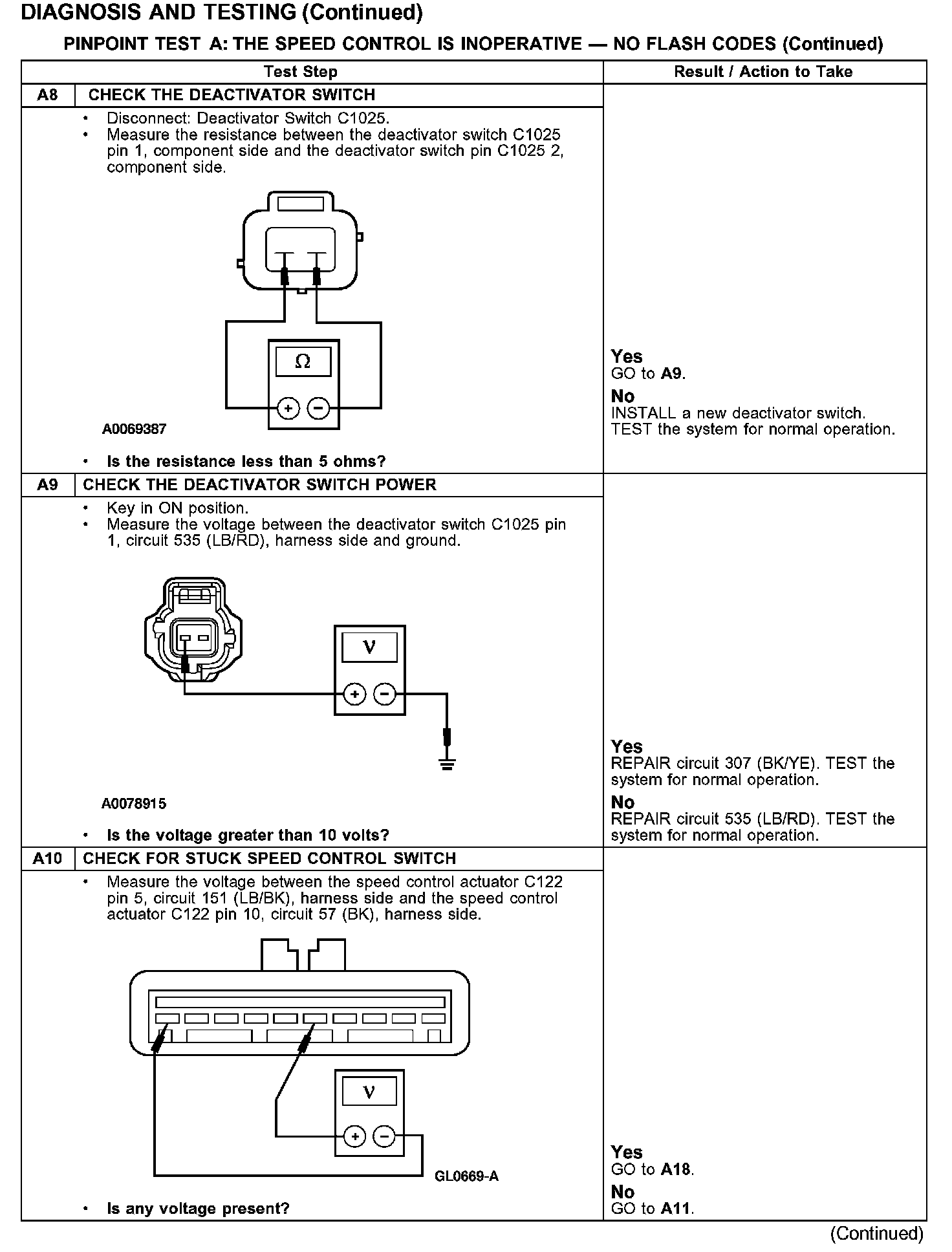

Test A8-A10:

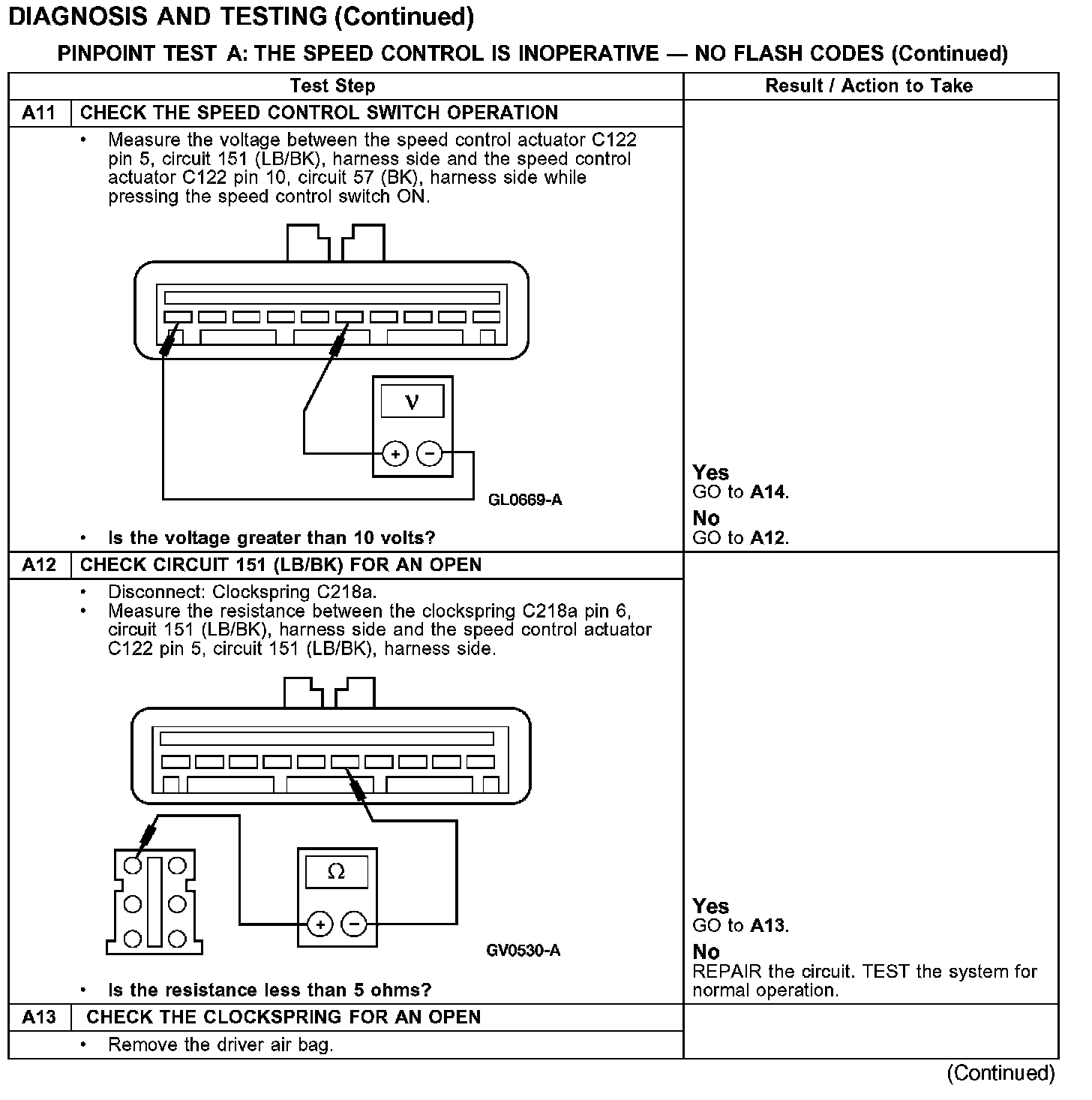

Test A11-A13:

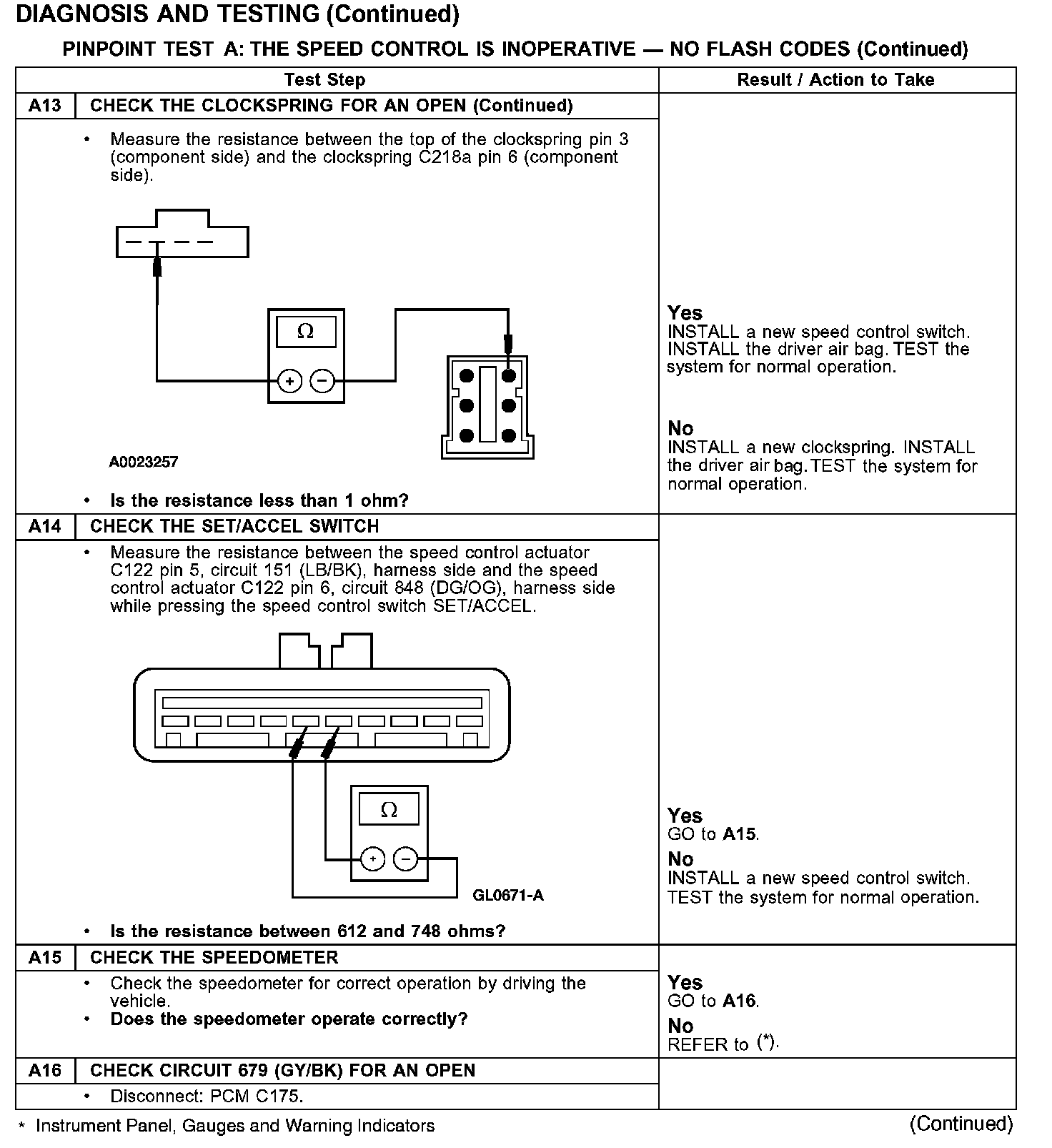

Test A13-A16:

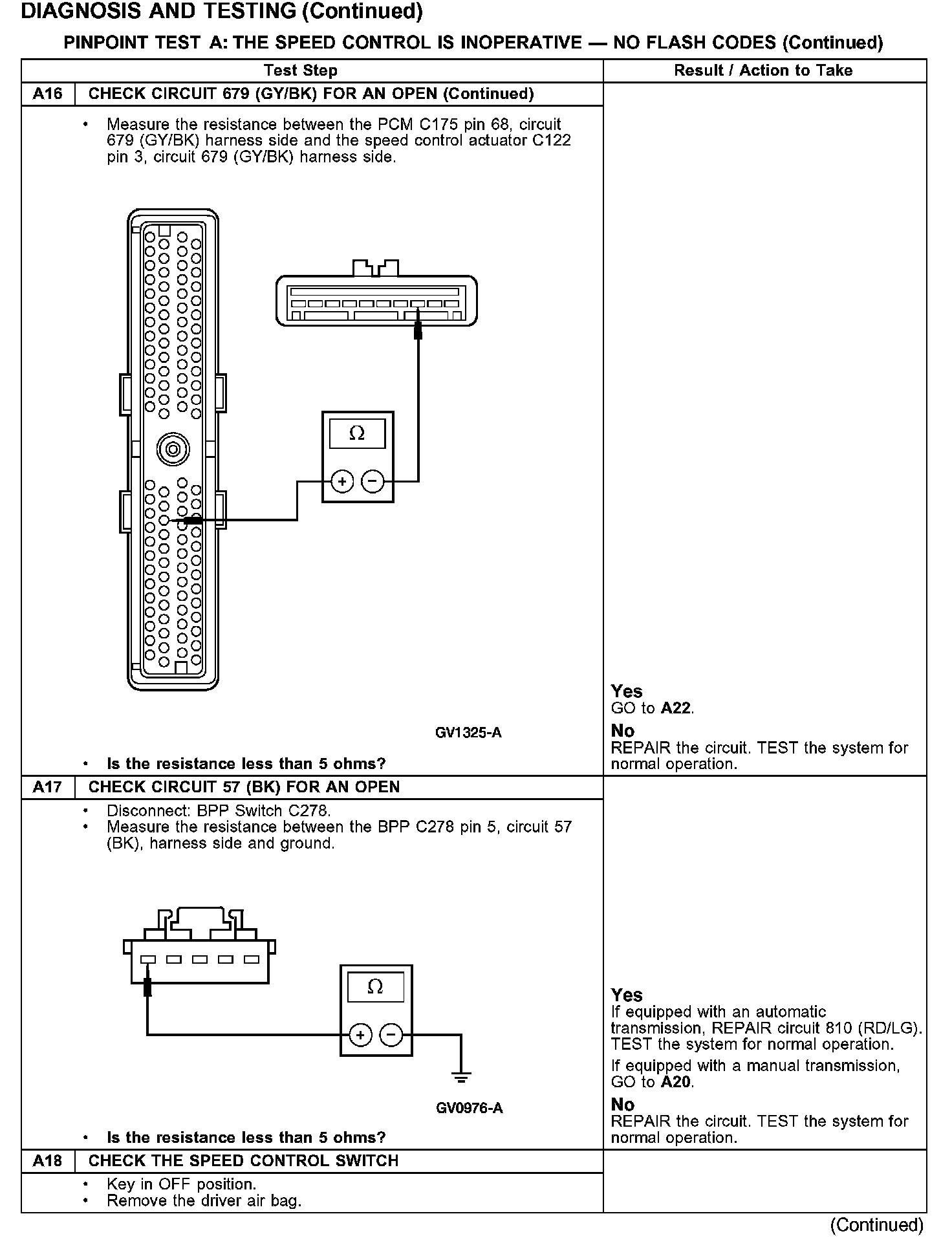

Test A16-A18:

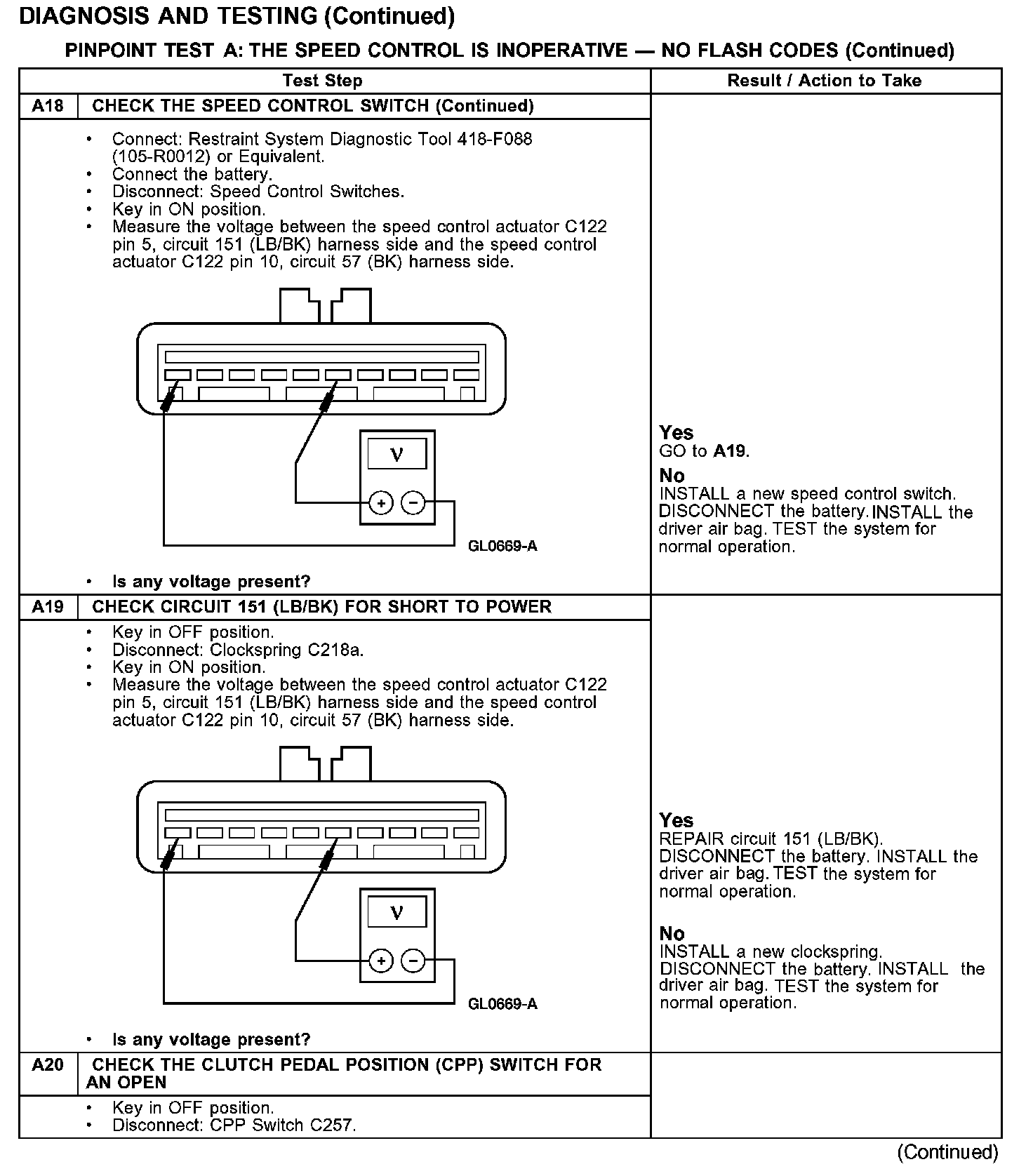

Test A18-A20:

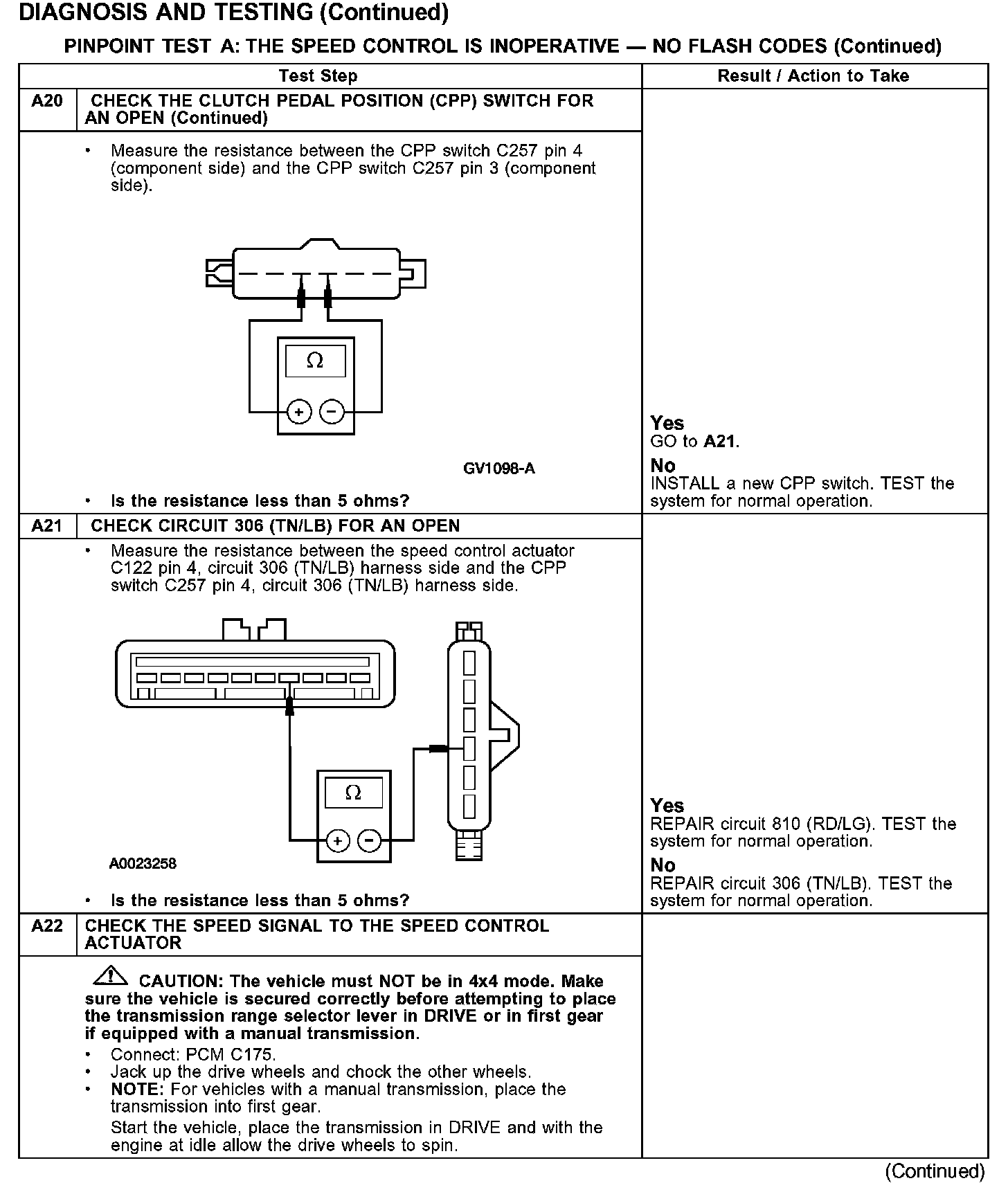

Test A20-A22:

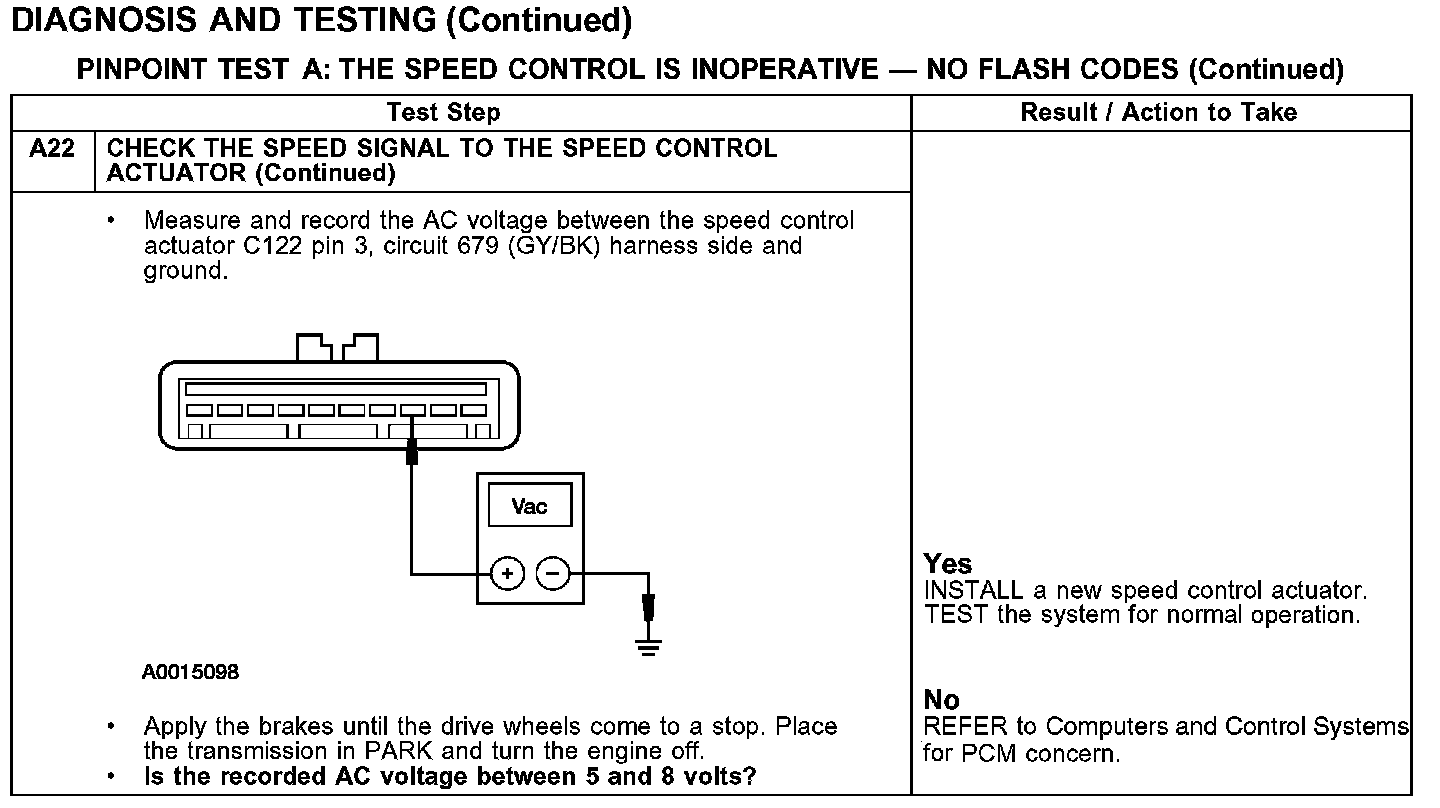

Test A22 Continued:
