Test F

PINPOINT TEST F: THE REMOTE KEYLESS ENTRY TRANSMITTER IS OUT OF SYNCHRONIZATION


Test F1:

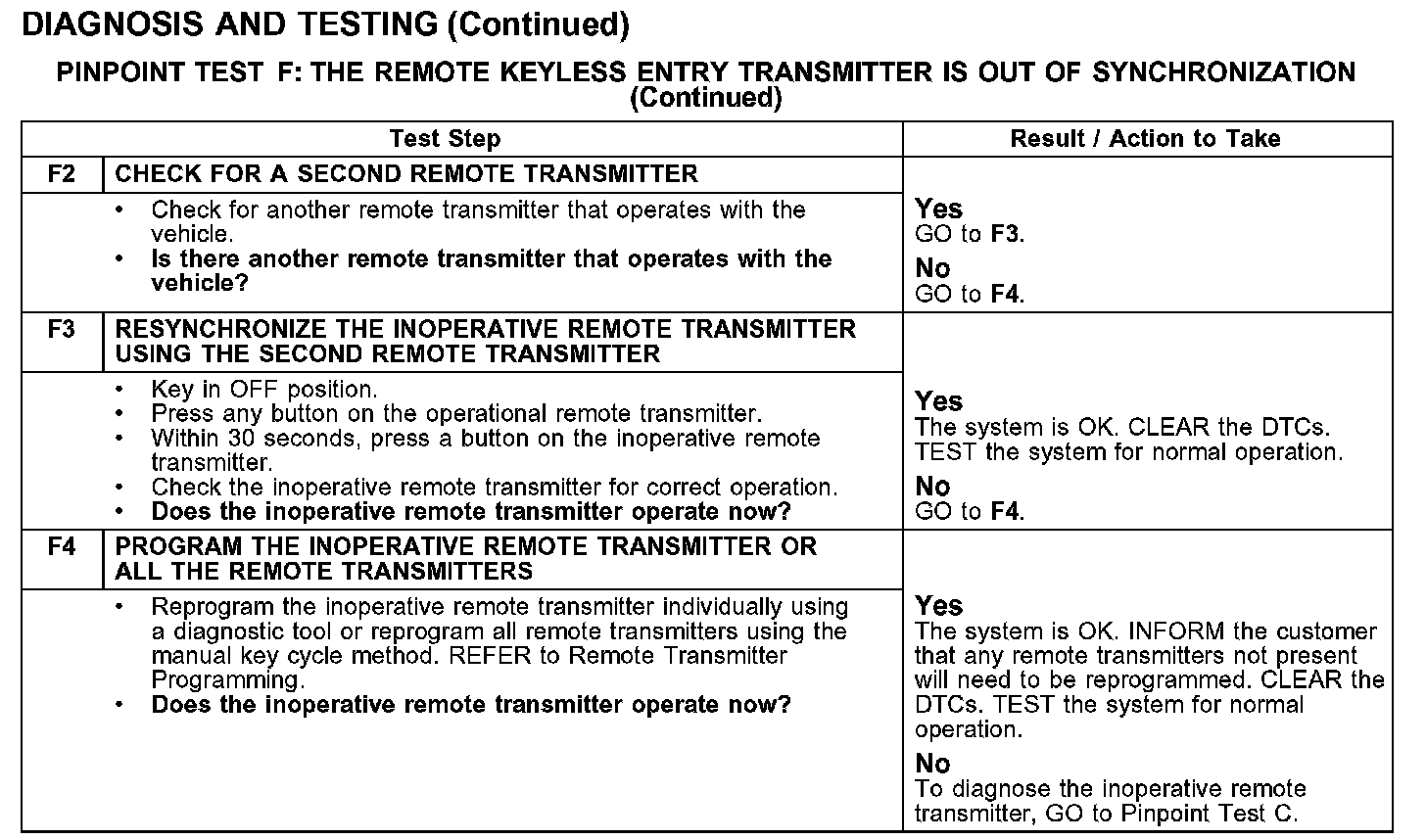

Test F2-F4:
