Steering System Components - 4.6L Engine

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

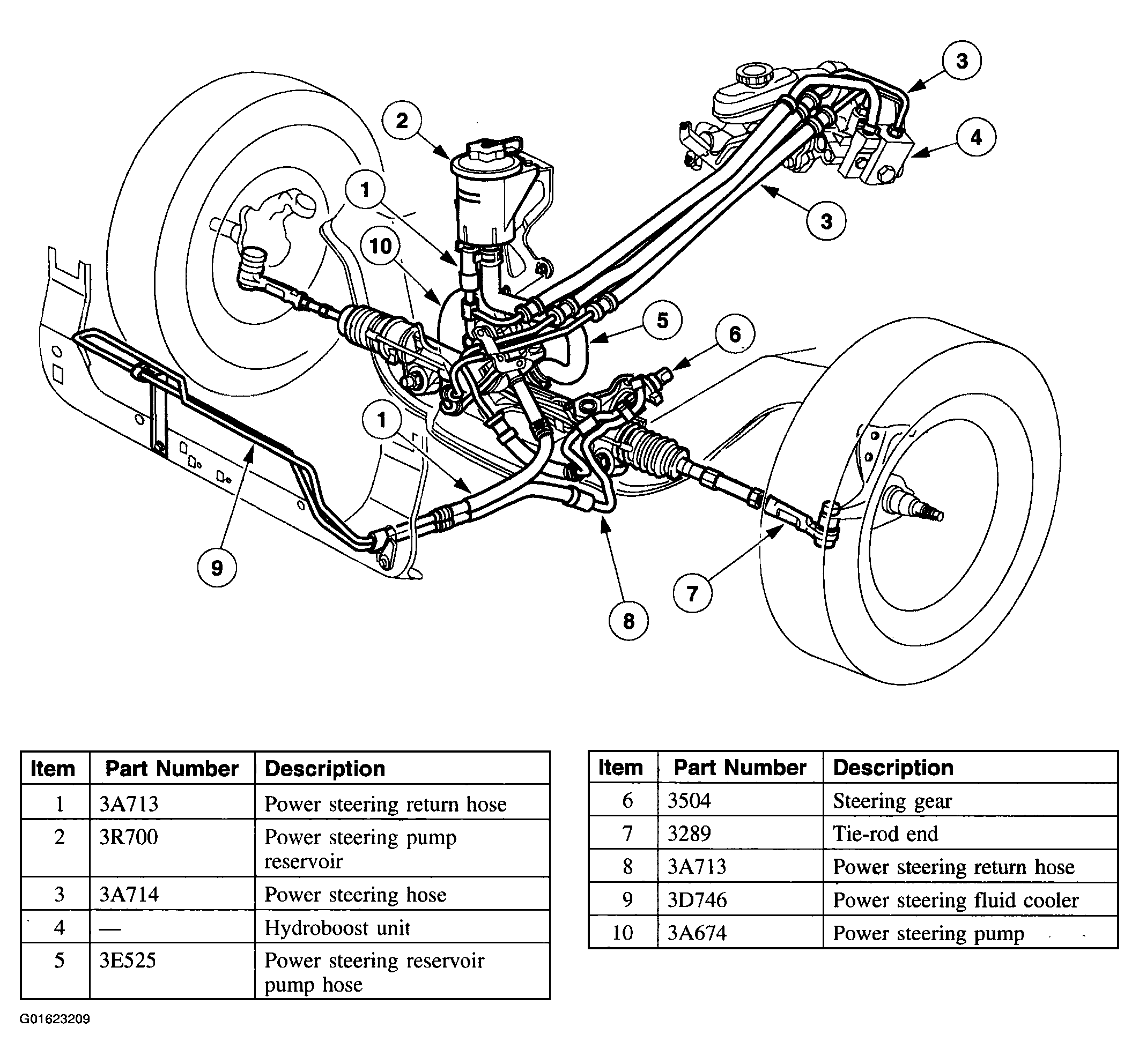

Fig 1: Identifying Steering System Components - 4.6L Engine
G01623209Courtesy of FORD MOTOR CO.
