Home
>>
Ford
>>
2004
>>
Mustang GT, 2D Convertible, Automatic
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Accessories Control Systems
>>
Component Testing
>>
Component Testing
>>
Ignition Switch (11572)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Ignition Switch (11572)

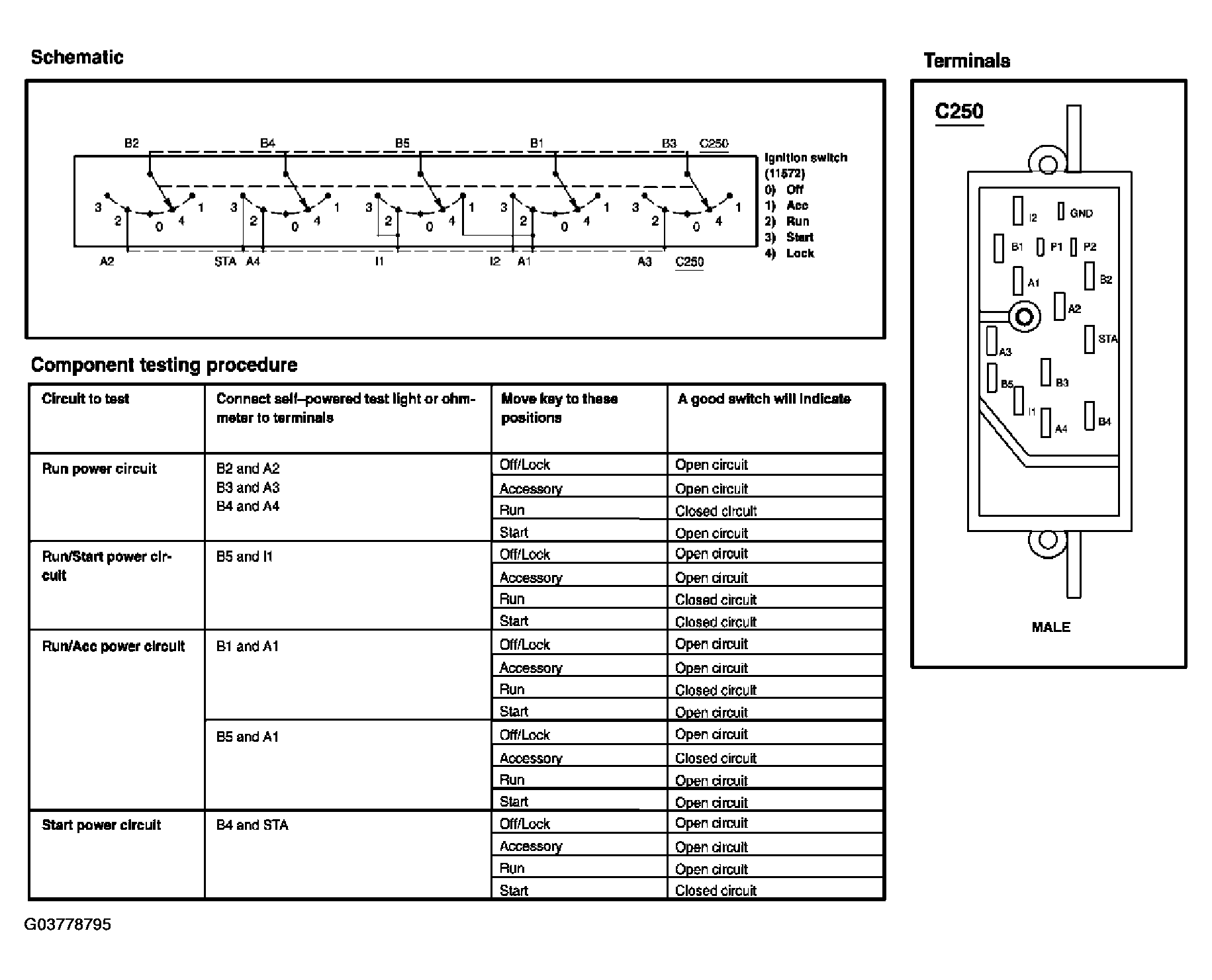

Fig 1: Testing Ignition Switch (11572)
Courtesy of FORD MOTOR CO.
