Front Passenger Window/Door Lock Switch

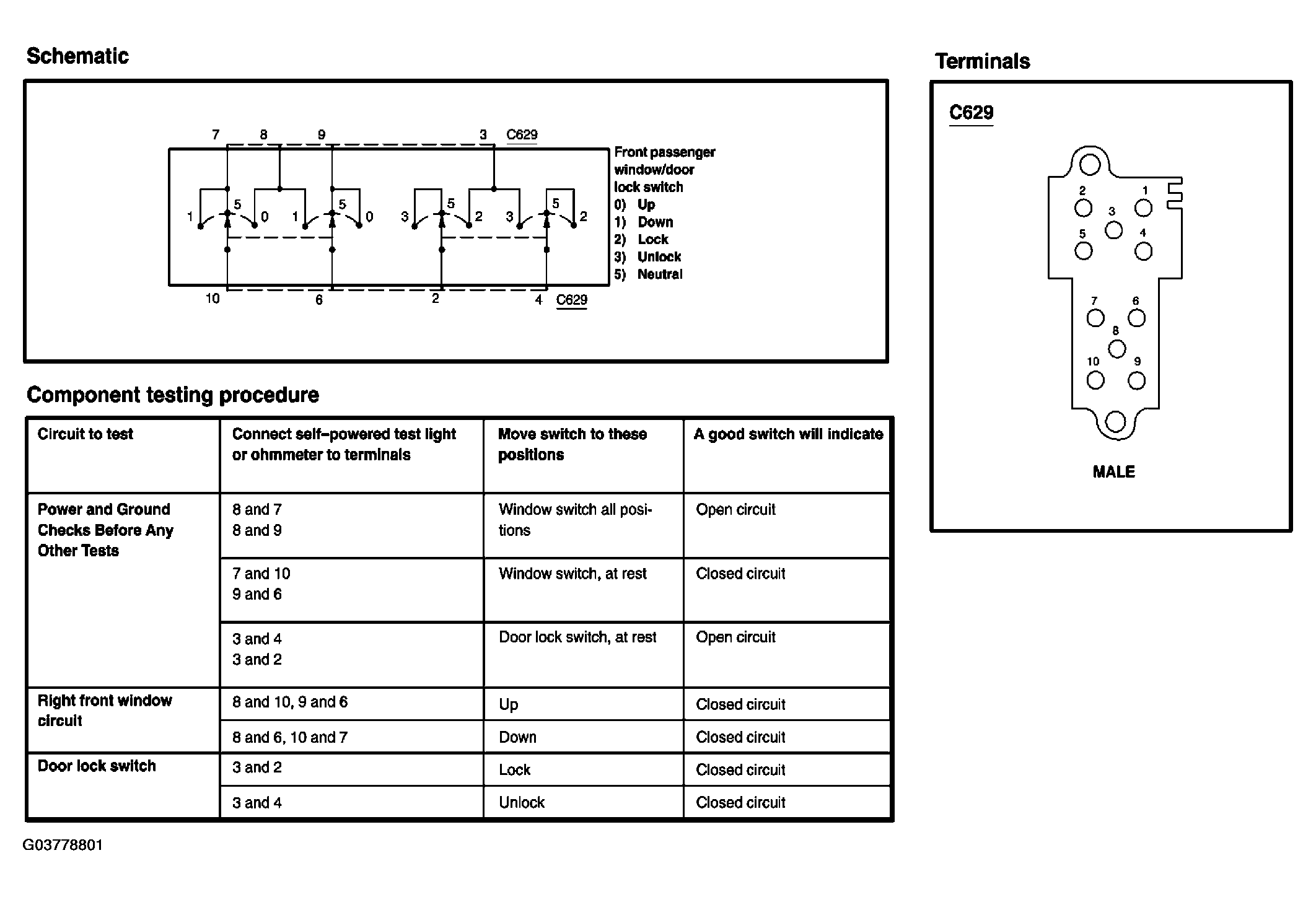

Fig 1: Testing Front Passenger Window/Door Lock Switch
G03778801Courtesy of FORD MOTOR CO.
