Front

BLOWER MOTOR - FRONT

REMOVAL

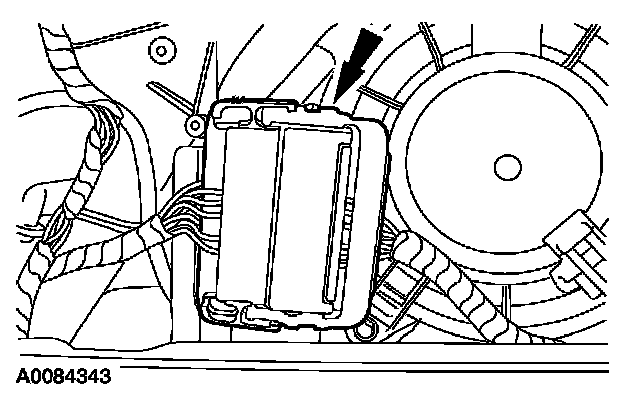

1. Lower the glove compartment.







2. Detach the electrical connector.

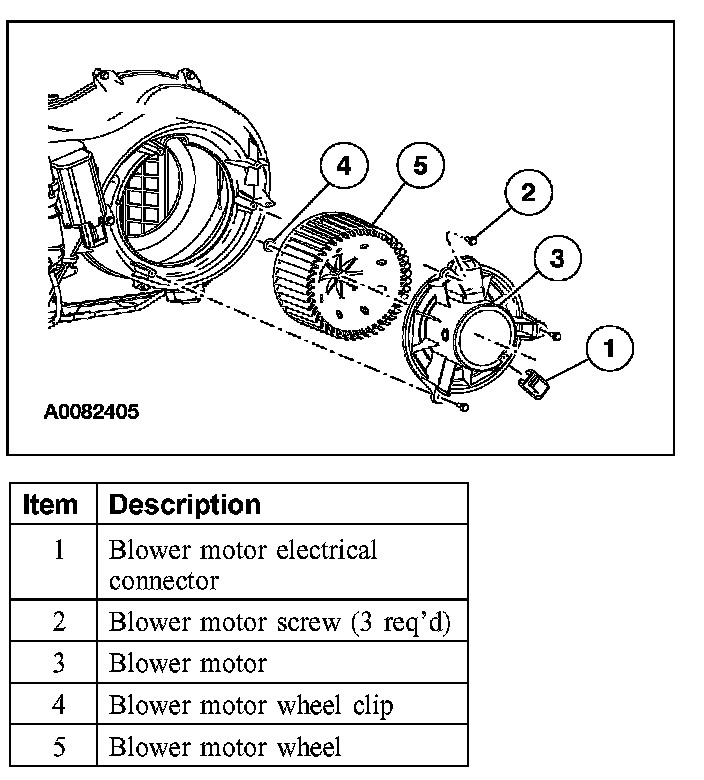

3. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
