Item 19 And 20: Steering Column Bearing Disassembly Note

  1. Use a suitable tool to remove the steering column lower bearing from the steering column lock cylinder housing.

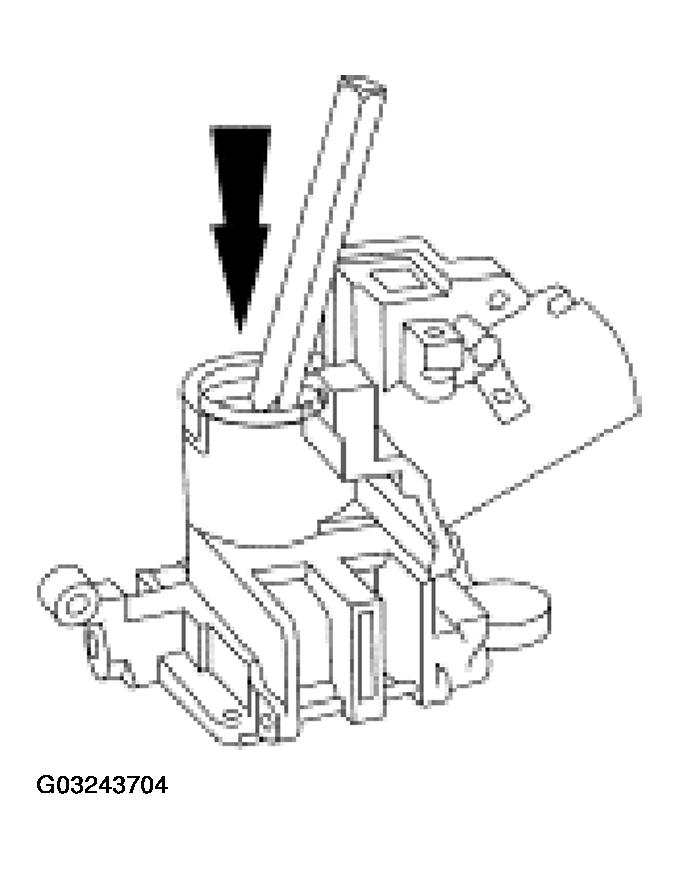

    Fig 1: Removing Steering Column Lower Bearing
    G03243704Courtesy of FORD MOTOR CO.
