Rear Seat Cushion - Third Row: Notes

  1. Remove the third row seat. For additional information, refer to REAR SEAT BACKREST - THIRD ROW .
  2. Open the third row seat to normal sitting position.
  3. Disassemble the parts in the order listed in the following illustration and table.
    PARTS REMOVING SEQUENCE

    Part Steps
    Third row backrest 1-7
    Cushion trim cover 1-10
    LH safety belt buckles 1-13
    RH safety belt buckles 1-11, 14-15

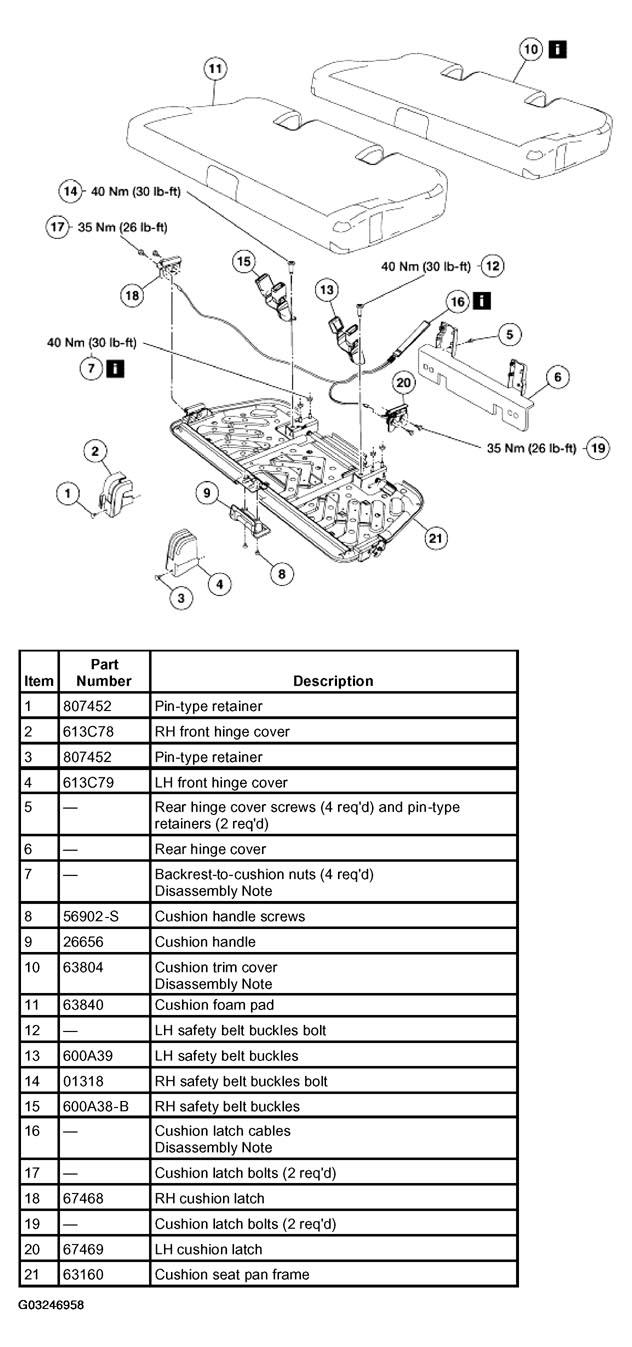

    Fig 1: Rear Seat Cushion - Third Row Components Removal Sequence
    G03246958Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
