Air Distribution and Temperature Control - Vehicles Without Electronic Automatic Air Temperature Control (EATC)
WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

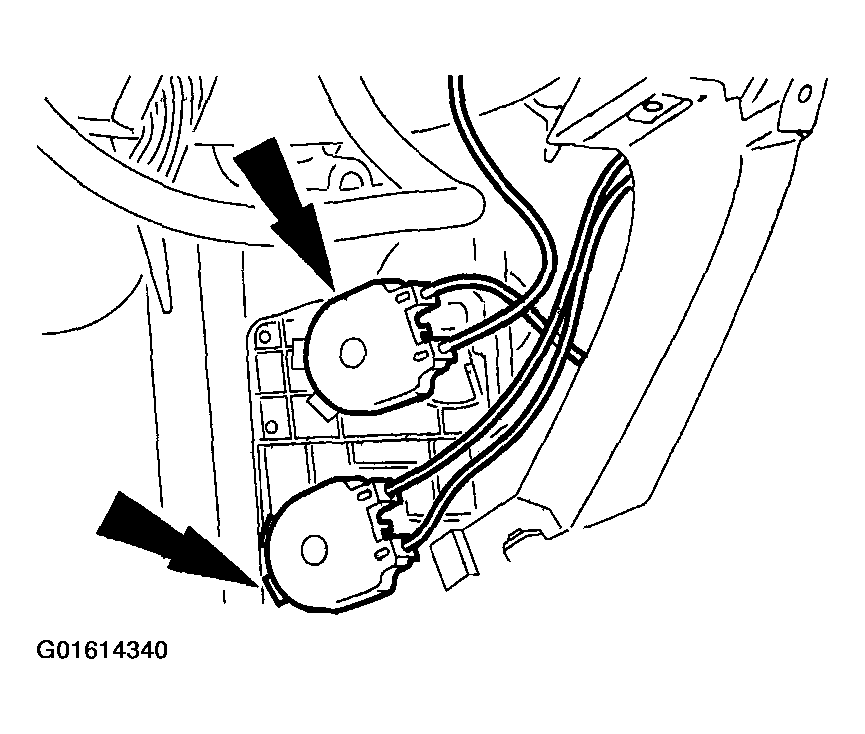

The air distribution and temperature control flaps are mechanically operated by two Bowden cables each.
Courtesy of FORD MOTOR CO.
