Safety Belt Retractor And Pretensioner: Installation

    CAUTION: Make sure the spacer is correctly located between the floor covering and inner sill.
    CAUTION: Make sure that the rear end of the anchor rail, on 3-door vehicles, is correctly located before tightening the bolt.
    CAUTION: Make sure the pin on the B-pillar trim is located correctly into the height adjuster.
    NOTE: Make sure the safety belt shoulder height adjuster locking control is correctly located on the safety belt shoulder height adjuster.

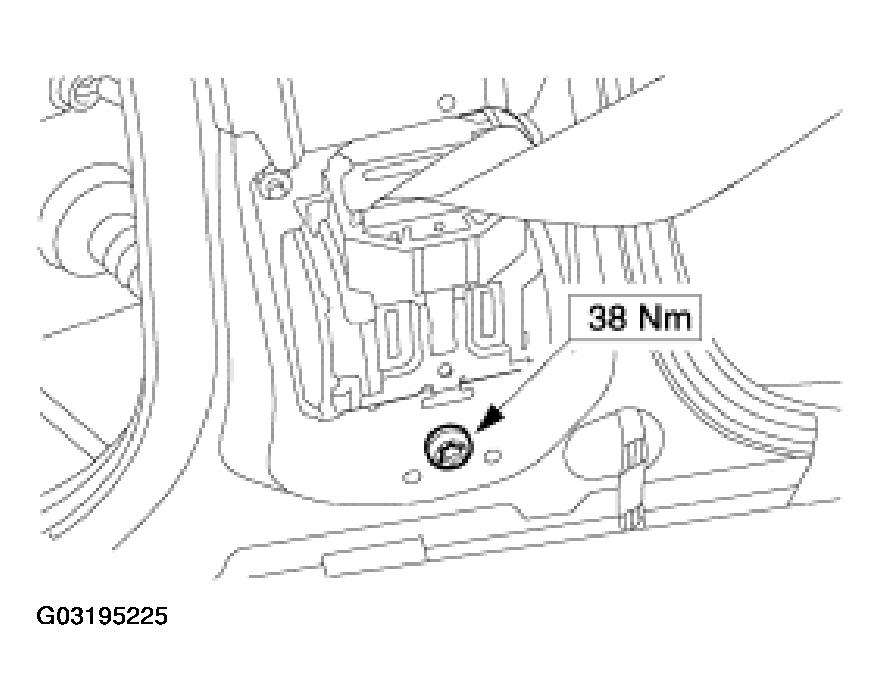

    Fig 1: Installing Safety Belt Retractor And Pretensioner
    G03195225Courtesy of FORD MOTOR CO.

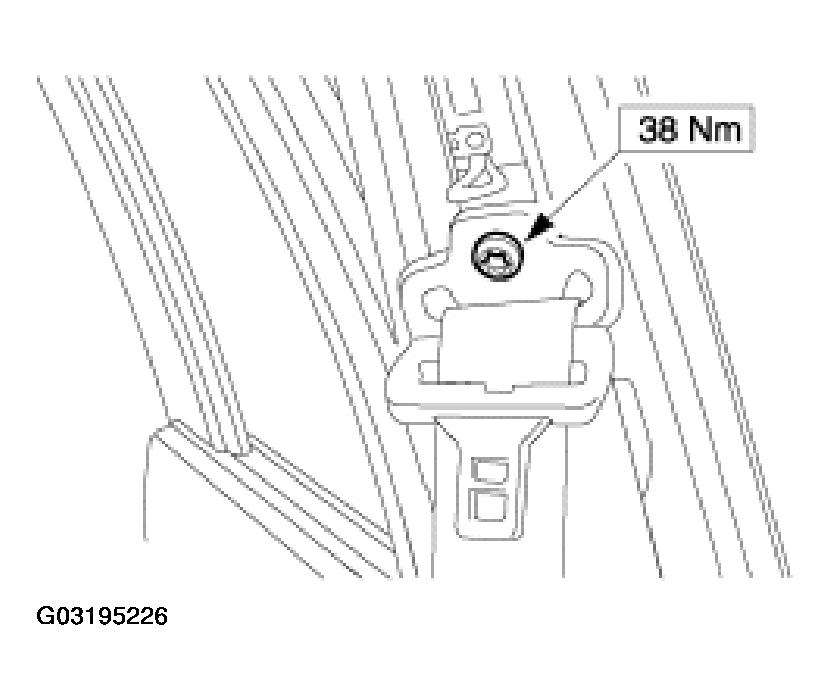

    Fig 2: Installing Safety Belt Upper Anchor To Safety Belt Shoulder Height Adjuster
    G03195226Courtesy of FORD MOTOR CO.

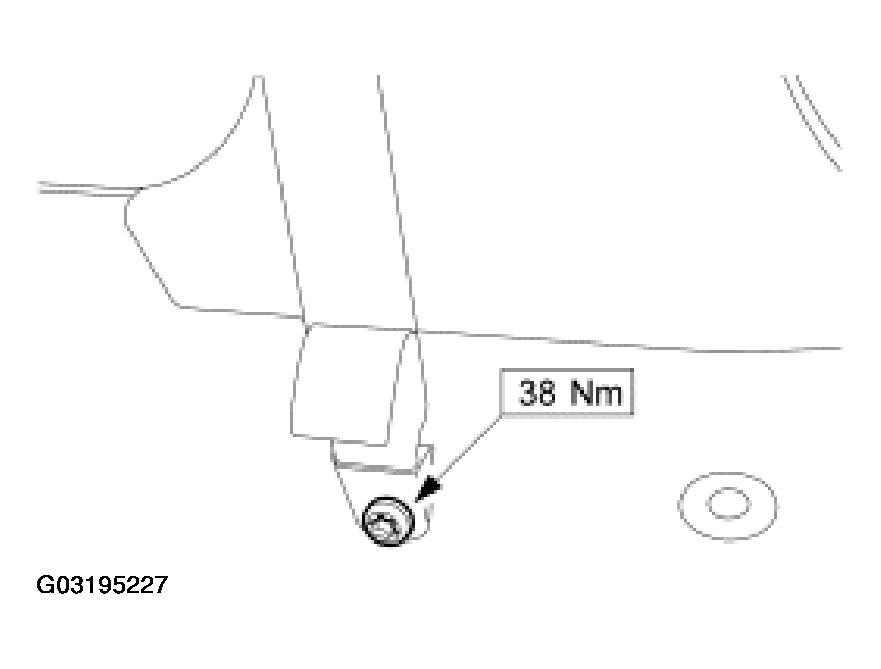

    Fig 3: Installing Safety Belt Lower Anchor To Floor Panel
    G03195227Courtesy of FORD MOTOR CO.

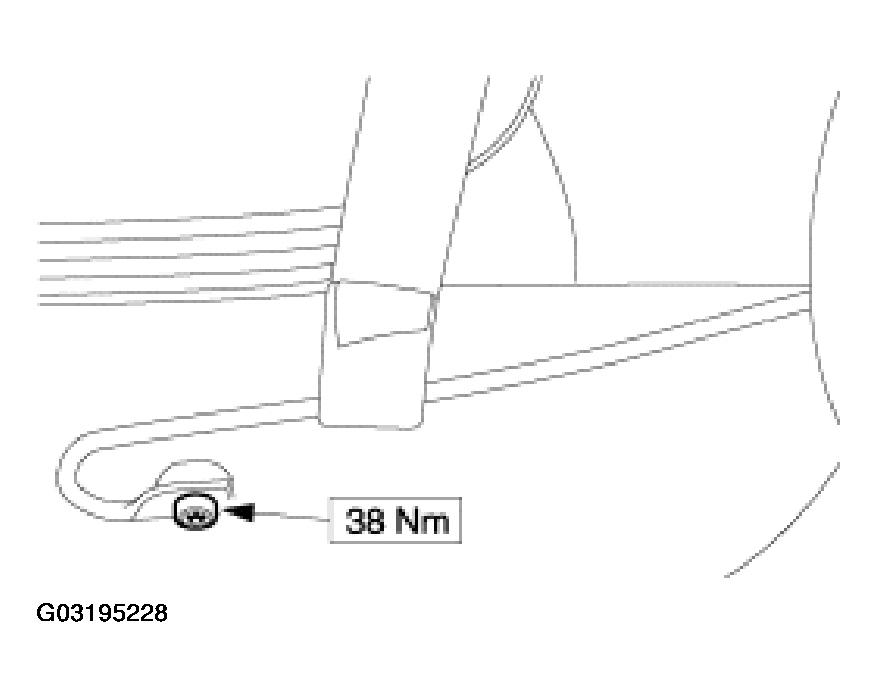

    Fig 4: Installing Bolt To Anchor Rail
    G03195228Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
  2. Activate the SRS. For additional information, refer to ACTIVATING SYSTEM .
