Identifying Connector (C2041b)

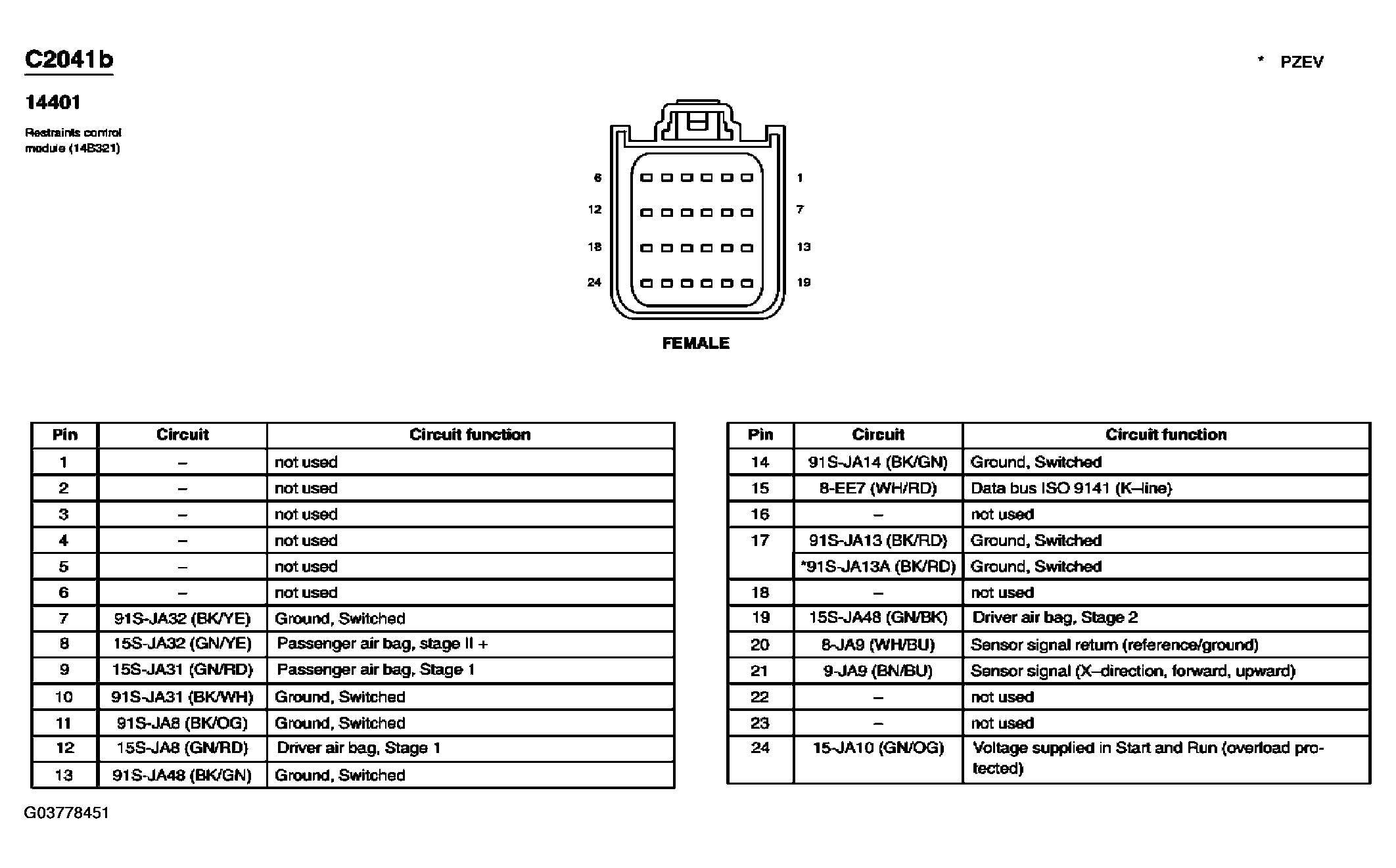

Fig 1: Restraints Control Module Connector End View (C2041b)
Courtesy of FORD MOTOR CO.
