Overview, Selector Mechanism

WARNING: This page is about a different variant/trim than selected.

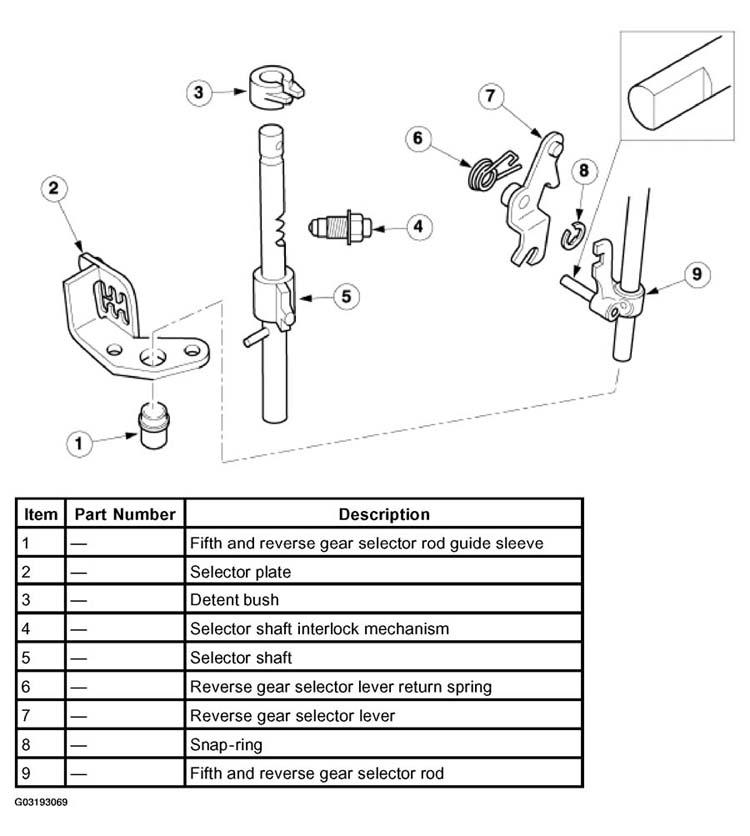

Fig 1: Exploded View Of Selector Mechanism
G03193069Courtesy of FORD MOTOR CO.
