Selector Plate: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the selector mechanism.
    1. Fifth and reverse gear selector rod.
    2. Selector shaft.
    3. Reverse gear selector lever.
    4. Selector plate.
    5. Fifth and reverse gear selector rod guide sleeve.

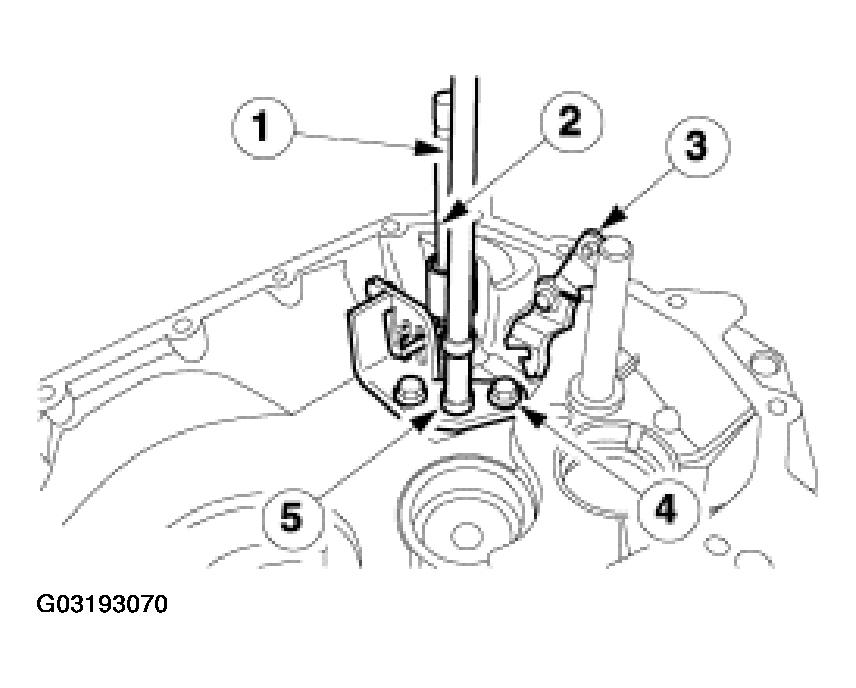

      Fig 1: Removing Selector Mechanism
      G03193070Courtesy of FORD MOTOR CO.
