Test B

PINPOINT TEST B: THE ENGINE DOES NOT CRANK AND THE RELAY DOES NOT CLICK


Test B1-B2:

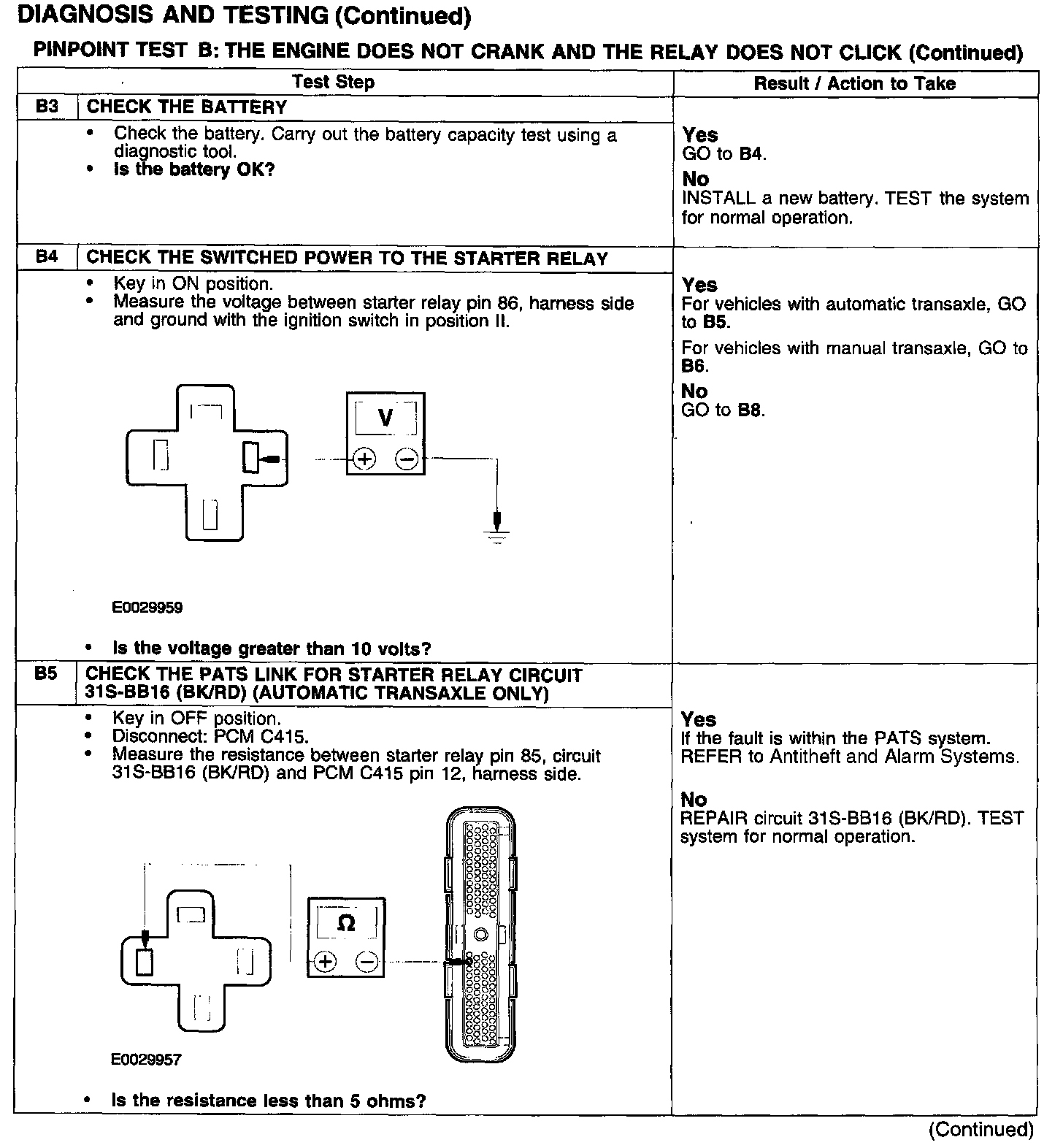

Test B3-B5:

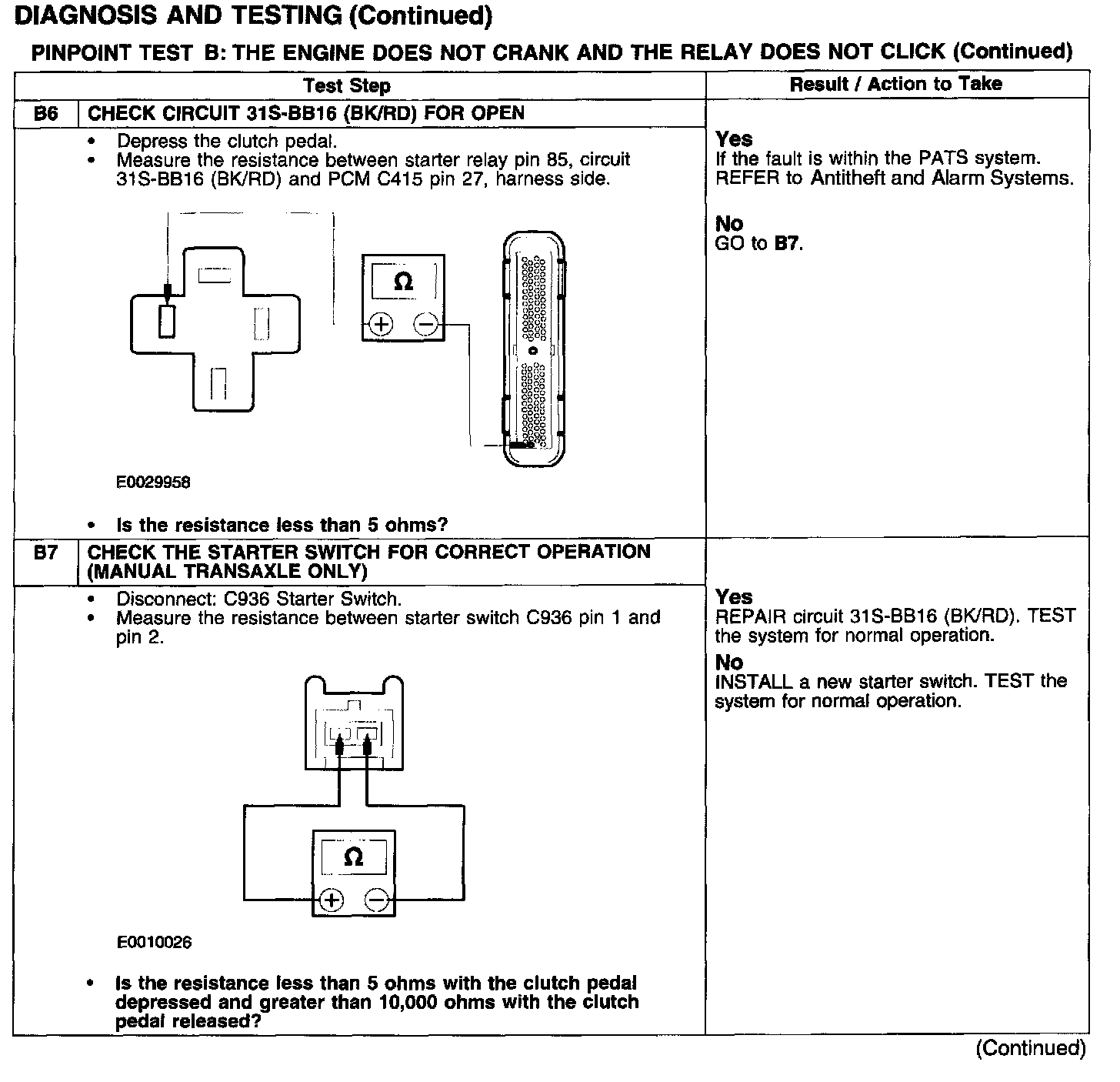

Test B6-B7:

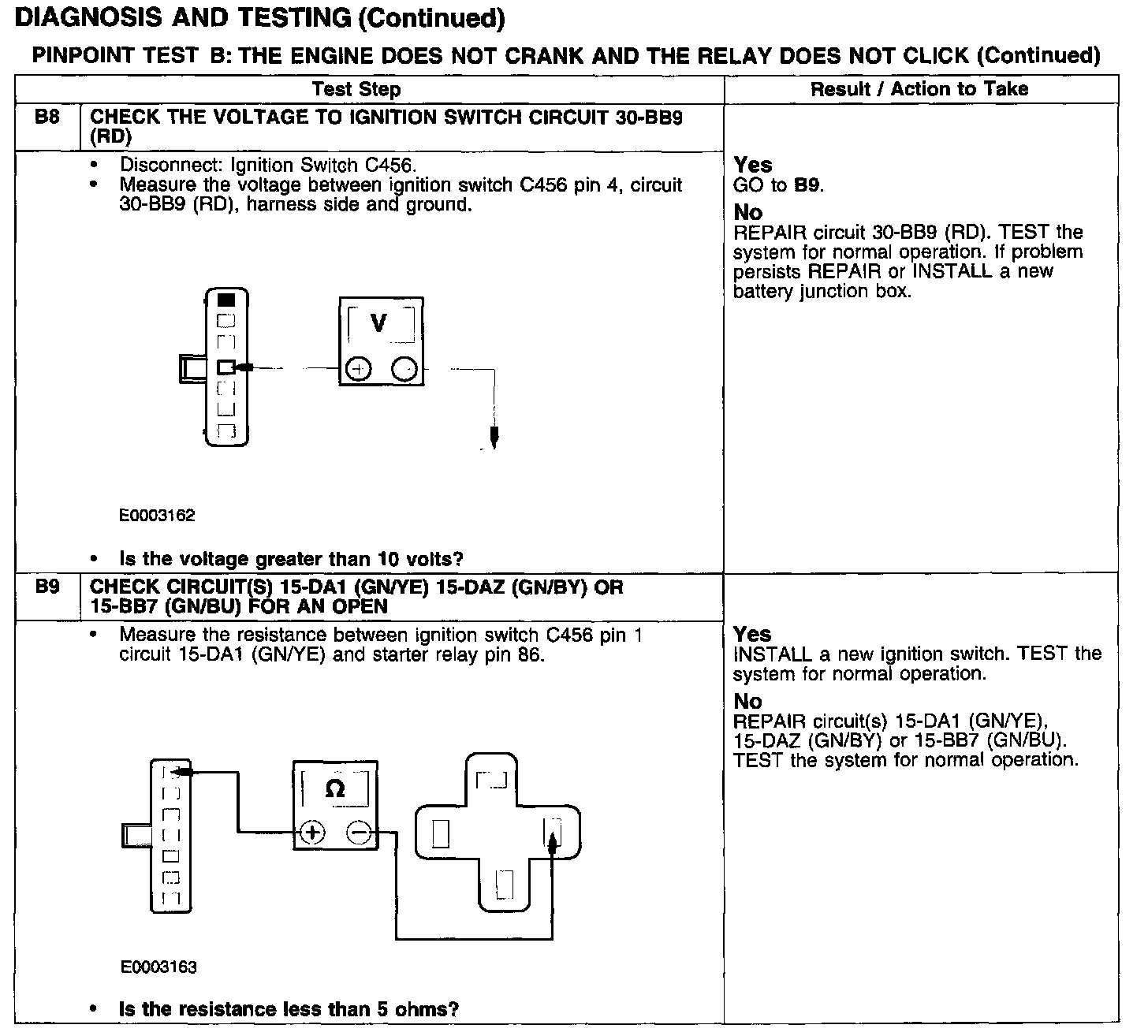

Test B8-B9:
