Tests QA: Unable to Activate Self-Test Comm Error/DTC P1001



PINPOINT TEST QA: UNABLE TO ACTIVATE SELF-TEST/NETWORK COMMUNICATION ERROR/DTC P1001

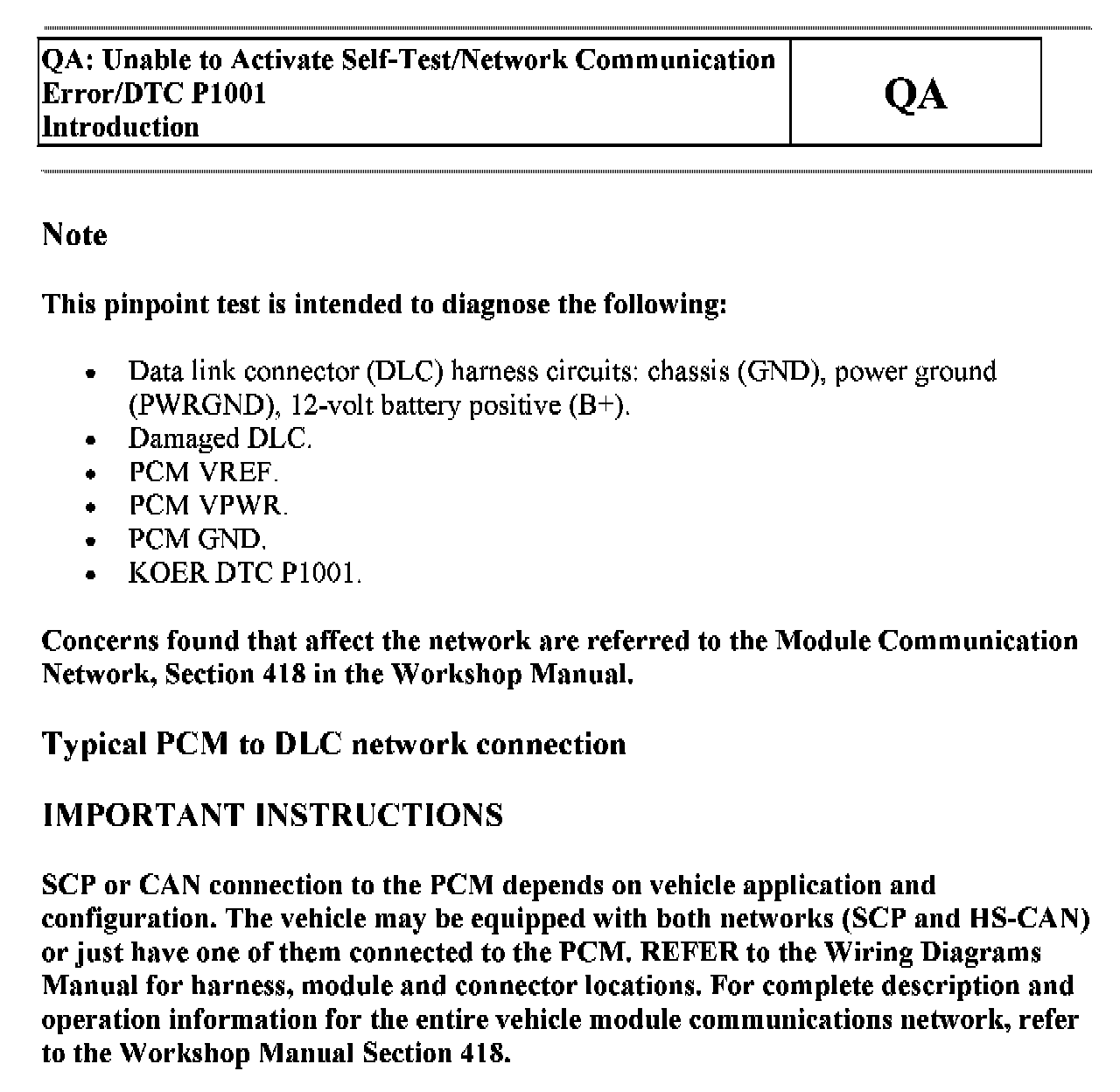

QA Introduction 1 Of 6:





QA Introduction 2 Of 6:





QA Introduction 3 Of 6:





QA Introduction 4 Of 6:





QA Introduction 5 Of 6:





QA Introduction 6 Of 6:

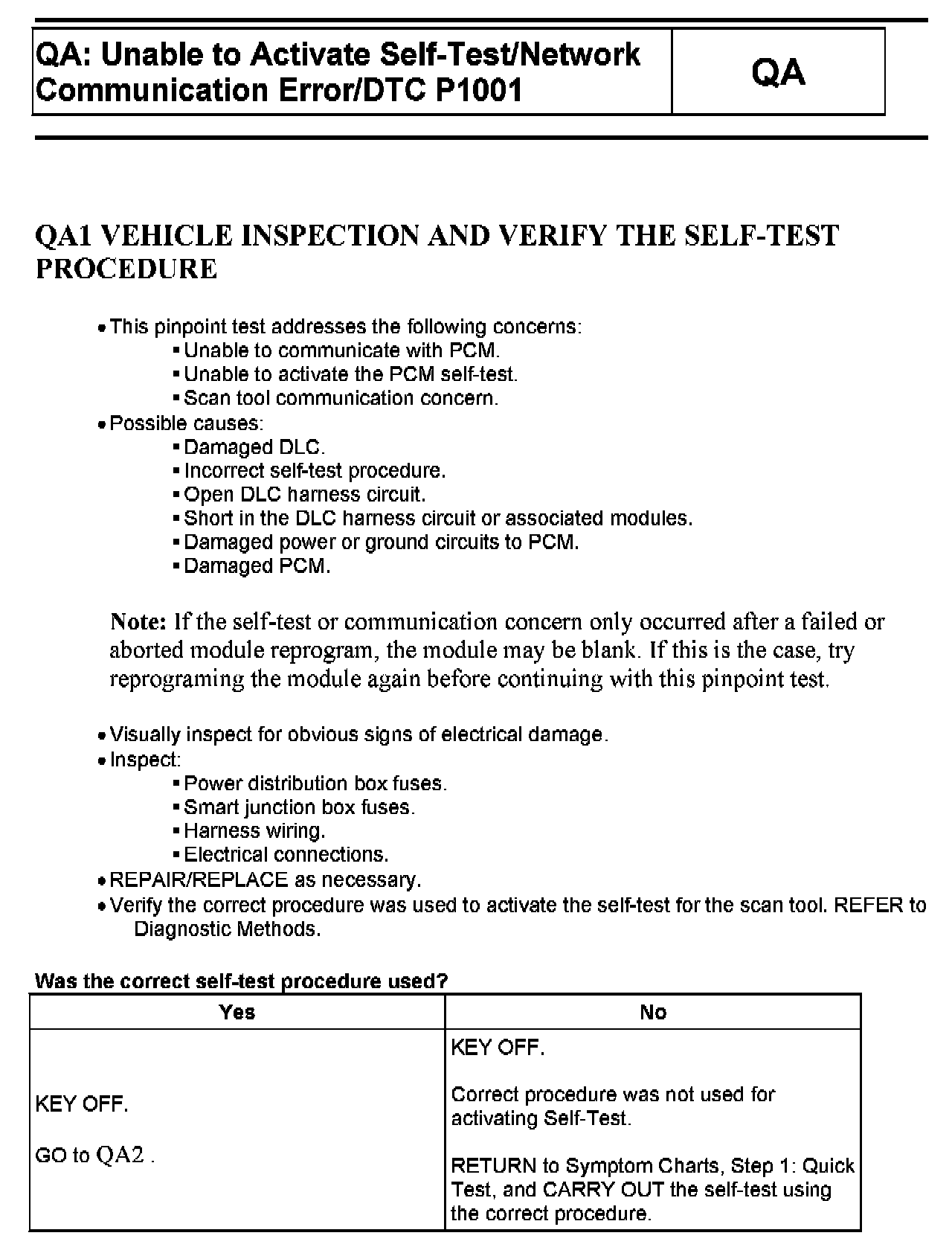

QA1:

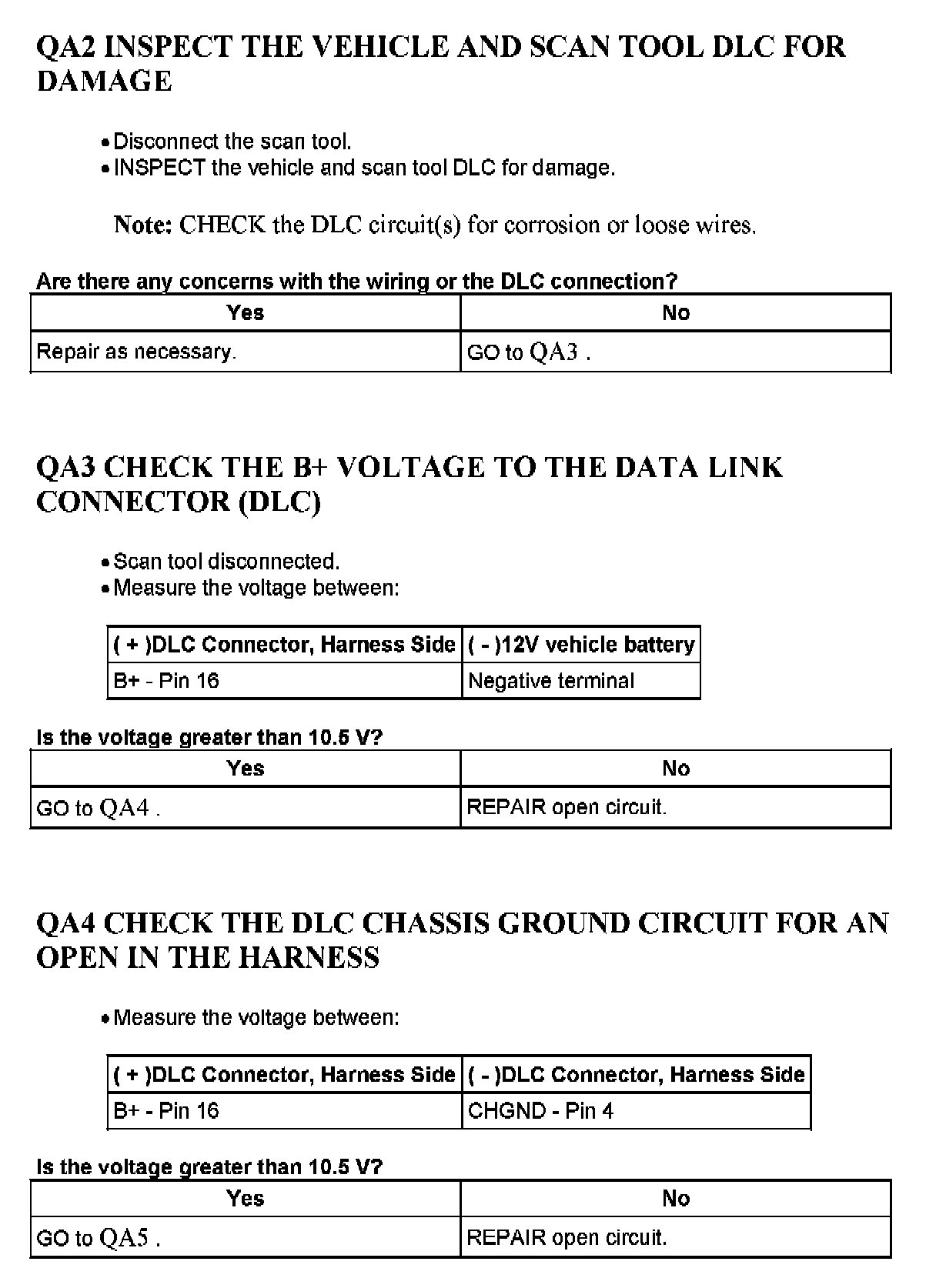

QA2 - QA4:

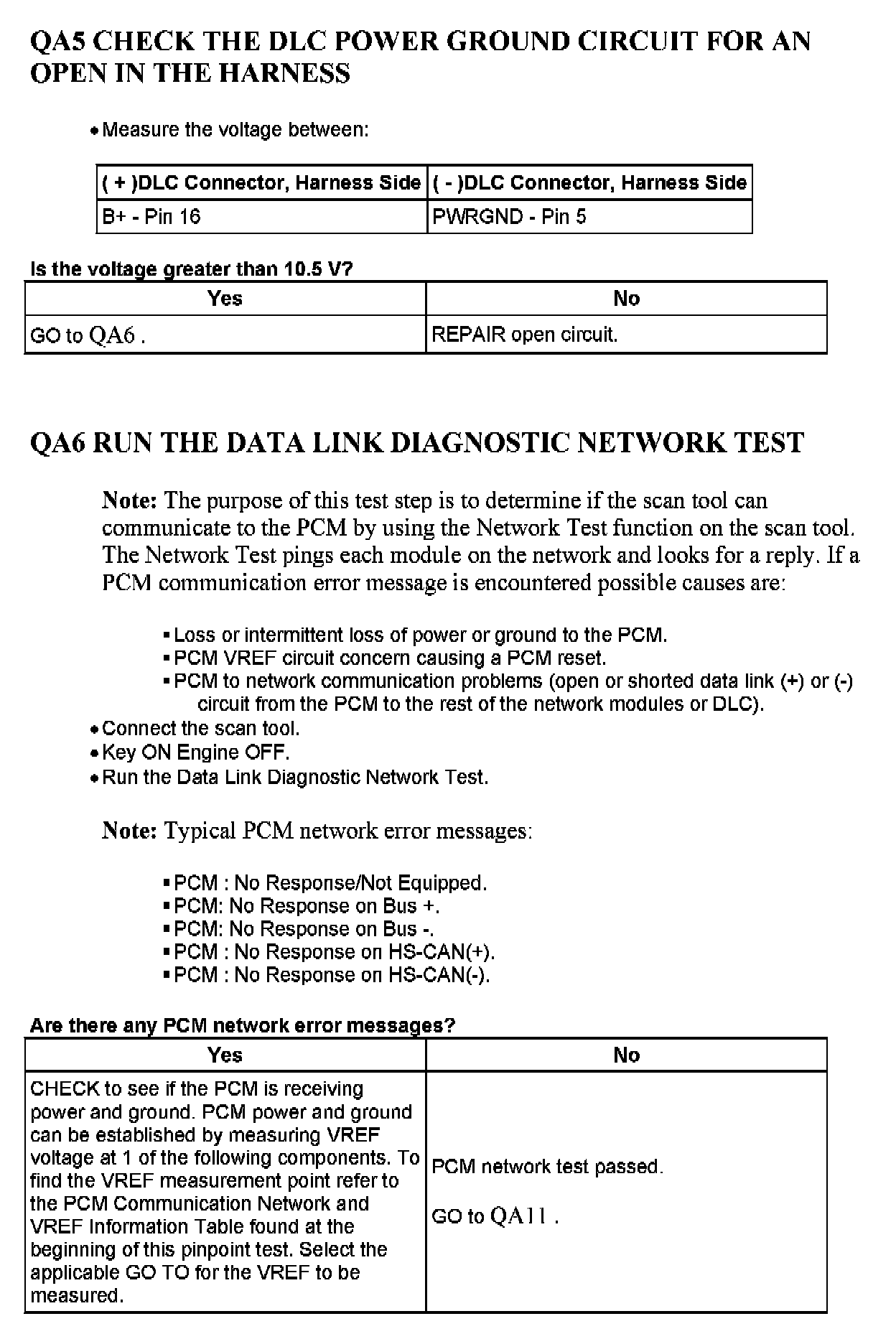

QA5 - QA6:





QA6 Cont'd - QA7:





QA8 - QA9:

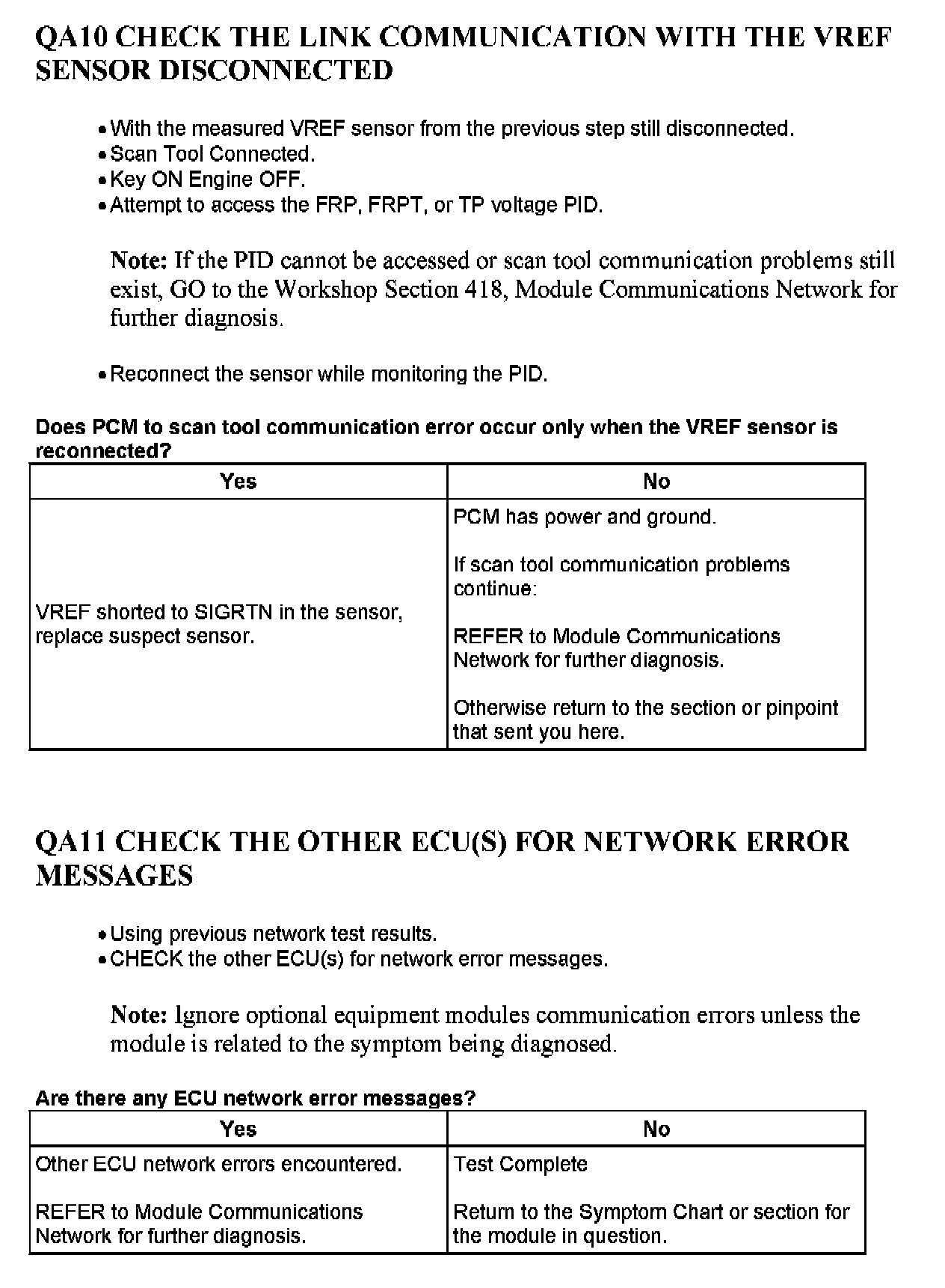

QA10 - QA11:

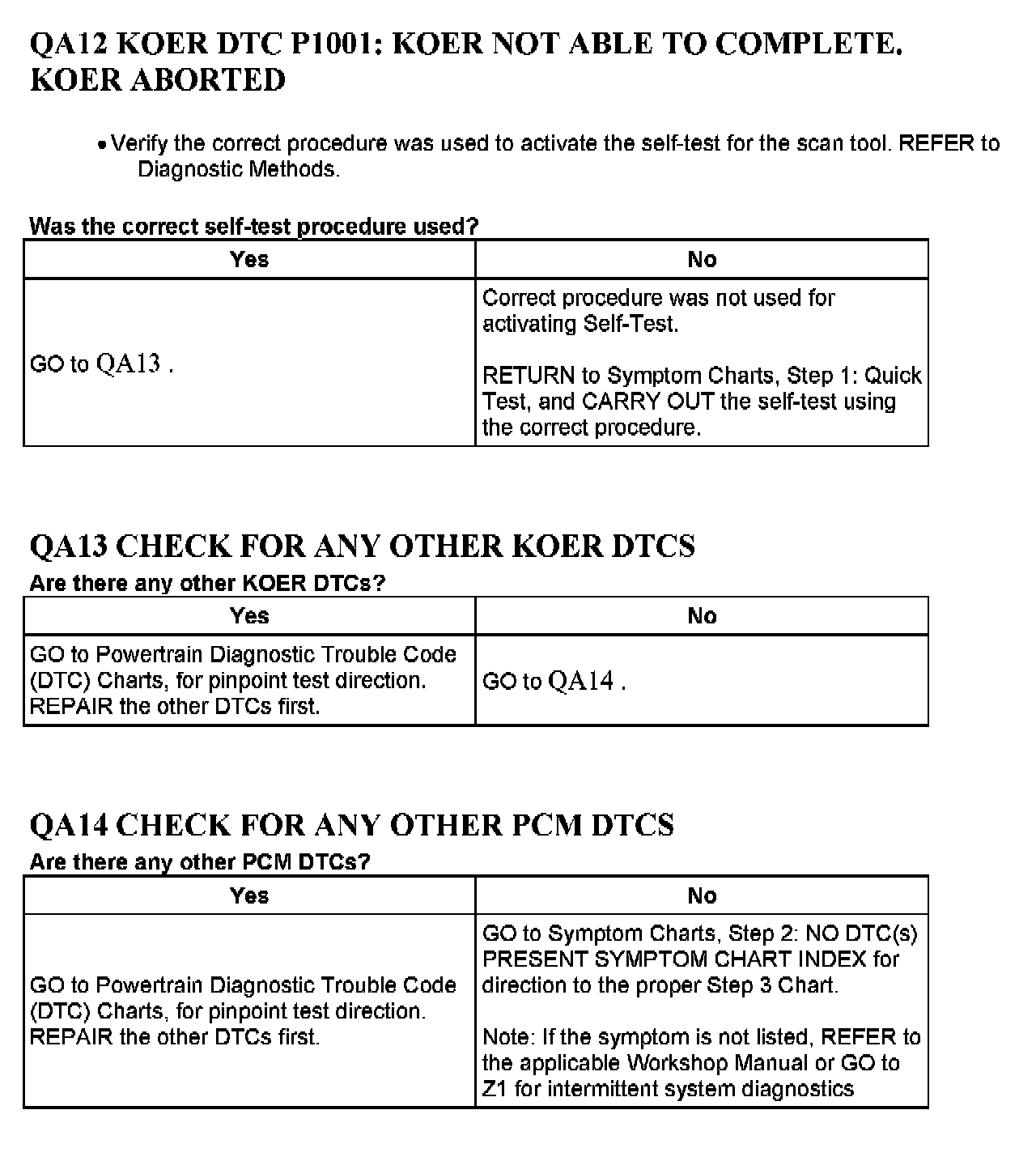

QA12 - QA14:
