Oxygen Sensor: Service and Repair

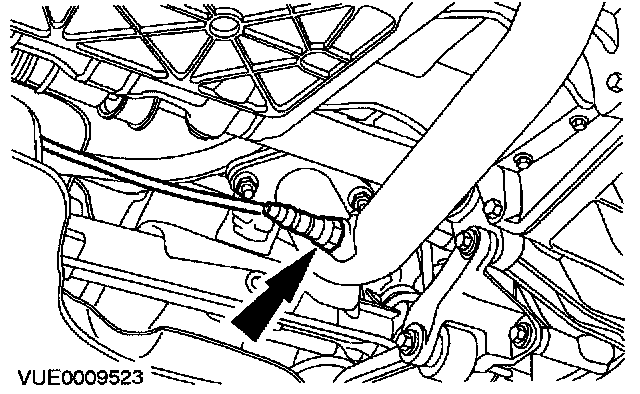

CATALYST MONITOR SENSOR

REMOVAL
1. Raise and support the vehicle.







2. Disconnect the catalyst monitor sensor electrical connector.







3. Remove the catalyst monitor sensor.

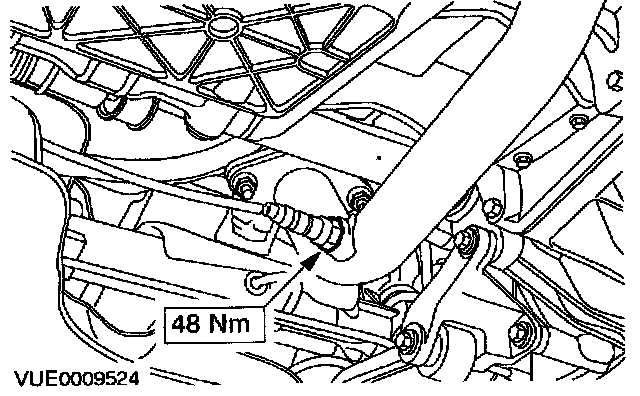

INSTALLATION







1. To install, reverse the removal procedure.
