Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
>>

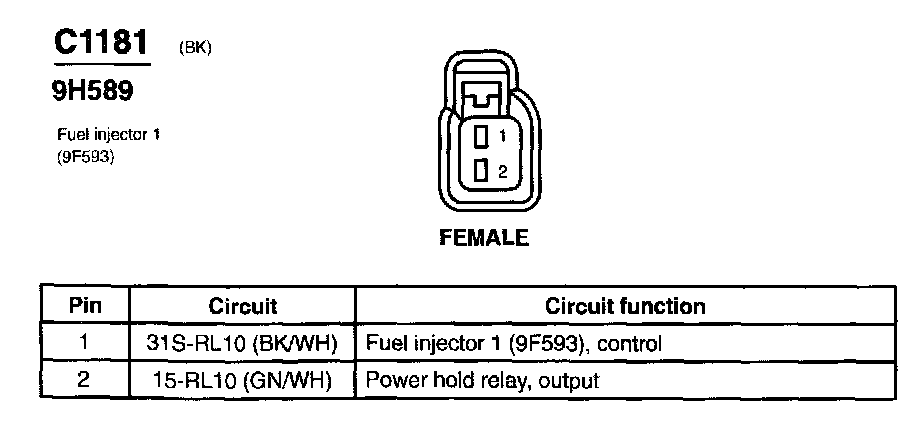

Fuel Injector 1
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

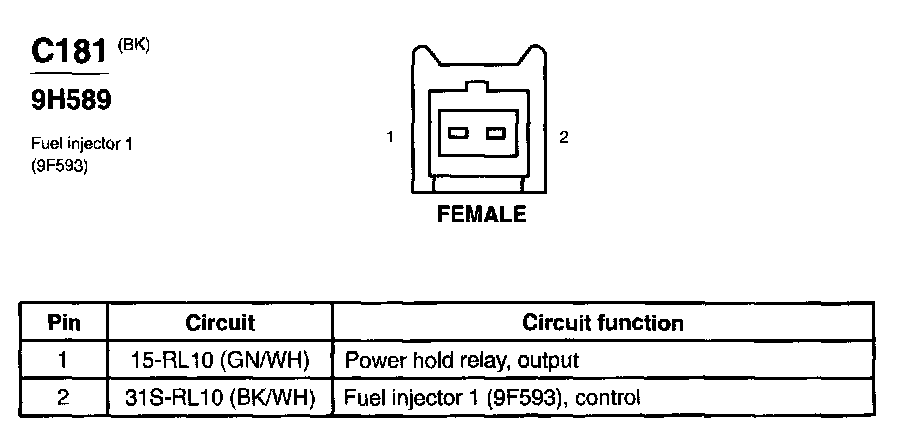

Fuel Injector 1
