Digital Transmission Range (TR) Sensor: Notes

Fig 1: Identifying Special Tool(s)
G03182058Courtesy of FORD MOTOR CO.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. It is not necessary to remove the range selector lever cable and bracket from the transmission.
  3. Remove the parts in the order indicated in the following illustration and table.

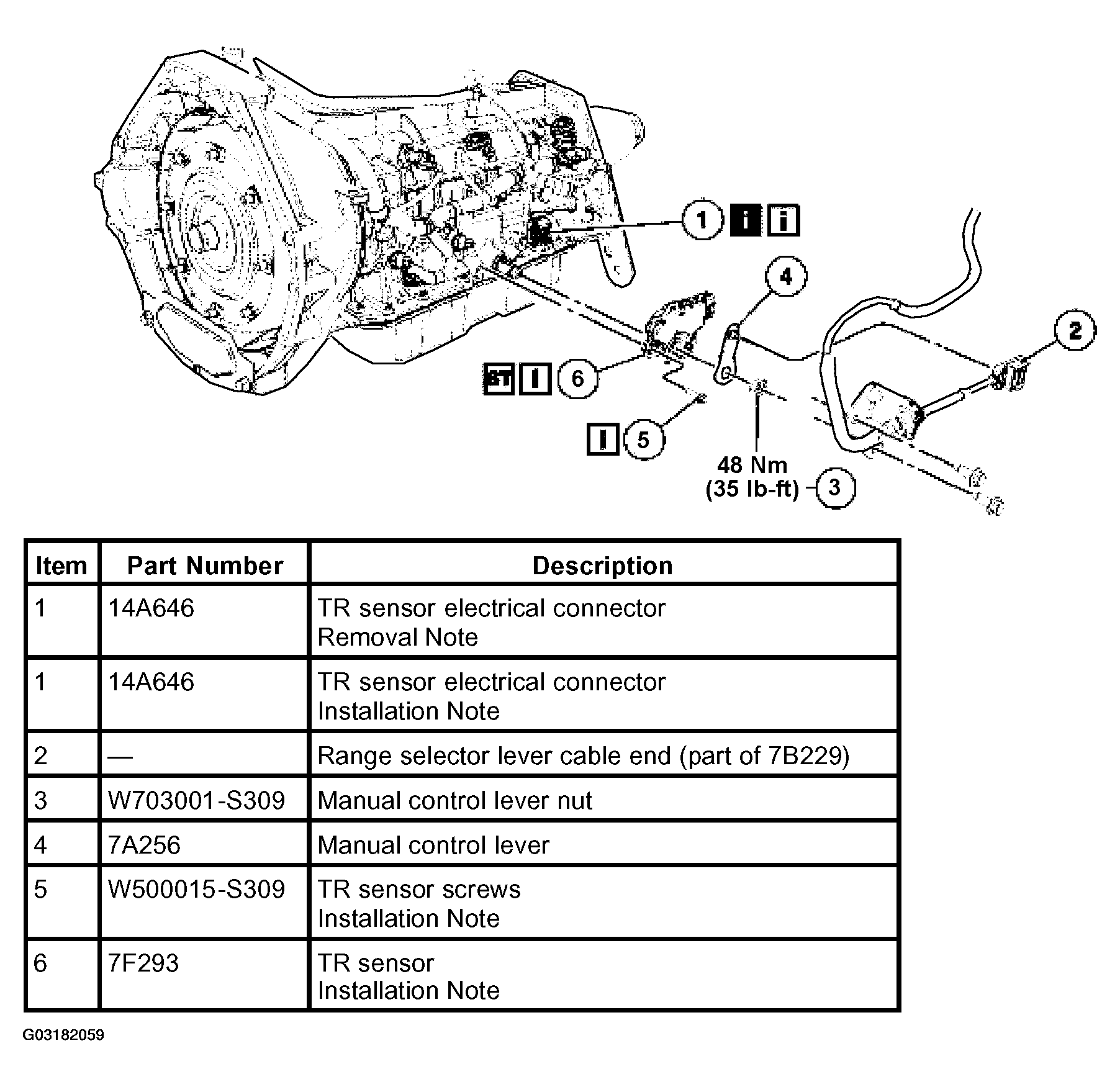

    Fig 2: Identifying Removal Order Of Digital Transmission Range (TR) Sensor
    G03182059Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
