Item 10: Multifunction Switch Removal Note

  1. Remove the screw, push the release tab and raise the switch.

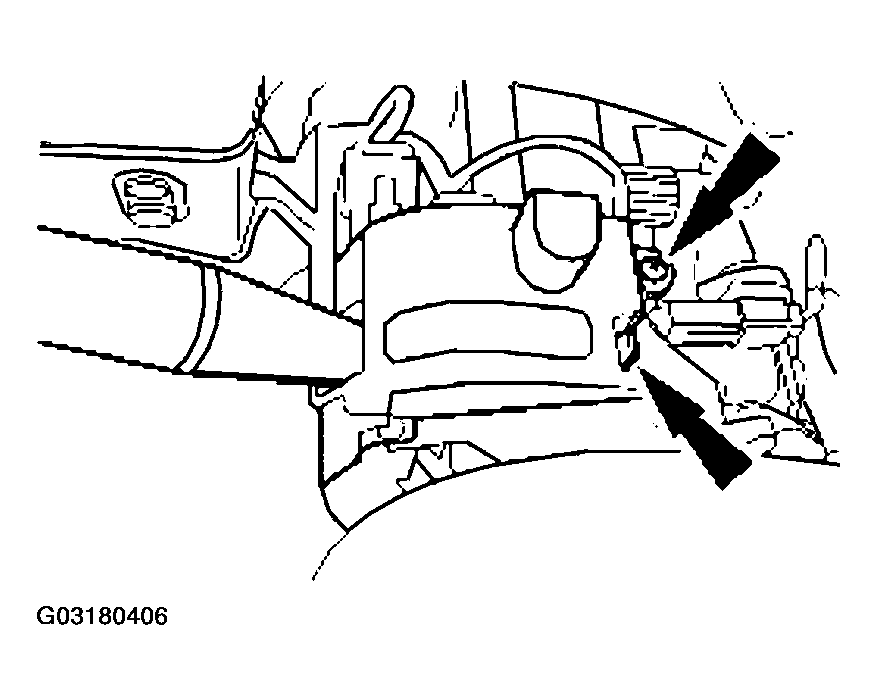

    Fig 1: Removing Screw
    G03180406Courtesy of FORD MOTOR CO.
