Powertrain Control Module C175b

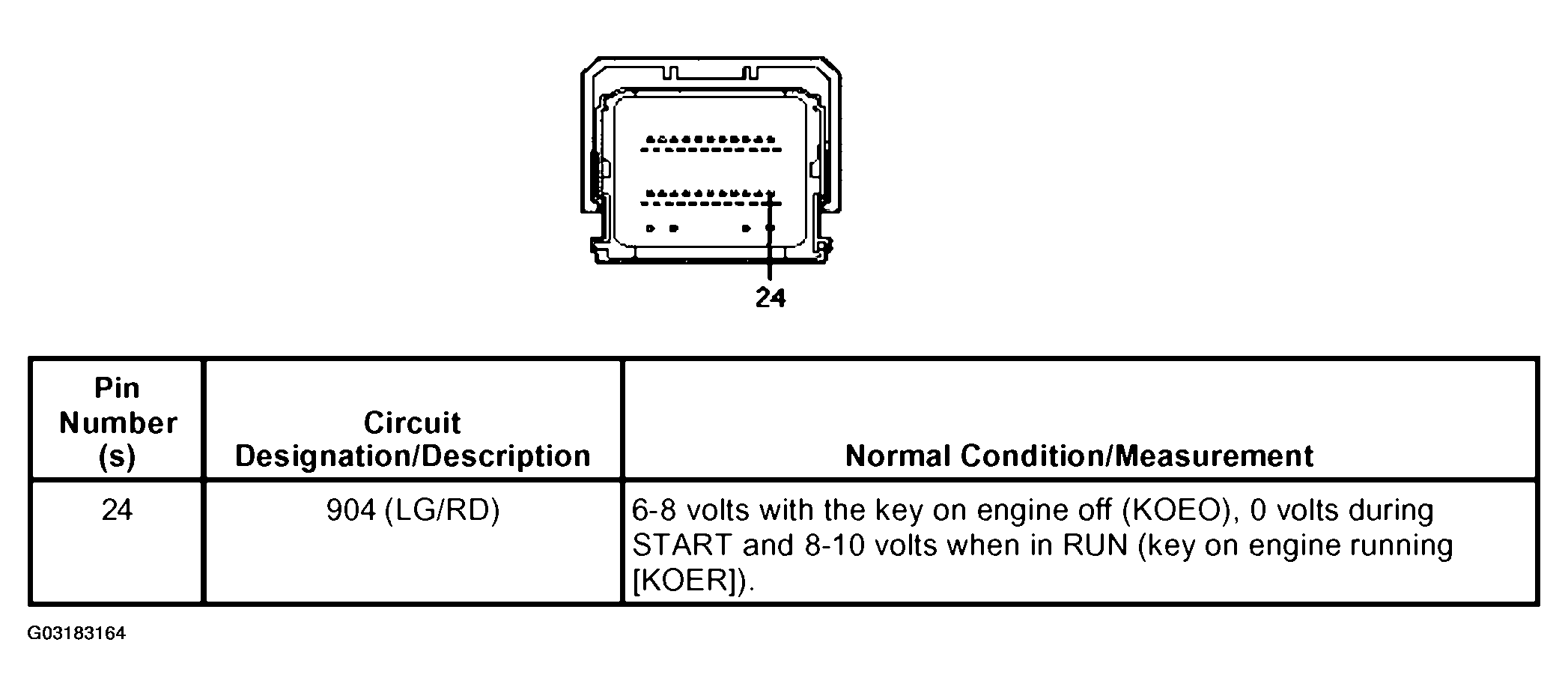

Fig 1: Identifying Powertrain Control Module C175B Connector Pins
G03183164Courtesy of FORD MOTOR CO.
