Radiator Cooling Fan Control Module: Service and Repair

Cooling Module





Material

1. Drain the cooling system.
2. Recover the A C refrigerant.
3. Remove the cooling fan.

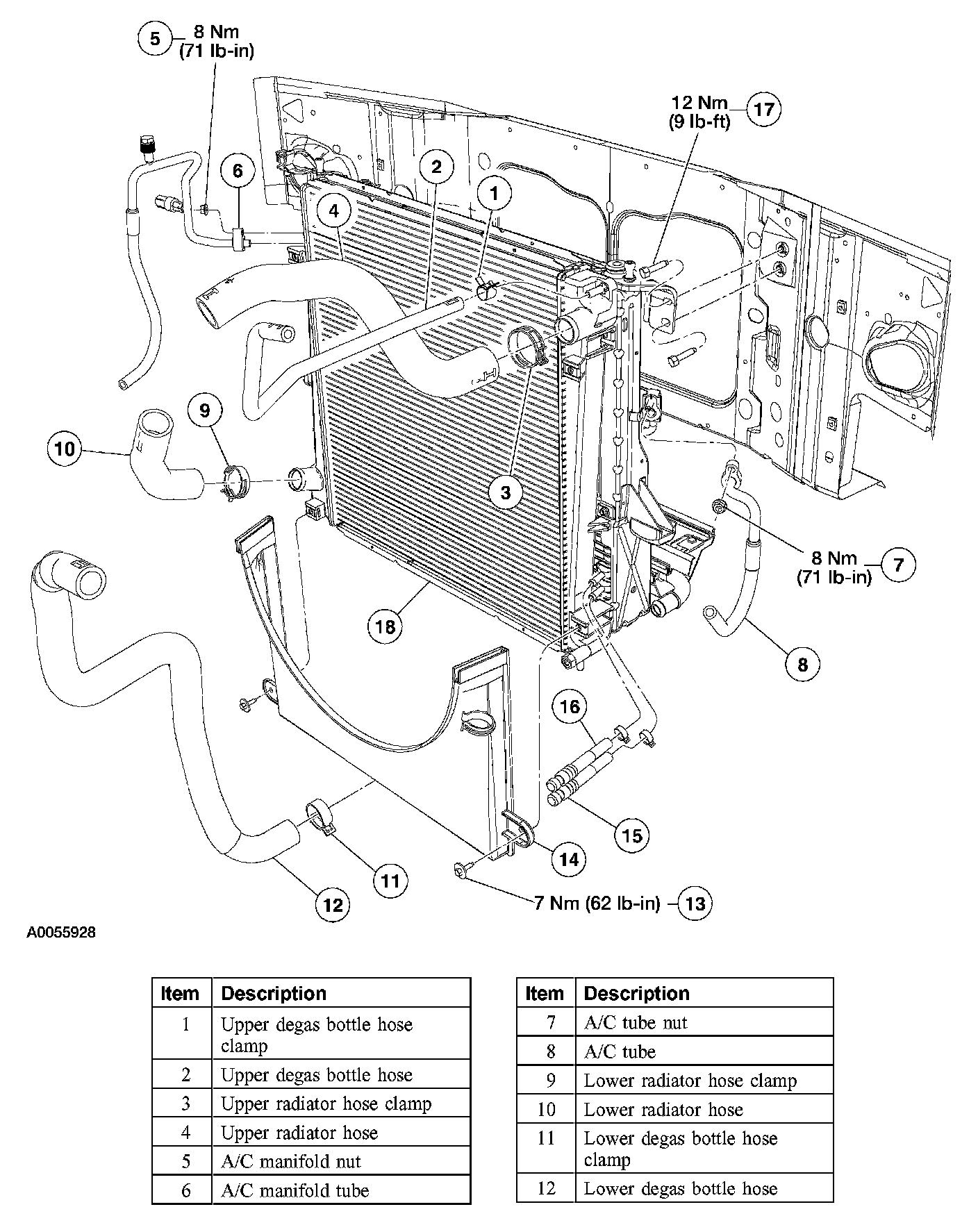

4. Remove the parts in the order indicated in the illustration and table.
5. To install, reverse the removal procedure.
6. Fill and bleed the cooling system.
7. Evacuate, leak check and charge the A/C system.
