Knock Sensor: Service and Repair

KNOCK SENSOR (KS)

REMOVAL
1. Remove the intake manifold.

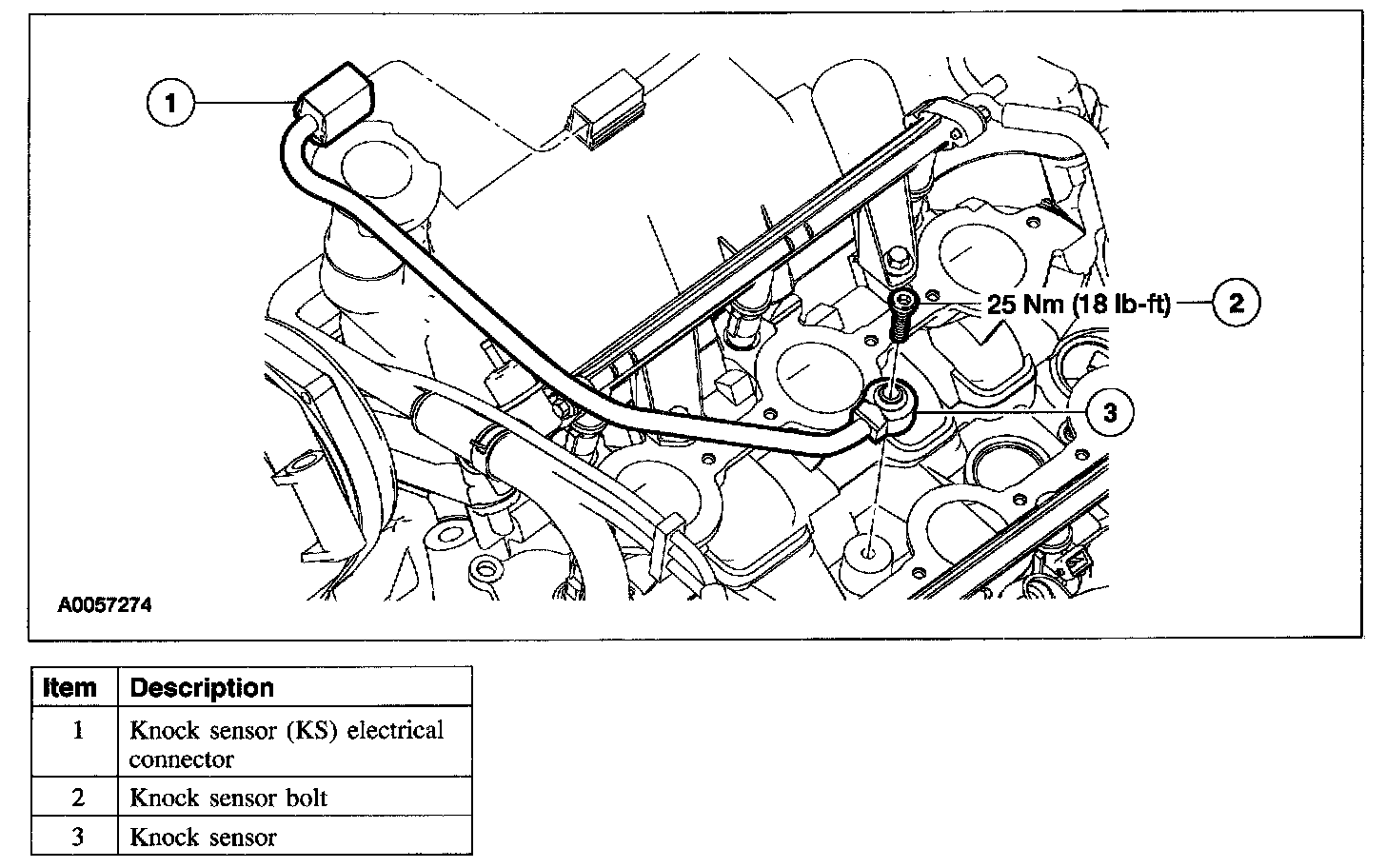

2. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
