Diagnostic Trouble Code Tests and Associated Procedures

DIAGNOSTIC TROUBLE CODE CHART

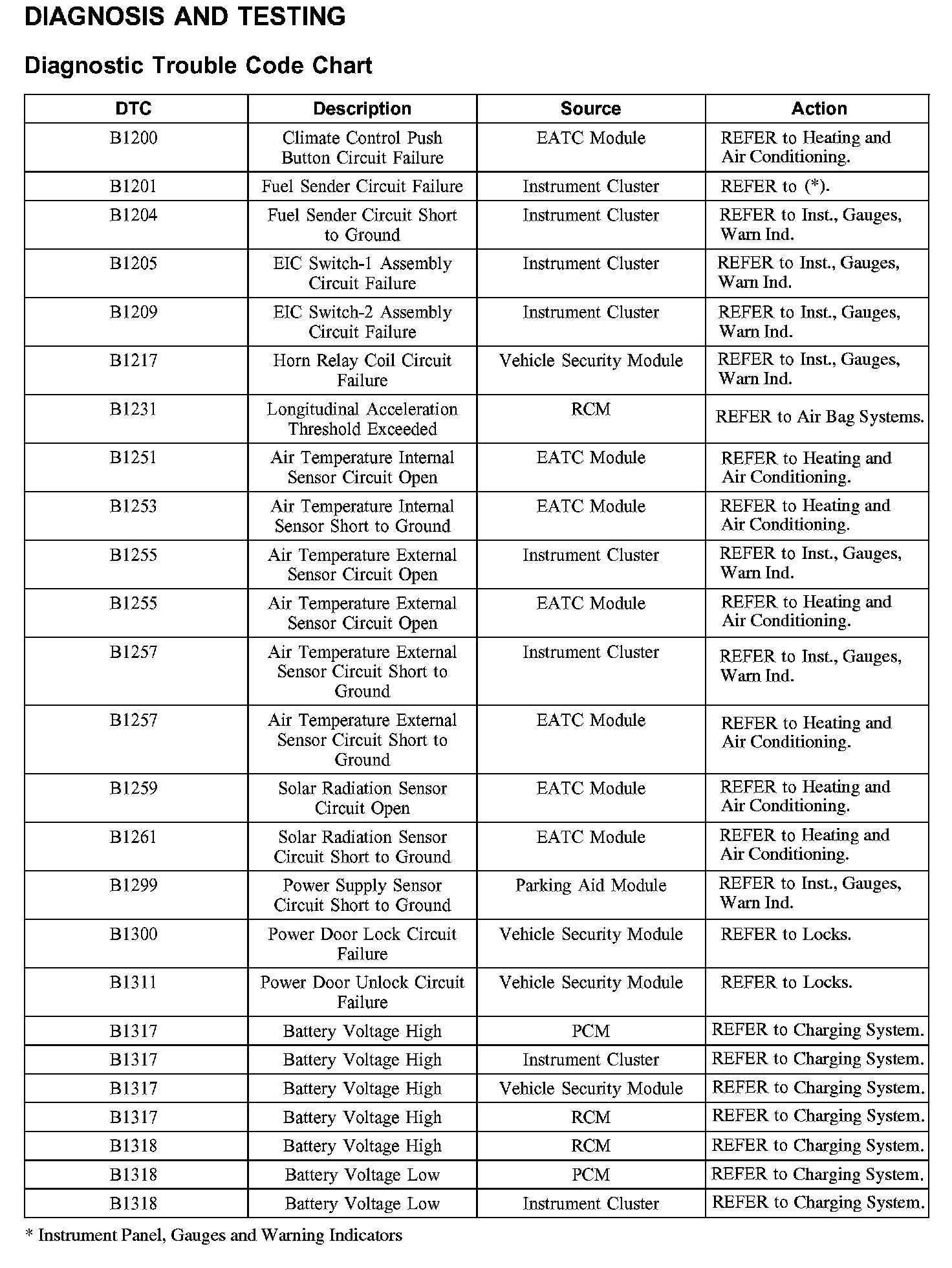

B1200-B1318:

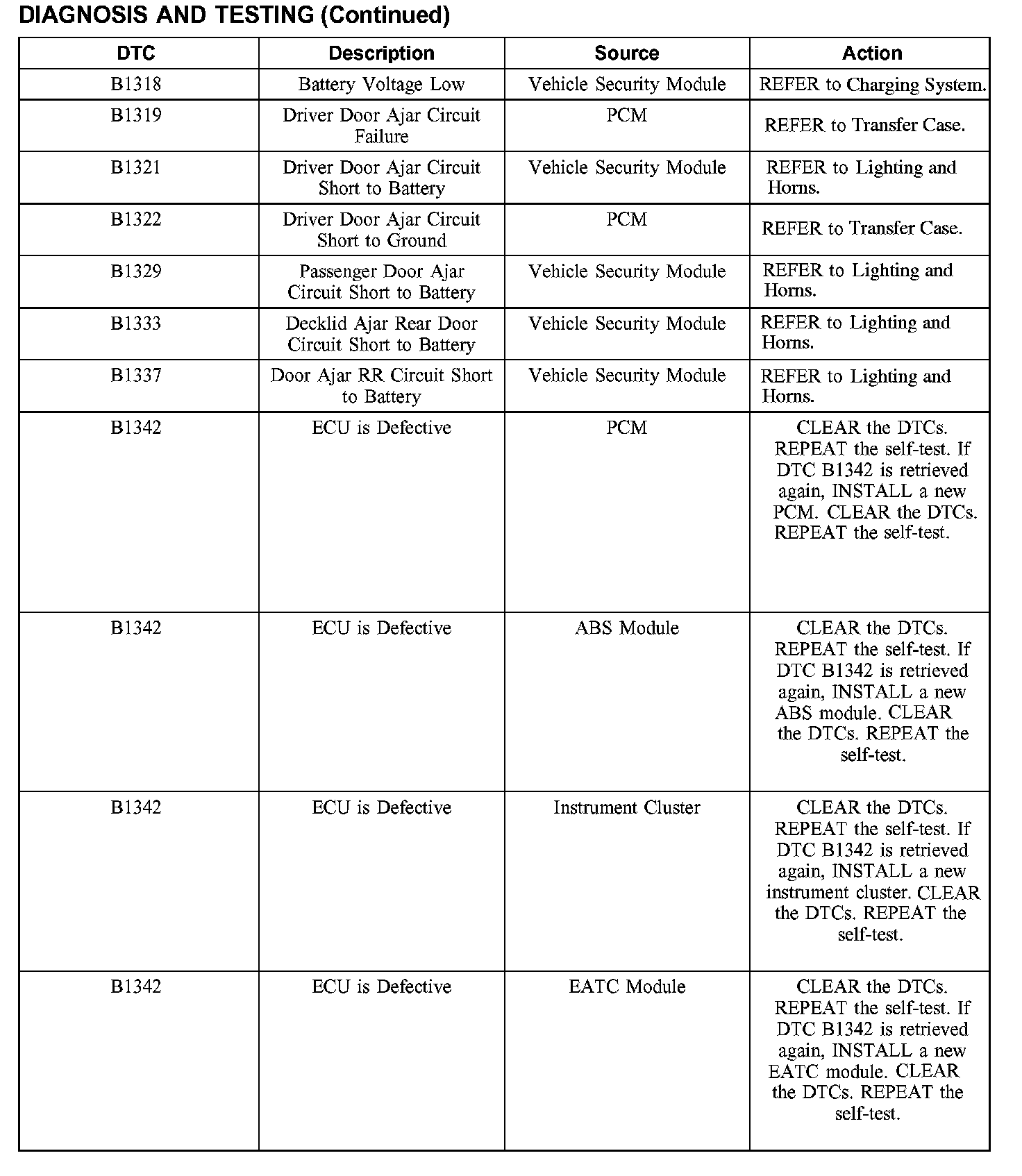

B1318-B1342:

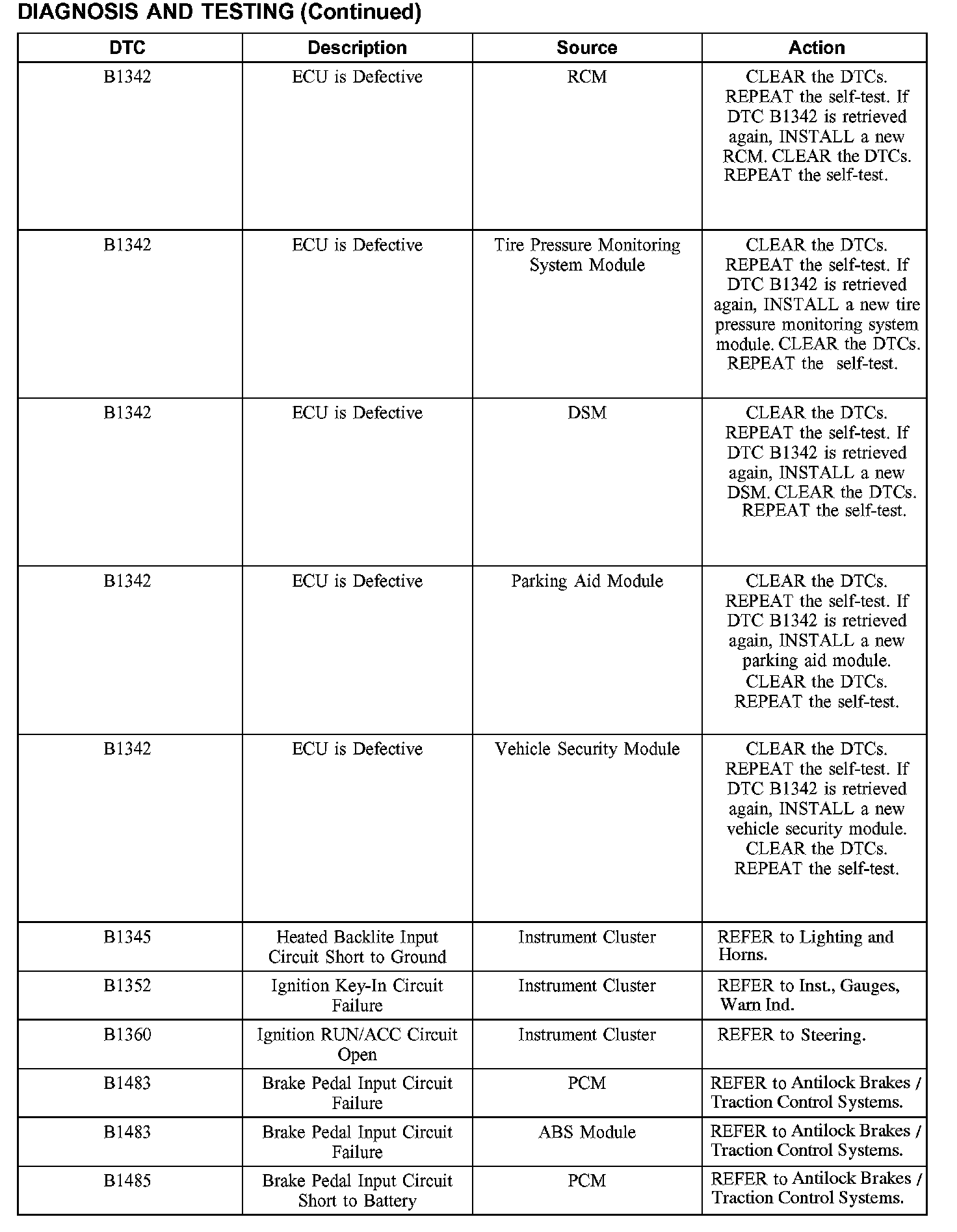

B1342-B1485:

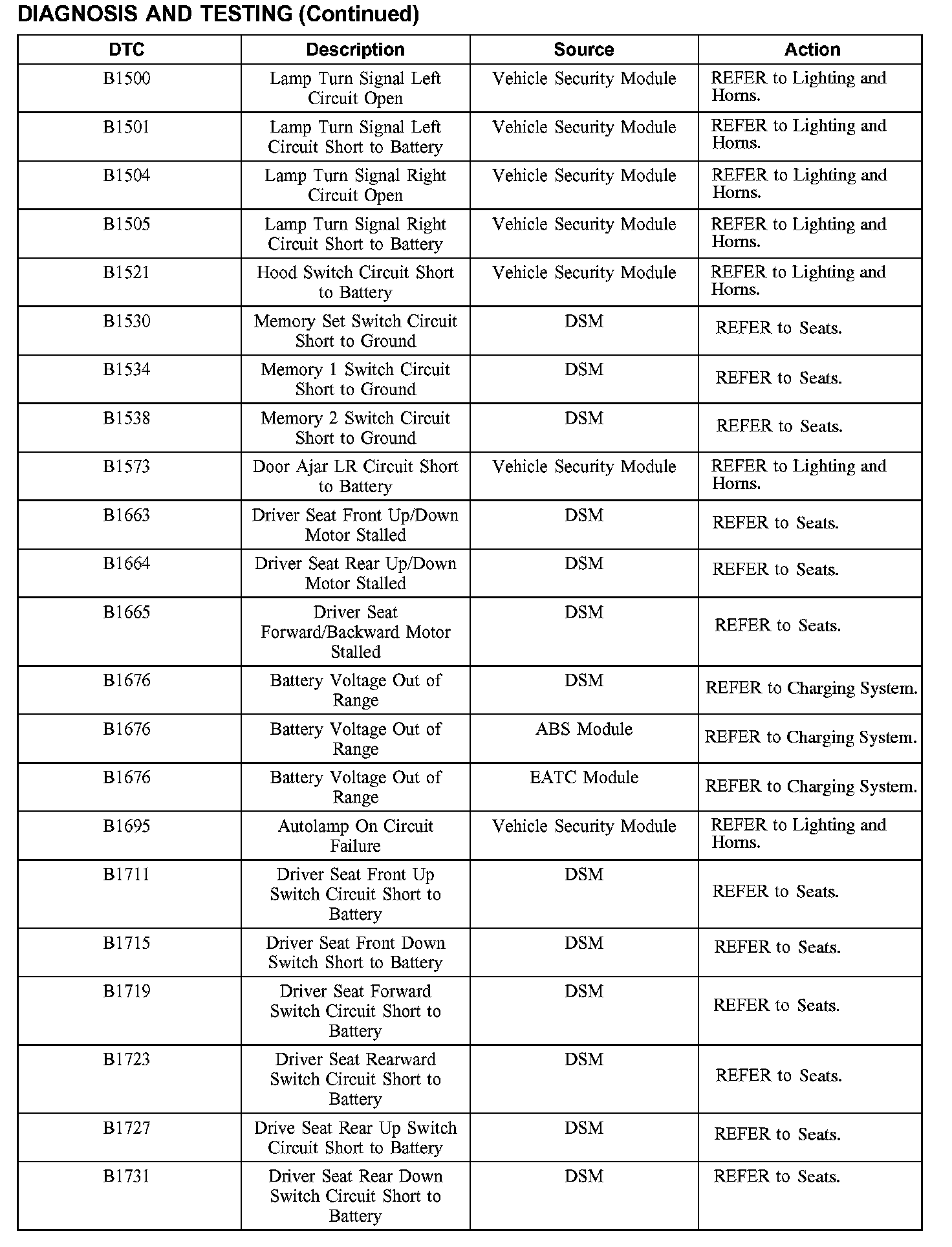

B1500-B1731:

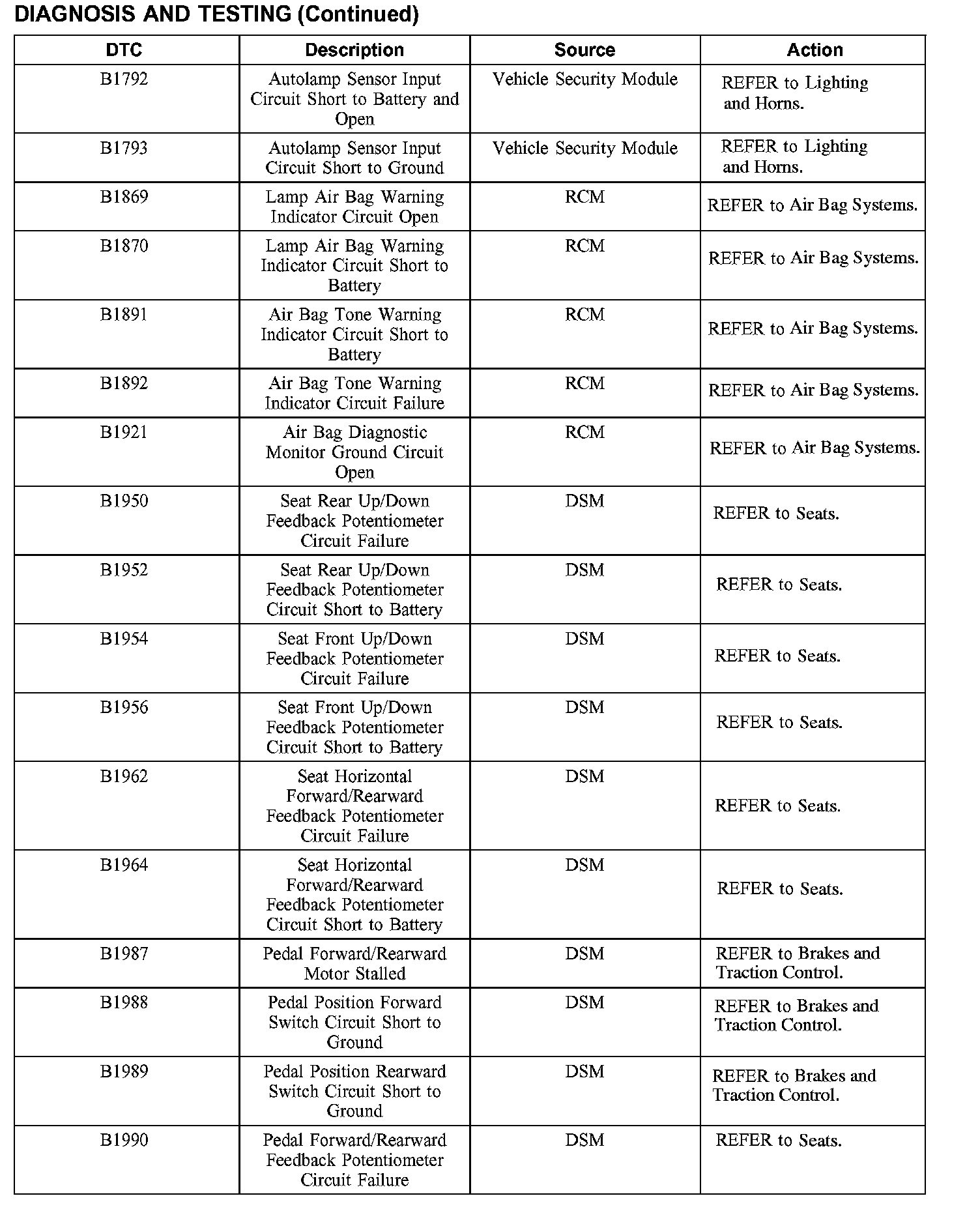

B1792-B1990:

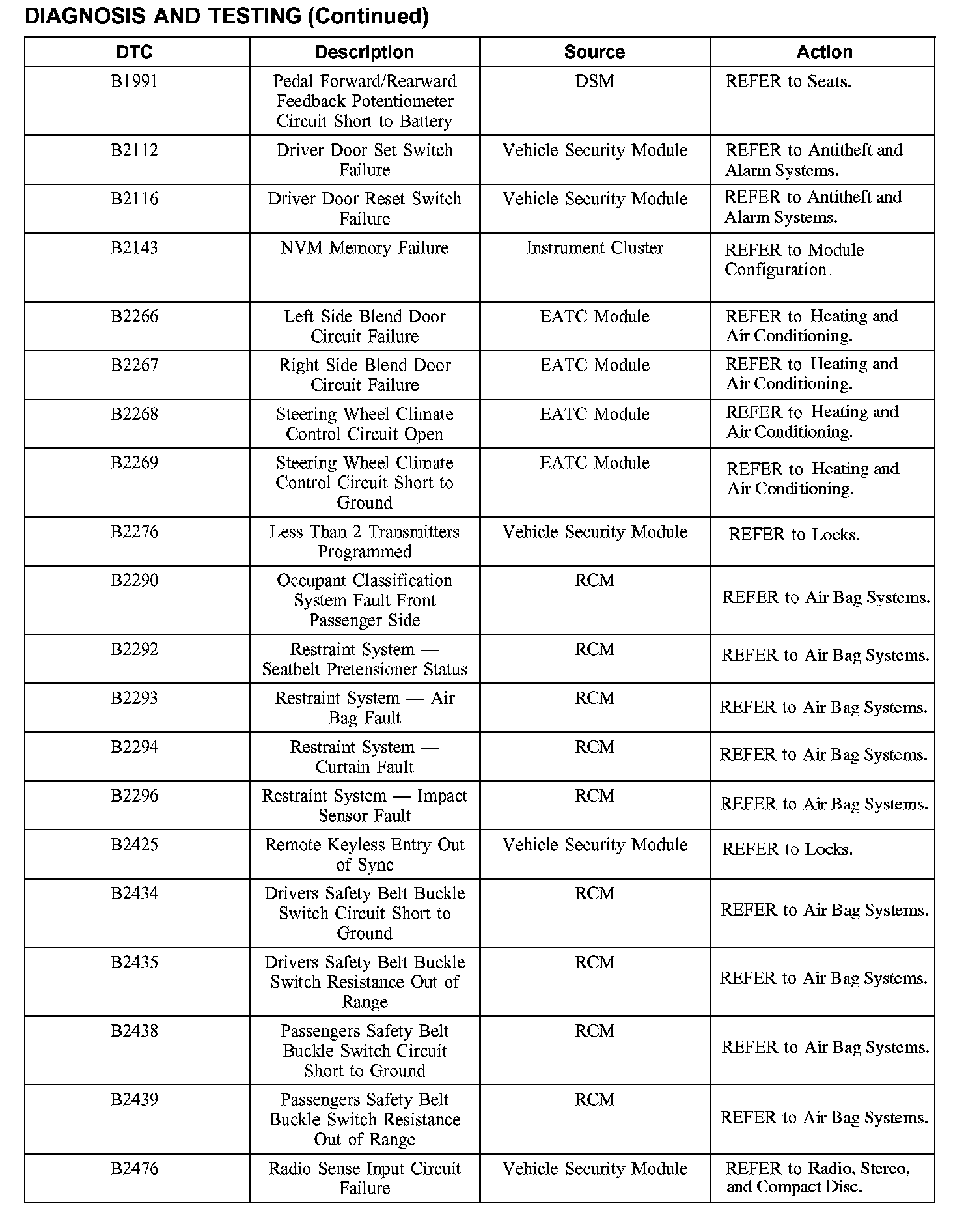

B1991-B2476:

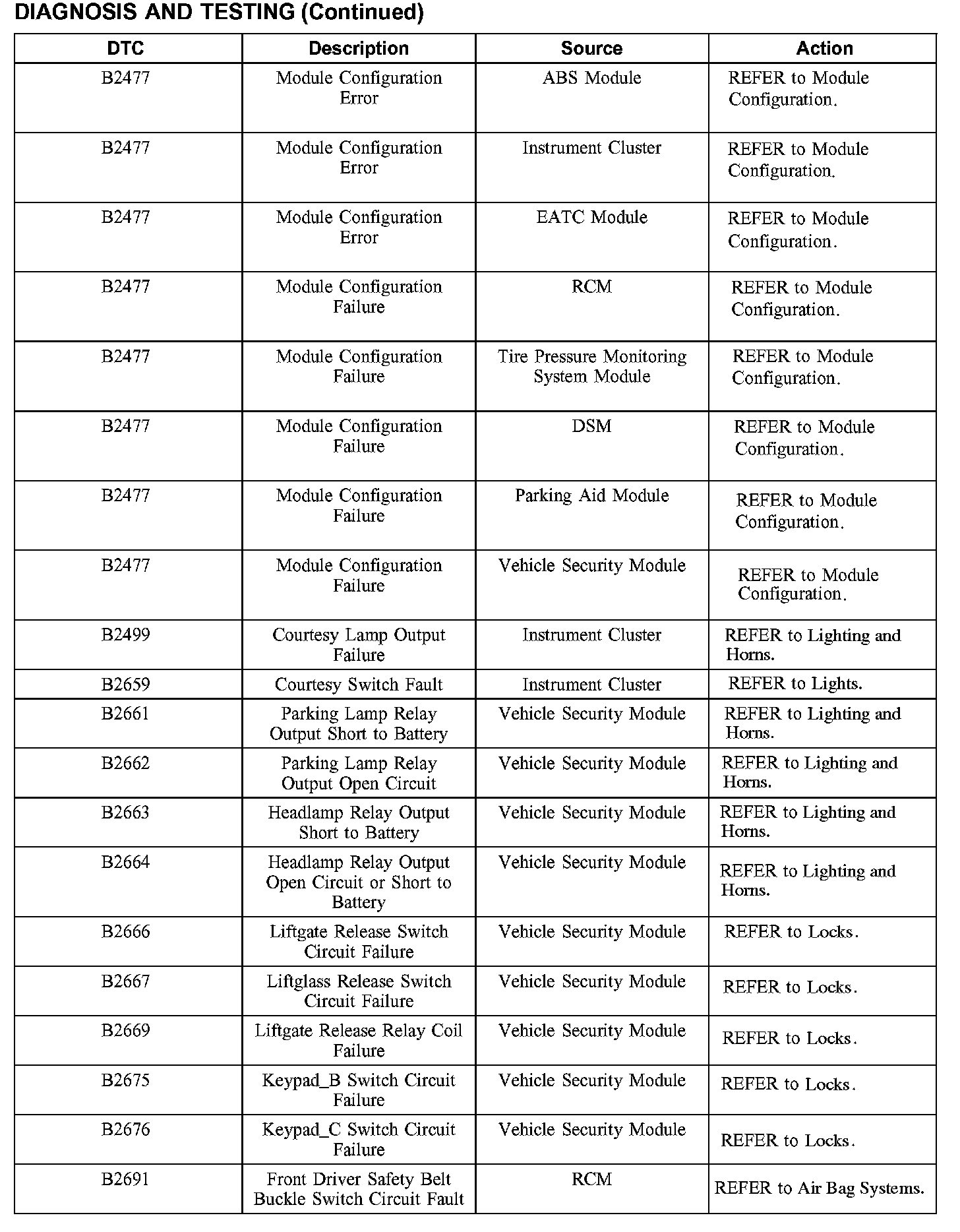

B2477-B2691:

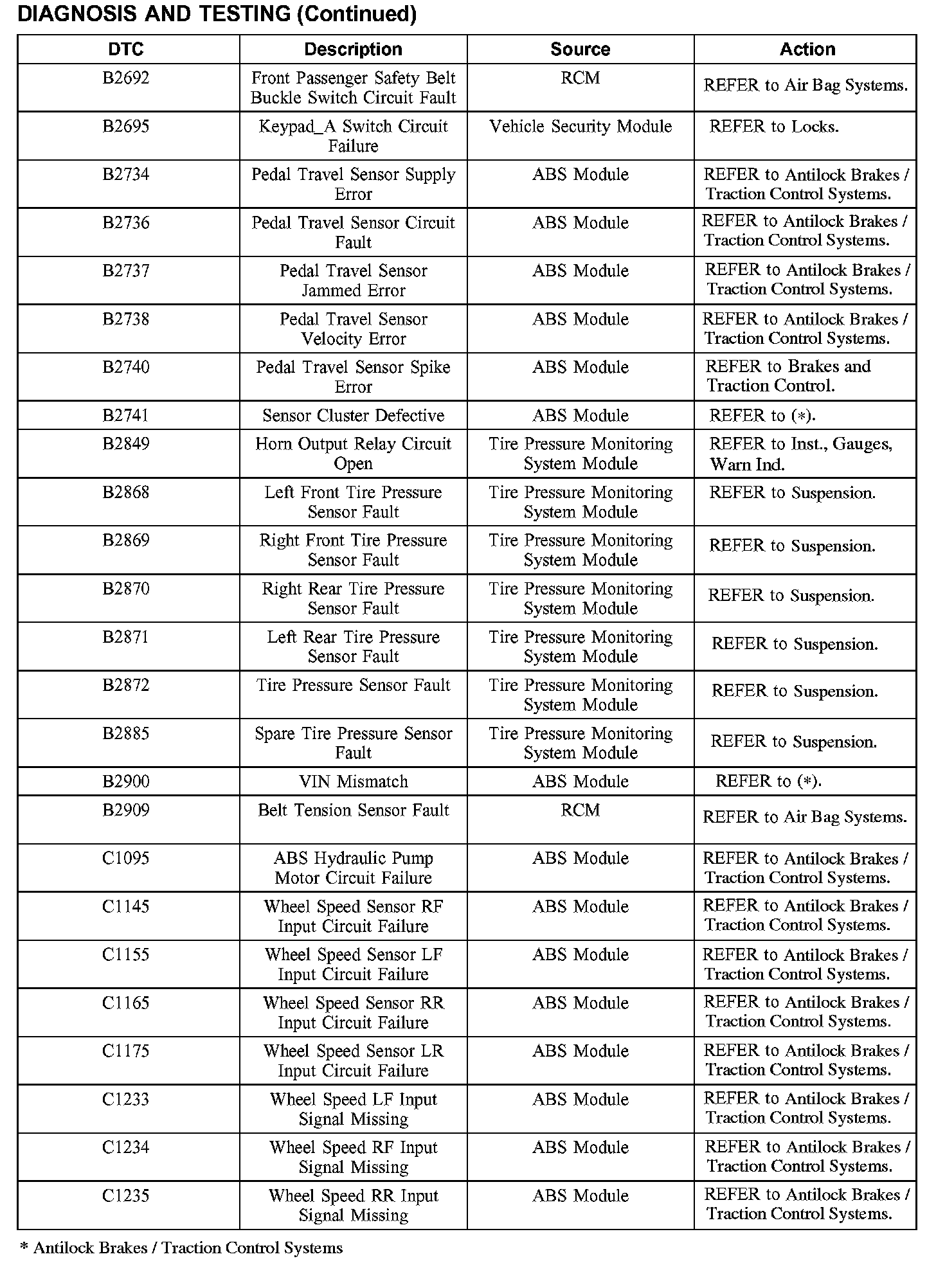

B2692-B2909 / C1095-C1235:

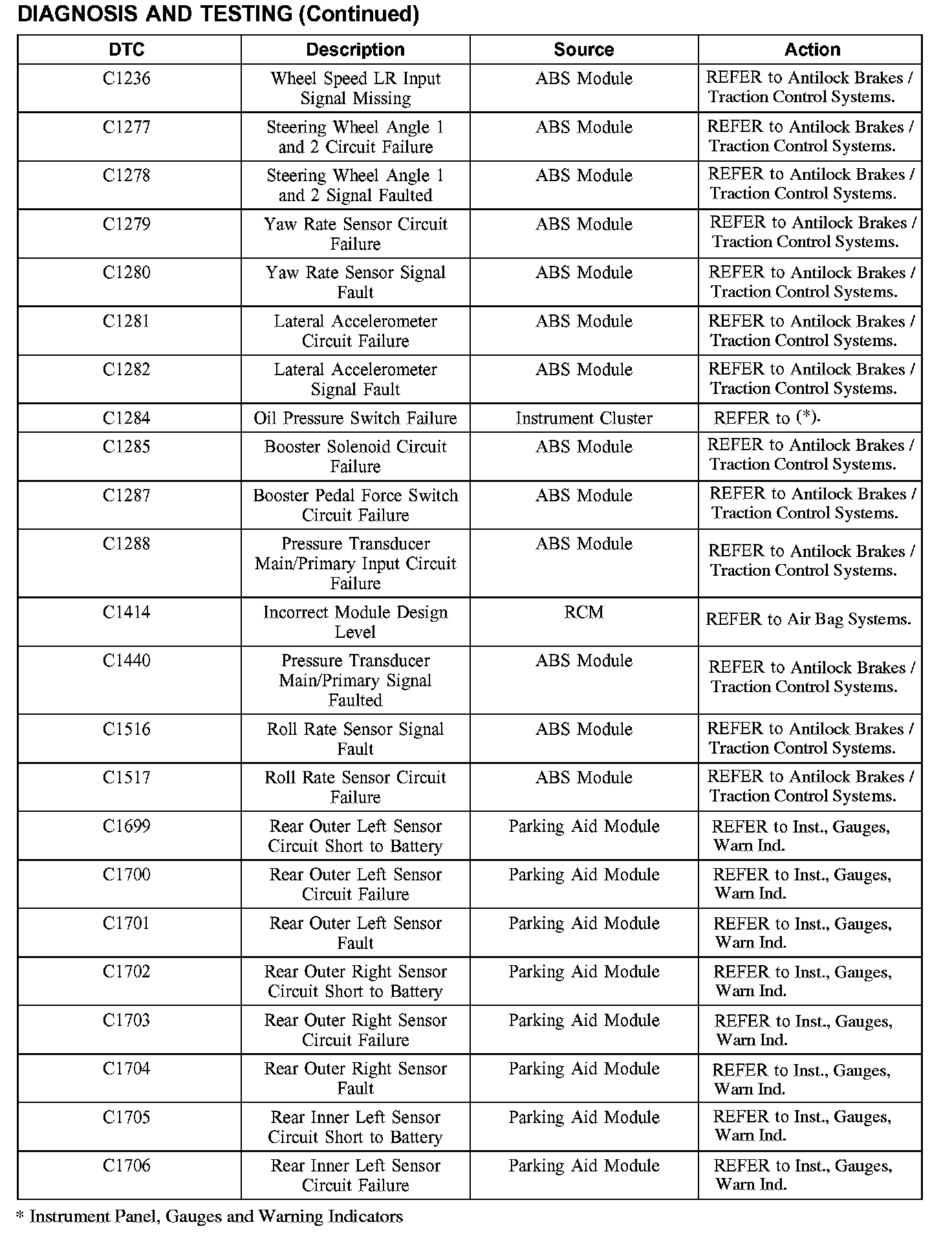

C1236-C1706:

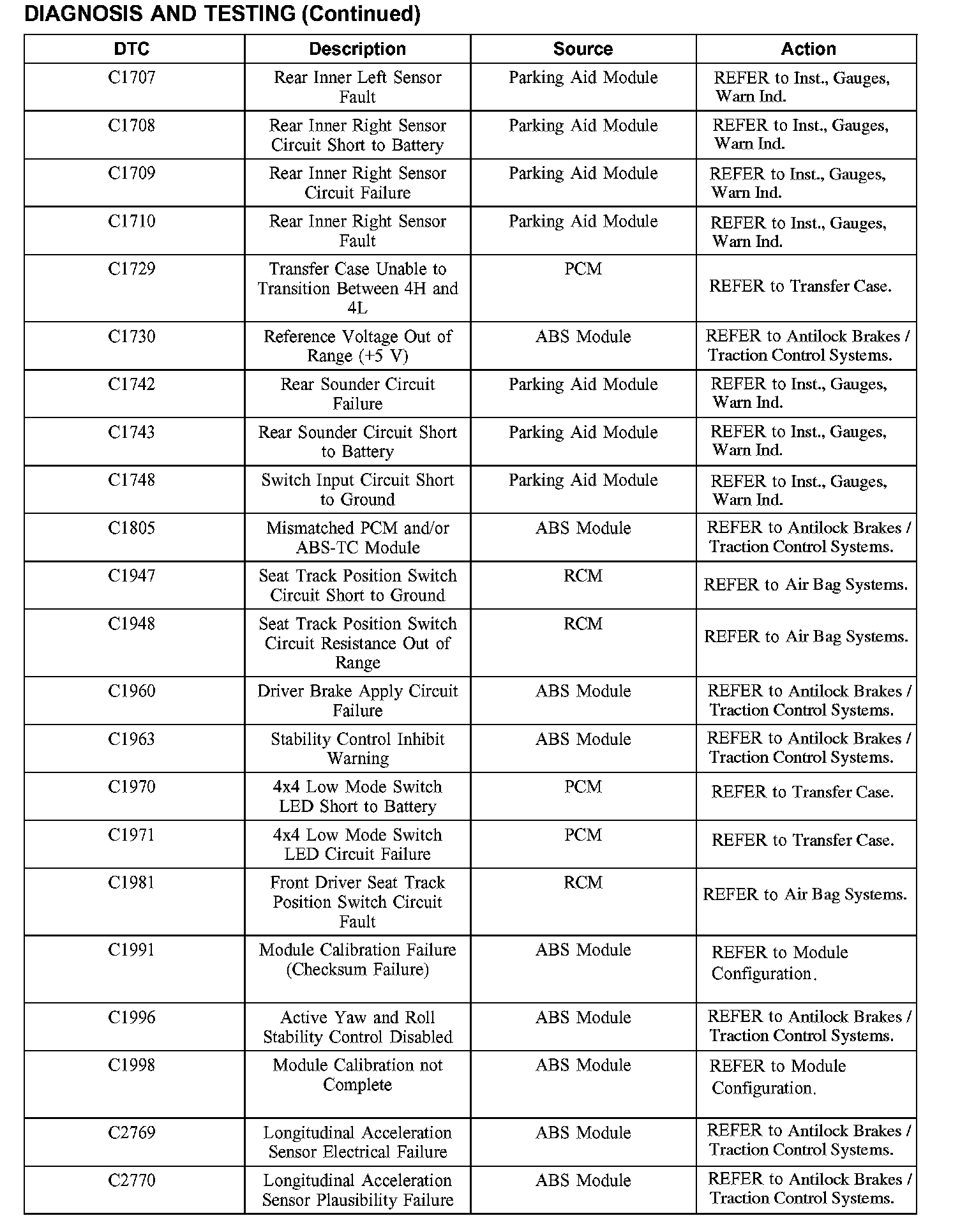

C1707-C2770:

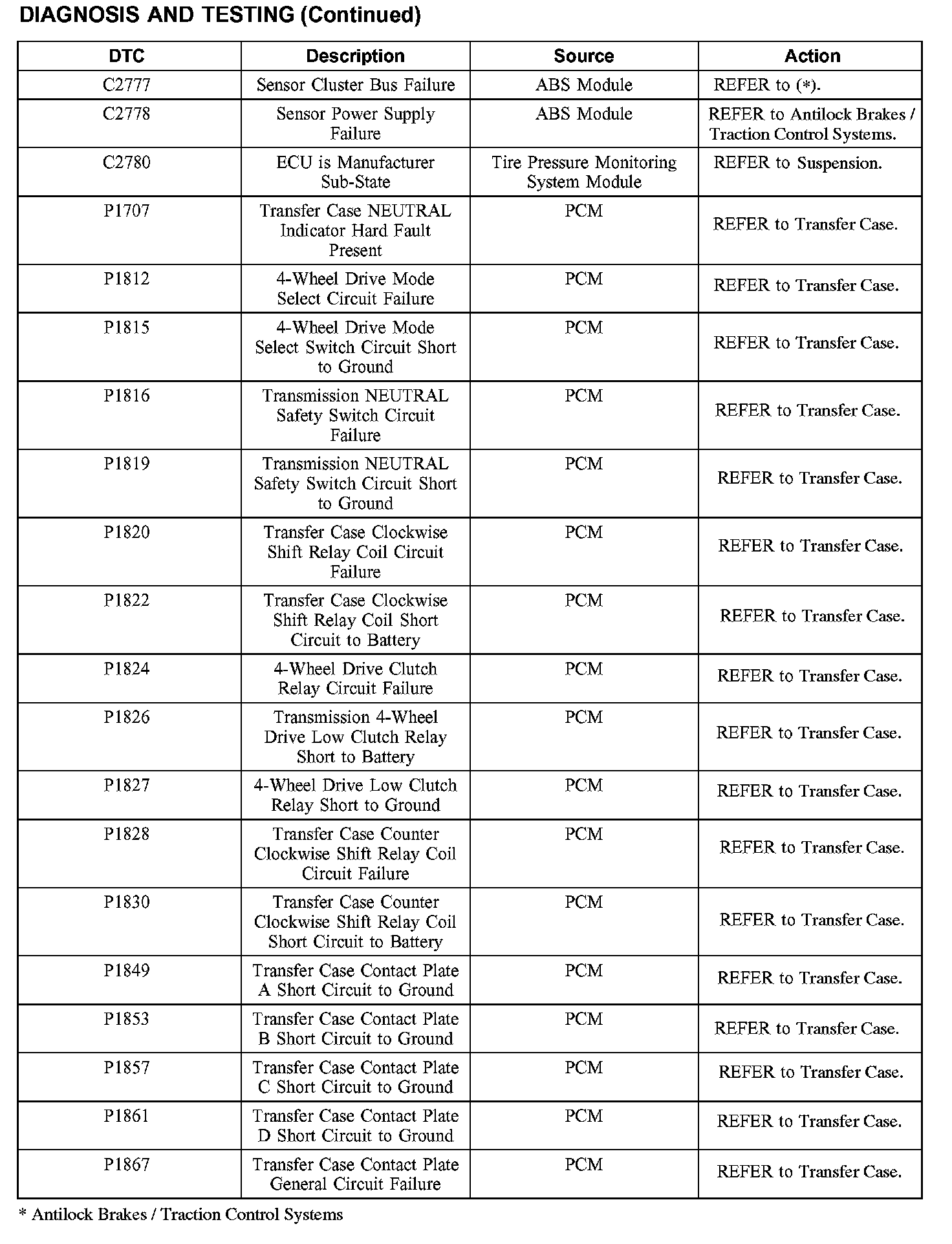

C2777-C2780 / P1707-P1867:

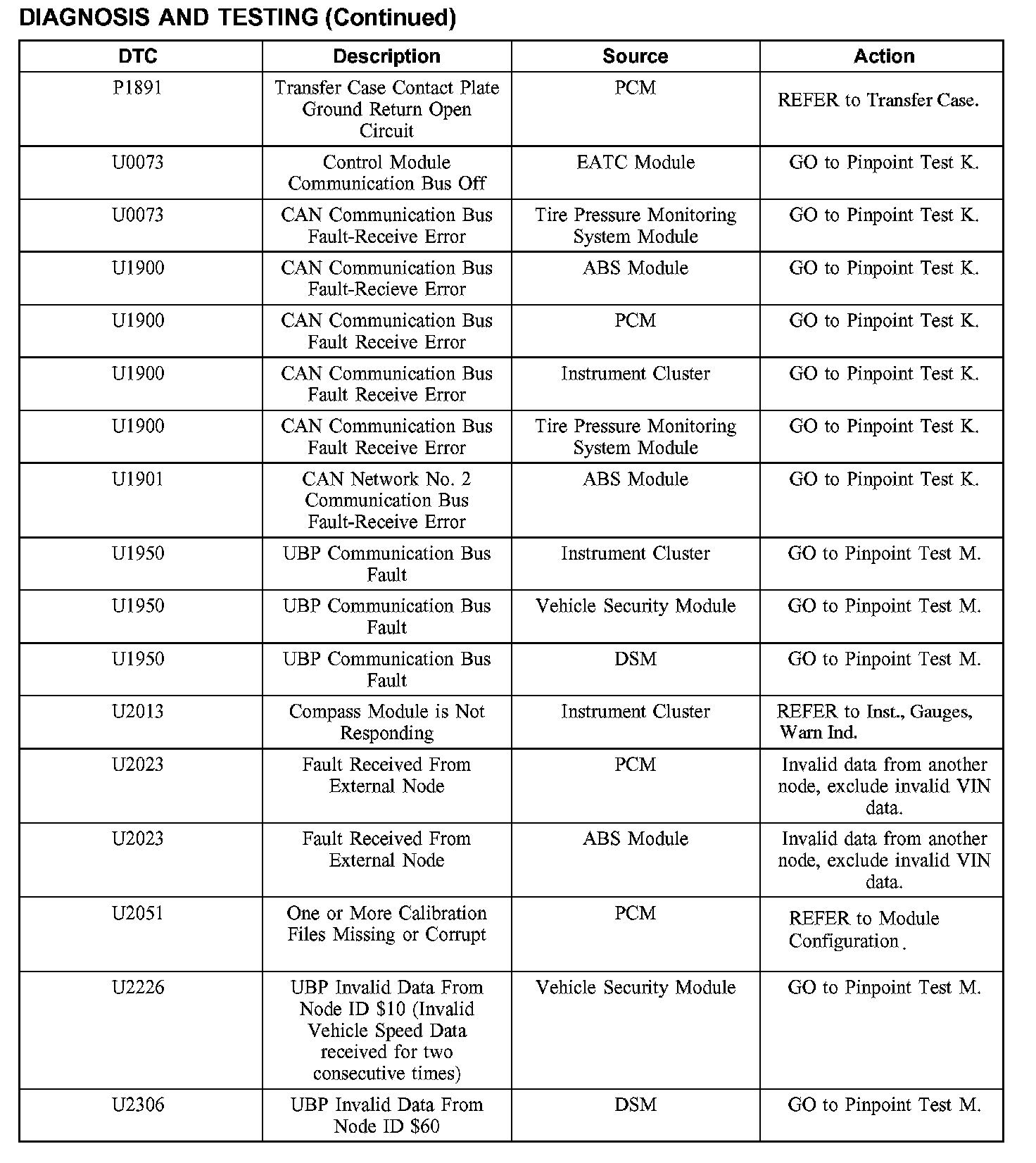

P1891 / U0073-U2306:
