Front

AUXILIARY CLIMATE CONTROL ASSEMBLY - FRONT

REMOVAL
1. Remove the overhead console.

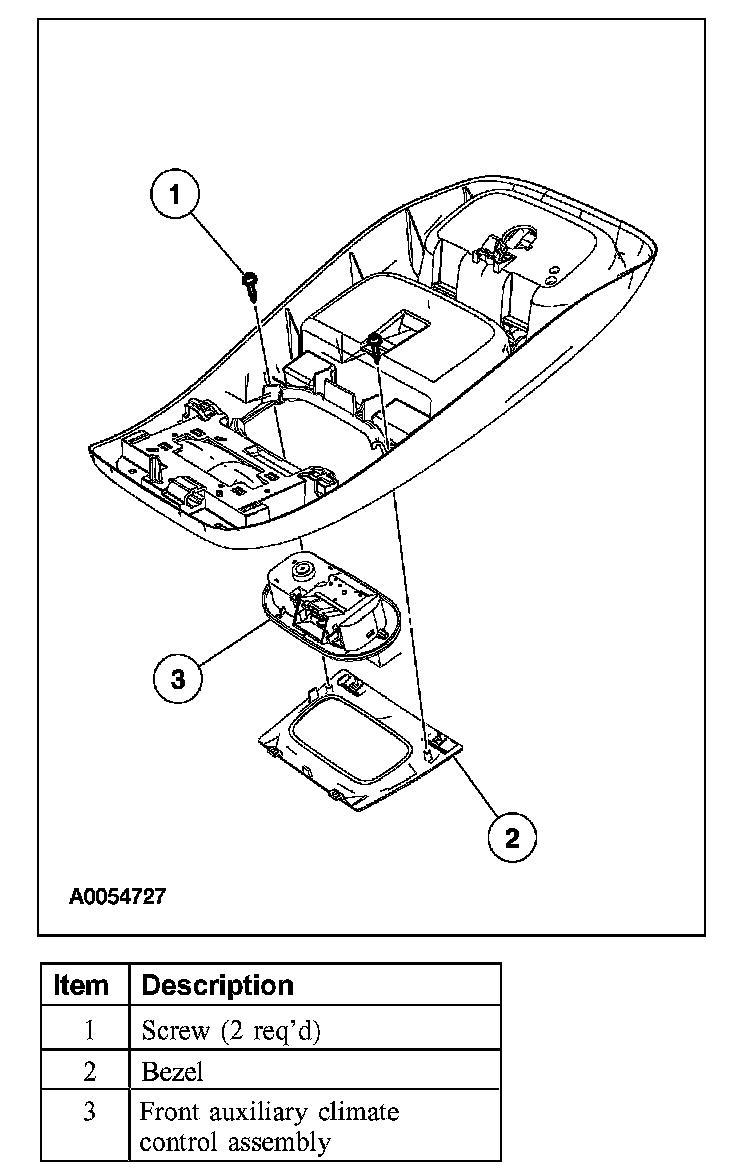

2. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
