Lower End

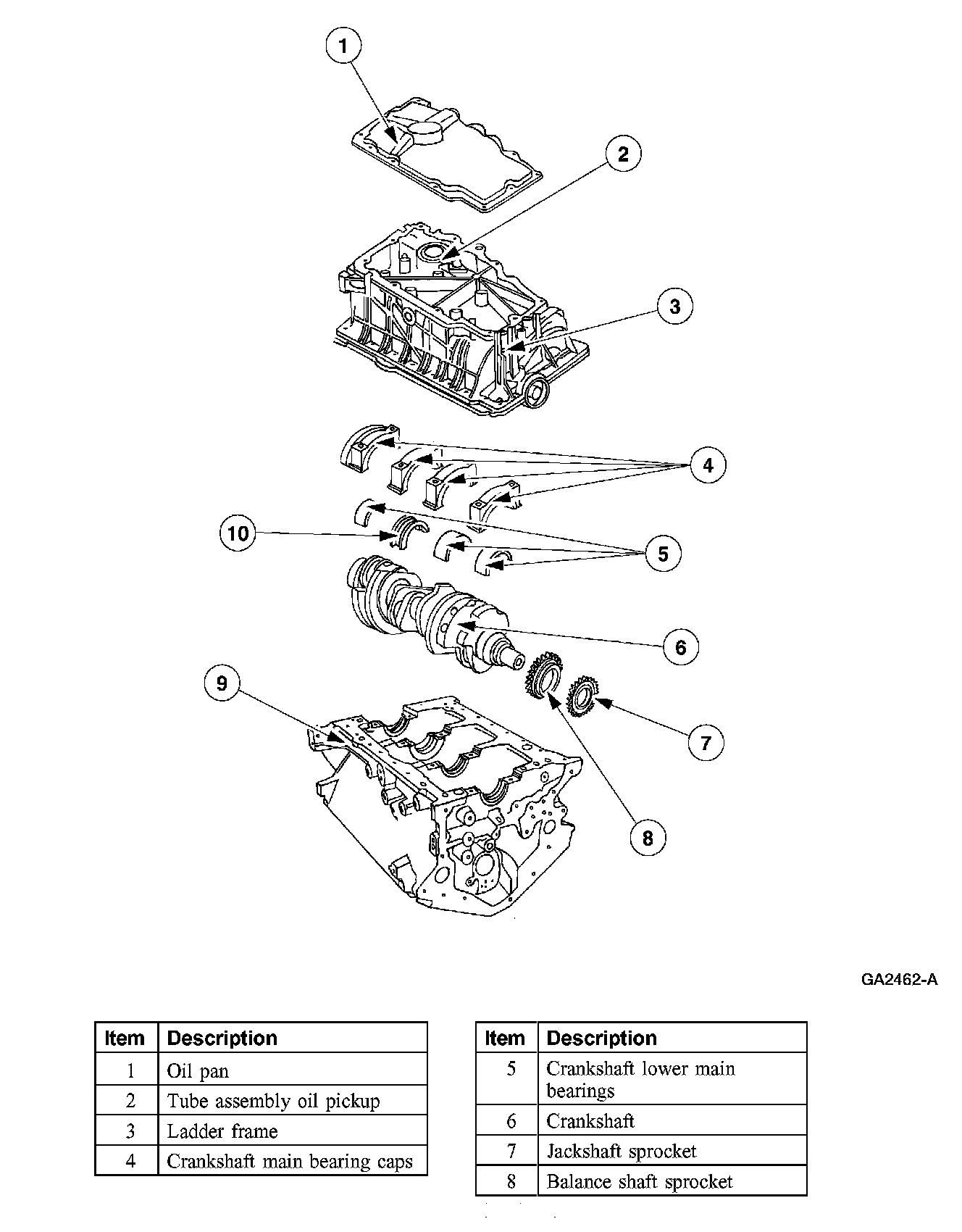

Lower End-4.0L SOHC Engine Part 1 Of 3:



Lower End-4.0L SOHC Engine Part 2 Of 3:



Lower End-4.0L SOHC Engine Part 3 Of 3:
